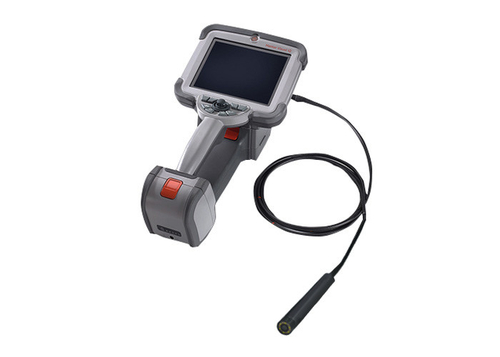

Industrial endoscope camera overview Industrial endoscope camera is a precision instrument used for non-destructive testing, widely used in internal structure inspection and fault diagnosis in various industries. It uses optical imaging technology and electronic signal processing to enable operators to observe the internal surface structure or working status of the object easily and accurately without destroying the surface of the object being inspected.   Working Principle   Optical Imaging Optical imaging is to use a lens to collect the image information inside the inspected object, and then transmit the image to an external display through a fiber optic light source. The specific steps are as follows: 1. Provide light source: provide light source illumination through a lamp tube. 2. Image acquisition: light passing through the inside of the object is imaged through a lens. 3. Image transmission: the imaged image is transmitted to an external display through an optical fiber. Electronic Imaging Electronic imaging is to use high-definition imaging devices such as CCD or CMOS to collect the image information inside the inspected object, and then transmit the image to an external display through a cable. The specific steps are as follows: 1. Image acquisition: The image information inside the inspected object is collected through imaging devices such as CCD or CMOS and converted into electrical signals. 2. Image transmission: The electrical signal is transmitted to an external display through a cable. The working principle of the industrial endoscope camera combines optical technology and electronic technology, allowing operators to observe the details inside the inspected object in real time. Different industrial endoscopes may use different imaging technologies and components according to their design and application requirements. Host image processing The host is equipped with a high-performance processor, such as the RK3588 high-performance processor, which adopts an advanced three-level superscalar processing architecture and is equipped with ARMCortex-A76 and Cortex-A55 cores to efficiently process image data transmitted from the camera. The system supports a variety of custom color modes, and users can adjust color temperature, color difference, hue, saturation and other parameters according to different usage environments to obtain the best viewing effect.   Common types From the perspective of the overall type of endoscope According to the characteristics of the manufacturing process, industrial endoscopes are generally divided into three types: optical hard tube endoscopes, fiber optic endoscopes, and video endoscopes, and the corresponding cameras are also different. The camera of the optical hard tube endoscope transmits images based on optical principles; the camera of the fiber optic endoscope transmits images with the help of optical fibers; the camera of the video endoscope uses CCD (CCD solid-state imaging devices are called CCD image sensors, which are constructed by arranging many pixels on a silicon substrate, converting the imaging light on it into electrical signals, and then transmitting them in the same way to obtain image signals) instead of the image guide beam to transmit image signals, which are then processed and converted into video signals by the image processing center. Application areas   As a high-precision optical instrument, industrial endoscope cameras are widely used in various industrial fields. The following are some of the main application areas of industrial endoscope cameras: Automotive industry In the automotive industry, industrial endoscope cameras are used to detect carbon deposits, wear, cracks and other problems inside the engine, helping maintenance personnel to accurately locate the fault point and improve maintenance efficiency. In addition, it can also be used to detect the status of components such as fuel systems, cooling systems, air conditioning systems and brake systems to ensure the performance and safety of the car. Aerospace field In the aerospace field, industrial endoscope cameras are widely used for internal inspection of key components such as aircraft engines and turbine blades. Due to the complex internal structure of aircraft and spacecraft and the high requirements for product quality and safety, the non-contact and high-precision characteristics of industrial endoscope cameras make them an indispensable inspection tool. Petrochemical field The petrochemical field involves a large number of equipment such as pipelines, storage tanks and pressure vessels, which may have defects such as corrosion and cracks during use. Industrial endoscope cameras can go deep into the equipment for observation and inspection, timely discover and solve potential safety problems, and ensure the normal operation of the equipment. Power and Energy Field In the power and energy field, industrial endoscope cameras are used in the maintenance of wind turbines to detect internal damage and corrosion of wind turbine blades to ensure the stable operation of wind turbines. In nuclear power plants, industrial endoscope cameras can be used to check the internal structure of the reactor and the condition of the fuel rods to ensure the safety and reliability of nuclear power generation. Machinery Manufacturing Industry The machinery manufacturing industry has extremely high requirements for product quality. Industrial endoscope cameras can be used to check internal defects such as castings and welded parts. Its high-resolution imaging and flexible controllability make every detail clearly visible, which helps to improve product quality and production efficiency. Rail Transit The maintenance and overhaul of rail transit equipment is also inseparable from industrial endoscope cameras. Its high imaging quality, flexible controllability, digital processing and portability make it widely used in the field of rail transit. In summary, industrial endoscope cameras play an important role in many industries, and their application areas are still expanding. With the continuous advancement of technology, the application prospects of industrial endoscope cameras will be broader. Conclusion Industrial endoscope camera is an efficient inspection tool. It uses advanced optical and electronic technologies to make the inspection of internal structures simple, intuitive and accurate. Whether it is used for the maintenance of industrial equipment or the quality control of products, industrial endoscope camera plays a vital role.

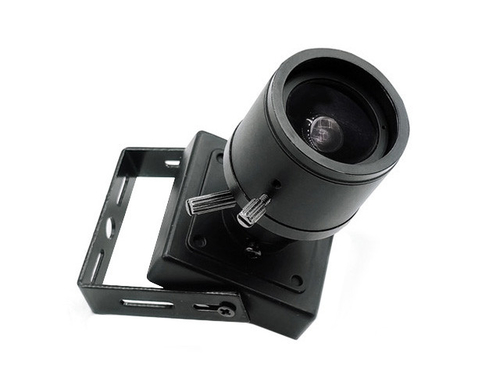

Mode of Operation•  Manual zoom: The photographer needs to manually adjust the zoom ring or related devices on the lens to change the focal length, so as to close or push the subject. The photographer needs to rely on his own experience and judgment of the image to complete the zoom operation.•  Autozoom: Usually controlled by the camera's software system, without the photographer to manually operate the zoom device. The phase opportunity automatically adjusts the focal length according to the preset conditions or the detection of the shooting object. Principle•  Manual zoom: relying on the photographer to turn the zoom ring of the lens, changing the relative position of the lens inside the lens through the mechanical structure, thus changing the focal length of the lens.•  Autozoom: The software detects the sharpness of the photographed object, and then automatically adjusts the focal length parameters. For example, when targeting a person or an object, the phase opportunity is analyzed to determine the appropriate focal length. CharacteristicManual zoom• High flexibility: the photographer can accurately and freely control the zoom process and amplitude according to their own creativity and actual needs, to achieve a unique shooting effect.• Complex operation: the photographer needs to have certain photography knowledge and skills, be familiar with the zoom operation of the lens, and need to spend time and energy to adjust the focal length during the shooting process.The response speed depends on the photographer: if the photographer is skilled, he can complete the zoom quickly; but if not, the timing may be missed. Automatic zoom• Easy to operate: Convenient for users who are not familiar with photography or need to snap quickly, the camera can automatically zoom process without manually adjusting the focal length.• Adaptability: The camera can quickly and automatically adjust to the right focal length according to the characteristics of the scene and object, with an advantage in some emergency or quick response situations.• May not be accurate: Autozoom is based on the preset algorithm and detection mechanism of the camera, which may not be able to fully meet the personalized needs of the photographer, and may not achieve the desired zoom effect in some complex scenes. Applicable sceneManual zoom• Photography creation: in the need to accurately control the picture composition, to show specific creative effects, such as shooting close-up, creating special visual effects, manual zoom can make the photographer better realize their own ideas.• Static scene shooting: For relatively static scenes such as scenery and static life, the photographer has enough time to manually adjust the focal length to obtain the ideal picture effect.Automatic zoom•Capthe moment: in the shooting of sports scenes, animals, emergencies and other need to quickly capture the moment, autozoom can adjust the focus length in time, not miss the wonderful moment.•Daily records: For ordinary users' daily photo records, the convenience of autozoom can allow users to shoot the pictures they want.

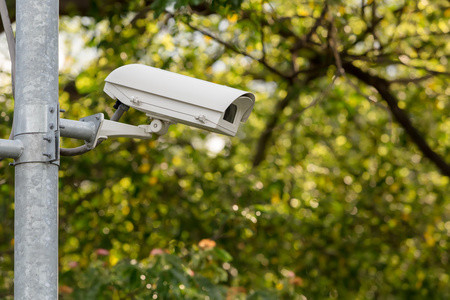

Strategies to improve night shooting effects When night shooting effects are not good, you can indeed consider using additional fill lights to improve image quality. Here are some effective strategies and suggestions: The size of the aperture Directly affects the amount of light entering the camera, thereby affecting the night shooting effect. A larger aperture (such as F/2.0) can increase the amount of light inlet and improve image quality, but it can also cause overexposure during the day and glare problems when entering and exiting the tunnel. The function of fill light Fill light Fill light is an effective tool to improve night shooting effects.Most driving recorders are equipped with LED fill lights. By correctly installing and adjusting the angle, the light reflected by the windshield can effectively avoid affecting the shooting effect. Selecting camera configuration Selection of high resolution and high performance cameras can also significantly improve night shooting effects.For example, a 1296p ultra-high definition camera can provide clearer images.  Optimize light conditions. Try to choose a place with sufficient light to shoot to improve the quality of night shooting. At the same time, keep the lens clean and clean the dirt regularly to ensure that the light can fully enter. Shooting Tips When shooting night portraits, it is recommended to use a constant light source instead of a flash, because the constant light source can provide better control and more natural light effects.

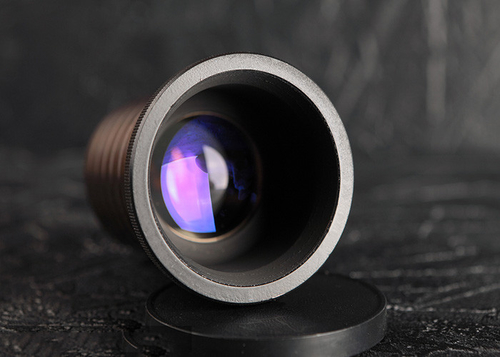

Overview of Optical LensesOptical lenses, also known as camera lenses or photography lenses, abbreviated as lenses, are an important branch of the optoelectronics industry and an indispensable component in machine vision systems. It is generally composed of precision hardware, plastic parts, lenses, apertures, drive motors, sensors, and other optical and electrical components, as well as a lens barrel. Optical lens is an important core component in optical imaging systems, which focuses the subject to be photographed onto film or image sensor chips by utilizing the principle of optical refraction. The resolution, contrast, and various aberrations of imaging are the standards for measuring the quality of optical lenses, which affect the quality of imaging, algorithm implementation, and effectiveness. Main parameters of optical lensesThe main parameters of optical lenses include focal length, viewing angle, aperture, resolution, etc. The focal length determines the magnification and field of view of the lens. The field of view refers to the range of scenes that the lens can capture. The aperture controls the amount of light entering the lens, while the resolution affects the clarity of the image. Classification of optical lensesOptical lenses can be classified according to different standards: Classified by focal length and viewing angleWide angle lens: With a viewing angle of over 90 degrees, it is suitable for capturing close range and wide range scenery, and can increase the spatial depth of the photographic image.Standard lens: With a viewing angle of around 30 degrees, it has a wide range of applications and is usually used for daily shooting.Telephoto lens: with a viewing angle of less than 20 degrees, the focal length can reach tens or hundreds of millimeters, suitable for capturing distant scenery.Zoom lens: The focal length of the lens is continuously variable, and the focal length can be changed from wide-angle to telephoto, providing greater flexibility.Pinhole lens: used for concealed observation, often installed in places such as ceilings or walls.Classified by structureFixed aperture fixed focus lens: simple structure, cheap price, but the aperture cannot be adjusted.Automatic aperture fixed focus lens: An automatic aperture adjustment function has been added to the fixed aperture fixed focus lens.Manual zoom lens: The focal length can be adjusted by manually adjusting the zoom ring of the lens.Automatic zoom lens: both focal length and aperture can be automatically adjusted, providing higher convenience. Electric three variable lens: aperture, focal length, and focus can all be adjusted, providing maximum flexibility.Application fields of optical lensesThe application fields of optical lenses are very wide, including mobile phones, cameras, car lenses, LiDAR, machine vision, AR/VR, etc. With the advancement of technology and the development of social economy, the application of optical lenses in these fields continues to expand and deepen, and the future will present a more intelligent development trend. In summary, optical lenses are complex and important optical systems, and their design and manufacturing have a crucial impact on imaging quality and application effectiveness. With the continuous advancement of technology, the design and production technology of optical lenses are also constantly developing to meet the growing market demand and technical requirements.

OverviewPrime lensFixed focus lens refers to a lens with only one fixed focal length, one focal segment and field of view, and no zoom function. Its design is simple, the focusing speed is fast, and the imaging quality is stable. Common fixed focus lenses have focal lengths of 24mm, 35mm, 50mm, 85mm, etc. High end photography enthusiasts also choose fixed focus lenses with long focal lengths of 200mm, 400mm, 600mm, 800mm, etc. Zoom lensA zoom lens is a camera lens that can change the focal length within a certain range to obtain different widths of field of view, different sizes of images, and different ranges of scenery. It can change the shooting range by adjusting the focal length without changing the shooting distance, which is beneficial for image composition. Common zoom lenses in daily life include wide-angle focal lengths (such as 11-24mm, 14-24mm, 16-35mm, etc.), standard focal lengths (such as 24-70mm, 24-85mm, 24-105mm, etc.), and telephoto focal lengths (such as 70-200mm, 70-300mm, 100-400mm, etc.) Focal length adjustment methodZoom lens: By adjusting the distance between the lenses in the lens group, the focal length of the lens can be changed within a range. For example, the common 24-70 lens has a focal length that can be adjusted between 24mm and 70mm. It is easy to operate and can change the framing range without twisting the lens while standing.Fixed focus lens: The focal length is fixed, and if you need to change the content of the image, you have to rely on the camera's forward and backward movement to achieve it. This is also the origin of the saying "zoom basically depends on movement".Aperture characteristicsZoom lens: Adjusting the focal length usually causes changes in the aperture, such as the Canon EF-S 18-135mm f/3.5-5.6 STM IS. At 18mm, the maximum aperture is 3.5, and when turned to 135mm, the maximum aperture becomes 5.6. The maximum aperture of current constant aperture zoom lenses is generally around 2.8. If the aperture is even larger, it requires a larger volume and more complex optical path design, and the price is also very expensive. For example, the RF28-70mm F2L USM is priced at 22499 yuan.Fixed focus lens: The structure is relatively simple, and within a certain price range, the optical quality is generally better than that of zoom lenses. It is also easier to manufacture large apertures, such as 1.4, 1.2, or even 0.95, which are more common in fixed focus lenses.weightZoom lens: Due to its complex internal structure, it requires a structure that accommodates zoom motion. If it is an electric zoom lens, it also needs to add related parts such as a motor, so the overall size and weight are relatively large, and handheld shooting is prone to shaking.Fixed focus lens: simple structure, usually not too heavy, convenient for handheld shooting.AppearanceZoom lens: Generally, it has an additional focus ring compared to fixed focus lens.Fixed focus lens: It has a relatively short appearance and usually only has one zoom ring.priceZoom lens: Generally priced higher, such as Canon's full frame red circle zoom lens, which costs around 10000 yuan for 24-70 f/28000.Fixed focus lens: The price range is wide, and there are cheaper options, such as the non professional 50mm f/1.8, which costs less than 700 yuan; There are also professional fixed focus lenses with higher prices, but overall, under the same optical quality, fixed focus lenses have a price advantage compared to zoom lenses.Imaging qualityWithin a certain price range, the imaging quality of fixed focus lenses is often better. There is a saying that "a dog's fixed lens wins over a cow's variable lens", which means that cheap fixed focus lenses may also have better optical quality than expensive zoom lenses.

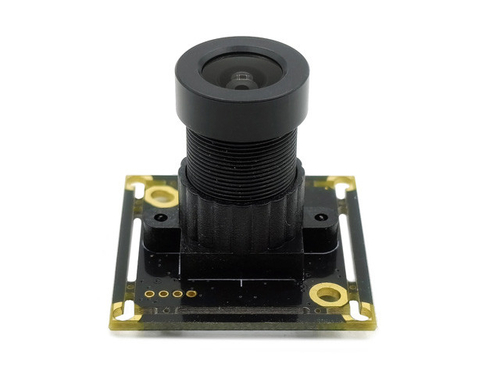

The USB camera module is a video capture device that connects to a computer or other device through a universal serial bus (USB) interface. They are widely used in various industrial systems, security monitoring, smart home, robot vision and other fields. Examples of application scenarios: Industrial automation: used to monitor the dynamic processes on the production line to ensure product quality and production efficiency. Security monitoring: installed in public places, such as banks, airports, etc., for real-time monitoring of security conditions. Smart home: integrated into smart door locks, security cameras and other devices to improve residential security. Robot vision: to help the robot to identify and process image information, and to realize autonomous navigation and task execution. Main functional characteristics: High Definition Imagery :USB camera modules typically offer a variety of resolution options, ranging from 1 megapixels to up to 5K of video resolution, to meet the needs of different application scenarios. For example, Shenzhen Huachuang Micro Vision Technology Co., Ltd. launched the USB camera module series includes different specifications from 300,000 pixels to 5K pixels. Wide compatibility:Most USB camera modules are designed to be compatible with multiple operating systems, including Windows, Linux, MacOS, and Android and iOS devices, adding flexibility in use. Interface Type:Common USB camera module interface types including USB2.0, USB3.0 and the latest USB4.0, but Shenzhen China and micro view technology co., LTD., also provides the interface customizable service, customers can choose according to their needs, in addition to USB2.0 interface can also choose Android, Type-c interface, free drive function provides a higher transmission speed and greater bandwidth. Real-time video stream:The signal is stable and avoids many signal interference factors. Color reduction degree is high, lighting, outdoor sunshine, stairwell dark state, look at the face, see the green plants, see the flame and other different environments to simulate the camera color debugging, so that the color reduction degree to achieve the best. Notes for installation and use:Installation steps1.Ensure that the target device has adequate USB ports.2.Insert the USB camera module into the USB port.3.Install the necessary drivers and software according to the equipment requirements. From the above information, it can be seen that USB camera modules are playing an increasingly important role in modern society, whether for professional industrial applications or daily home monitoring, they provide flexible and efficient solutions.
