Brand Name: | HCVsight |
Model Number: | HCU-ZDT201 |
MOQ: | negotiable |
Price: | negotiable |
Payment Terms: | T/T |
Supply Ability: | 100000/pieces/mouth |
Attribute | Value |
---|---|
Frame Rate | 30fps |
Pixel | 1mp |
Compatibility | Windows/Mac OS/Linux/Android |

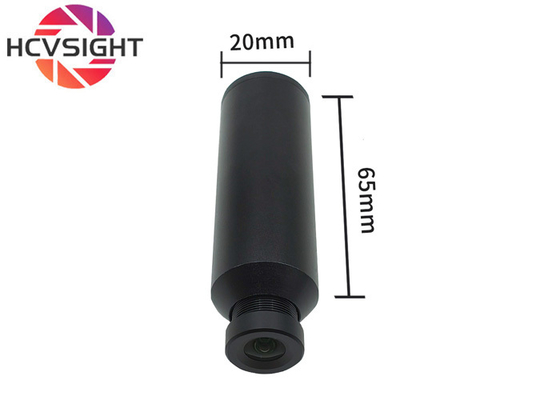

Product dimensions | 20mmx65mm (Do not contain base size) |
Lens Type | Customizable |
Color | Black |
Interface | USB 2.0 |
Sensor Type | CMOS |
Agreement | UVC |
Our company specializes in developing and producing camera modules and finished camera products, focusing on differentiated customized solutions to provide video image acquisition solutions for various applications. We accept customization requests for different signals and camera module types.
This USB Camera Device features a USB 2.0 interface for fast, stable connectivity to computers and laptops. With broad operating system compatibility, the camera offers versatility and ease of use. The CMOS sensor captures high-accuracy, detailed images at 30fps, making it ideal for capturing fast-moving objects. The customizable lens allows focus and zoom adjustments for optimal image capture.
Parameter | Value |
---|---|
Sensor | 1/4" |
Pixel | 1MP |
Compression format | MJPG/YUV2 |
Frame rate | 1080X720 30fps |
Audio | nonsupport |
Frequency operating voltage | DC 5v |
Product dimensions | 20mmx65mm (Do not contain base size) |
White balance | Automatic |
Operating temperature | <70° |
Power consumption | 0.25w |
Model No | HCU-ZDT201 |
Interface type | USB2.0 |
USB cable length | Default 2m |
Lens | EFL:3mm F.ON:2.2 Distortion: <-1.0% Element:4E+IR Angle:D=95° H=83° V=55° |
Chip Type | COMS |
Support OS | WinXP/Mac OS/Linux/Win7/Win8/Win10/Android |
Ideal for machine vision and equipment monitoring applications including: ATM machines, banking systems, hospital equipment, printers, vending machines, digital signage, robots, industrial machinery, fire monitoring systems, law enforcement equipment, security surveillance, and more.
Customization services include USB camera modules, AHD camera modules, CVBS camera modules, wired webcam modules, wireless wifi camera modules, and more. Available in various pixel options (1mp to 12mp) with fixed focal length or autofocus. Multiple size options available from 6mm×6mm to 38mm×38mm.
Our USB Camera comes with comprehensive technical support and services to ensure optimal performance:
