Mini Cat Eye 1080P Wifi Door Peephole Camera With Night Vision For Home Security

Mini Cat Eye 1080P Wifi Door Peephole Camera With Night Vision For Home Security

Brand Name:	HCVsight
Model Number:	HCW-163HS
MOQ:	50 pieces
Price:	US$52/50~199 pieces US$49.34/200~499 pieces US$46.89/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Lens:

160°（Customizable）

Sensor:

1/2.9"CMOS

Pixel:

3MP

Microphone:

Built-in/External

Connection Mode:

Wifi

Technology:

2.4G Wifi Wireless

Night Vision Function:

Support

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

3MP WIFI Camera

Night Vision WIFI Camera

WiFi Surveillance Camera

Product Description

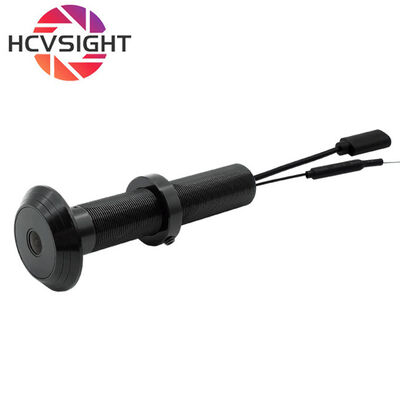

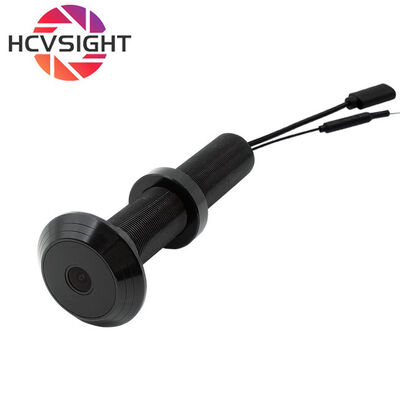

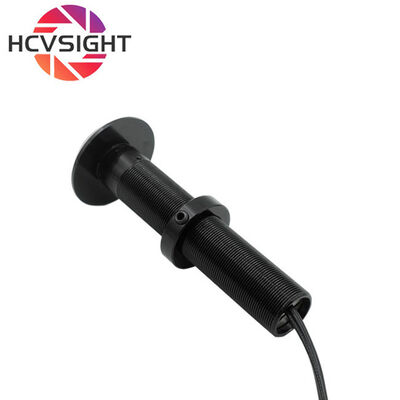

Mini Cat Eye 1080P Wifi Door Peephole Camera With Night Vision For Home Security

This mini apartment door peephole 1080P smart surveillance camera integrates 3-megapixel high-definition image quality, a 160° ultra-wide-angle lens, and is equipped with night vision and a microphone. It features a wireless design, WiFi connectivity, and easy installation, allowing you to directly replace old peepholes on your door. No matter where you are, you can remotely check what's happening at your door and chat with visitors via your mobile phone, as if you've installed a pair of "tireless smart eyes" on your front door, guarding your home's first line of defense around the clock, ensuring your safety and privacy. It is specifically designed for home security, office monitoring, and apartment access control.

Technical Specifications:

Specification	Details
Sensor	1/2.9"CMOS
Pixel	3MP
Compression format	H.265
Frame rate	2480x1080 25fps
Audio	Supported
Operating voltage	DC 5V/2.0A

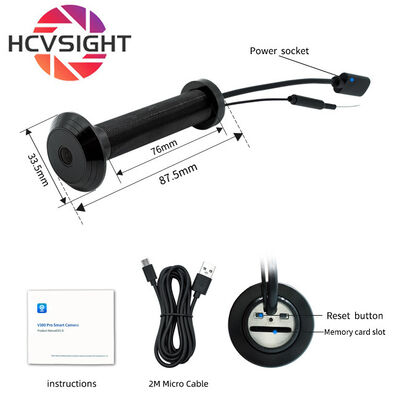

Dimensions	Lens diameter 33.5mm, body diameter 16mm, total length 89mm
Model No	HCW-163
Interface type	WIFI
Night Vision	Supported
Lens	EFL:2.63mm, F.ON:2.5, Thread:M12
FOV	160°
Storage	Support Cloud Storage/TF Card( Max 128GB)
APP	V380pro

Product functions and features

3MP High-Definition Pixels: Provides ultra-clear image quality up to 2480x1080, delivering sharp and detailed images that accurately capture details such as faces and objects in front of the door, far exceeding ordinary 1080P cameras, leaving no room for suspicious activity to hide.
160° Ultra-Wide Angle Lens: Equipped with an ultra-wide-angle lens with a 2.63mm focal length, the field of view is several times that of traditional peephole cameras, easily covering the entire area in front of the door, including ground-level packages, effectively avoiding blind spots and preventing strangers from hiding behind walls.
High-Performance Infrared Night Vision: Equipped with high-quality infrared LEDs, automatically switches to night vision mode in low-light or complete darkness, presenting clear black and white images. Provides reliable 24/7 monitoring whether returning home late at night or encountering emergencies.
Clear Microphone and Speaker: Supports real-time two-way voice communication. You can have clear conversations with visitors and delivery personnel outside the door via a mobile application, remotely instructing them on package placement, effectively warning suspicious individuals, and achieving door-to-door communication.
WiFi Wireless Connectivity: Supports WiFi connectivity, eliminating the hassle of wiring and simplifying installation. Simultaneous viewing on multiple devices: Supports simultaneous online viewing on multiple devices (phones, tablets) for family members, roommates, etc., with secure and dynamic sharing, allowing the whole family to know what's happening outside the door in real time.
SD card storage support: Supports local Micro SD/TF card storage (maximum support 128GB), with loop recording of video data, ensuring security and reliability. No need to worry about cloud service subscription fees, avoiding the risk of uploading private data to the cloud.

Applications

Apartment/Residential Doors: Replacing traditional cat eyes, real-time monitoring of who is at your doorstep, preventing foot stomping and package theft, is the core device of home security.
Safety for solitary individuals: Provide a safety barrier for women or elderly people living alone, allowing them to confirm their visitor identity without opening the door, which is both safe and convenient.
Rental residents: The installation is simple and does not require complex wiring. Renting can also easily improve the safety level, and it can be easily disassembled and taken away when moving.
Express delivery and visitor management: When you are not at home, you can communicate with the courier through two-way voice to guide them to place the package in the designated location.
Caregivers for the elderly/children: Understand whether the elderly are safe to leave or return home, and whether the children arrive home on time after school.

Customization Options

We offer comprehensive OEM/ODM customization services to meet specific application requirements:

Lens customization: Specific focal length, field of view angle, distortion control
Casing customization: Dedicated casing, bracket, or mounting solutions
Cable and interface: Custom lengths and connector types.
Resolution options: Higher pixel models available.
Module types: USB camera, AHD camera, CVBS camera, wired webcam, wireless WiFi camera modules

Why Choose Our Mini Apartment Door Peephole Camera?

High-definition 1080P video, 24/7 monitoring
Infrared night vision function, clear visibility even in low-light conditions
Built-in microphone, supports audio monitoring
Compact and discreet design, suitable for apartments and hotels
Easy installation without professional assistance
Supports WiFi remote monitoring
Compatible with various door thicknesses and styles
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

Lens specification sheet:Small lens.pdf

Learn more about our products:Huachuang Finished Product List.xls
