1080P Mini Box IP Camera With 2.1mm Wide-angle Lens For Industrial Surveillance

Name

1080P Mini Box IP Camera With 2.1mm Wide-angle Lens For Industrial Surveillance

Brand Name: HCVsight
Model Number: HCW-FK402WL
MOQ: 50 pieces
Price: US$42.99/50~199 pieces US$40.89/200~499 pieces US$38.79/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Product Description
Detail Information
Place of Origin:
ShenZhen，China
Signal:
Network Signal
Pixel:
2mp
Intenface Type:
RJ45
Lens Type:
Customizable
Color:
Black
Sensor Type:
CMOS
Frame Rate:
25fps
Product Size:
42mmX42mm
Packaging Details:
Anti-static bag in Paper box（110mmx93mm41mm）
Supply Ability:
100000/pieces/mouth
Highlight:

Network WIFI Camera

,

2MP WIFI Camera

,

30fps surveillance camera

Product Description
1080P Mini Box IP Camera With 2.1mm Wide-angle Lens For Industrial Surveillance
Product Introduction
The 1080P mini box IP camera is a high-performance network camera designed specifically for industrial environment monitoring needs. It is equipped with a 2-megapixel high-definition sensor and a 2.1mm wide-angle lens, providing a 150 ° ultra wide viewing angle coverage, greatly reducing monitoring blind spots. Its sturdy metal casing not only provides excellent heat dissipation performance, but also ensures the durability and reliability of the equipment in complex industrial environments. Supporting Power over Ethernet functionality makes installation easier, as only one Ethernet cable is needed to simultaneously complete data transmission and power supply, reducing deployment costs and complexity. This product adopts a metal box shell structure, with a size of only 42 × 42mm, making it a "compact powerhouse" in the field of industrial monitoring.
Technical Specifications
Parameter Value
Sensor 1/2.9"
Pixel 2MP
Compression format H.264/H.265
Frame rate 1920x1080 25fps
Audio Not supported
Operating voltage DC 12v
Product dimensions 42mm × 42mm
White balance Automatic
Operating temperature <70°C
Power consumption 0.25w
Model No HCW-FK402WL
Interface type RJ45
Cable length Default
Lens Specifications
  • EFL: 2.2mm
  • F.ON: 2.8
  • Distortion: <-89%
  • Element: 4G+IR
  • Angle: D=150° H=120° V=160°
  • Thread: M12
  • Chip Type: COMS
Key Features & Applications
  • Compact RJ45 interface security camera (42 × 42mm)
  • Minimum illumination of 0.001x with internal synchronization
  • 2MP ultra HD resolution (1920x1080@25fps) for detailed imaging
  • Ideal for facial recognition, advertising machines, ATM systems
  • Suitable for queuing machines, fire safety monitoring, and video conferencing
  • Compatible with various industrial equipment
Customization Options
Brand: HCVsight | Model: HCW-FK402WL | Origin: Shenzhen, China
MOQ: Negotiable | Price: Negotiable | Delivery: 2-3 weeks
Packaging: Anti-static bag in paper box (110×93×41mm)
Payment: T/T | Supply Capacity: 100,000 units/month
Color: Black | Compatibility: Windows/Mac/Linux
Available Customization Services
  • USB, AHD, CVBS, wired webcam, and wireless WiFi camera modules
  • Pixel options from 1MP to 12MP
  • Fixed focal length and autofocus options
  • Diverse product sizes from 6×6mm to 38×38mm
  • Extremely compact designs available (AHD/USB/CVBS)
Technical Support & Services
  • Online product documentation and user manuals
  • Email and phone technical support
  • Remote desktop assistance
  • Repair and replacement services
  • Product training and education
  • Customized solutions for specific needs

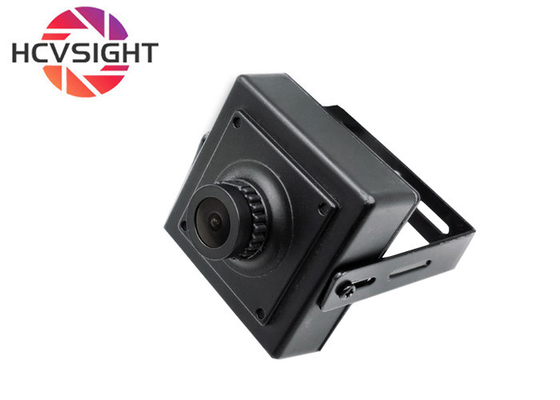

1080P Mini Box IP Camera With 2.1mm Wide-angle Lens For Industrial Surveillance 0

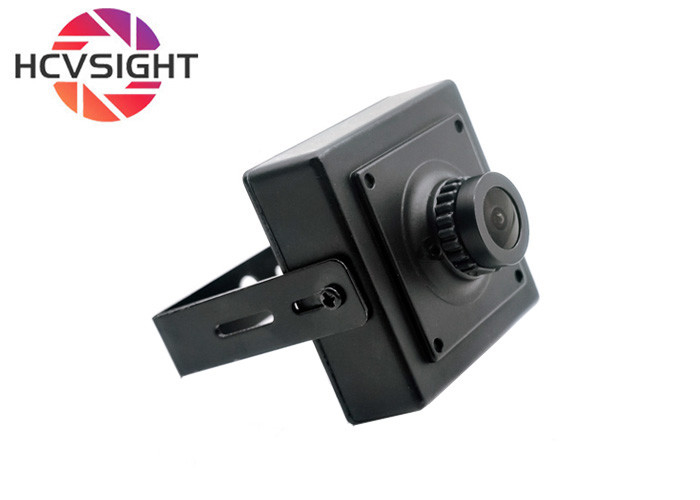

1080P Mini Box IP Camera With 2.1mm Wide-angle Lens For Industrial Surveillance 1
