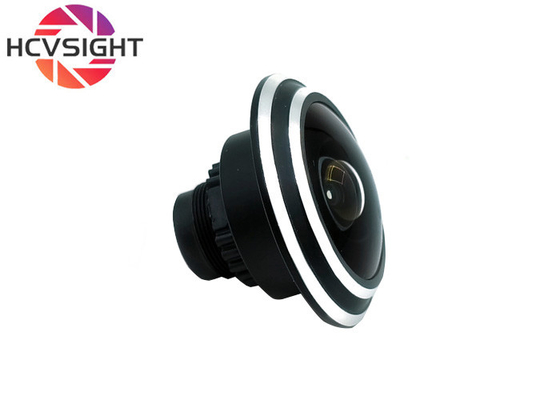

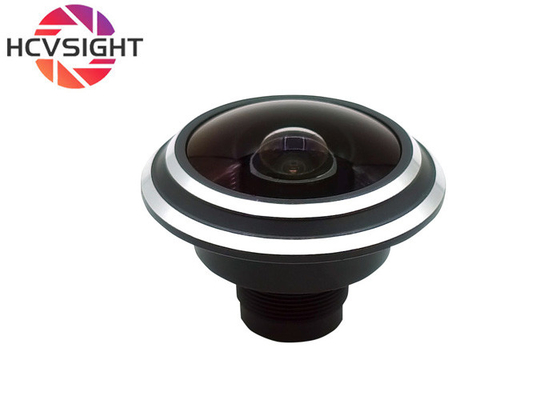

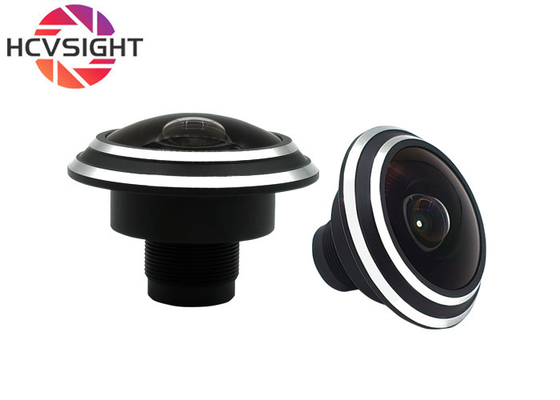

1.7mm Ultra-wide Angle Door Peephole Camera Lens Security Monitoring Fisheye Lens

Name: 1.7mm Ultra-wide Angle Door Peephole Camera Lens Security Monitoring Fisheye Lens
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HC-DMYJT
Price: 8.99 USD
Availability: InStock

Brand Name:	HCVsight
Model Number:	HC-DMYJT
MOQ:	50 pieces
Price:	US$9.99/50~999 pieces US$8.99/>=1000 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Sensor Size:

1/3"

Compatibility:

Windows/Mac/Linux/Andriod

Mount:

M12

Sensor Type:

CMOS

Lens Type:

175°

Model:

HC-DMYJT

Video Resolution:

2MP

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

2.1mm wide angle lens

2MP wide angle lens

Camera fisheye lens

Product Description

1.7mm Ultra-wide Angle Door Peephole Camera Lens Security Monitoring Fisheye Lens

Product Overview

Specially designed for security and special perspectives! This 1.7mm ultra wide angle door peephole camera lens has a diagonal field of view (DFOV) of up to 175 °, which can present a highly visually dynamic fisheye effect. It is designed specifically to replace or upgrade standard camera lenses, and can extend the normal monitoring angle to a wide range, easily achieving a "one shot panoramic view". It is an ideal choice to solve the problem of panoramic monitoring in narrow spaces. Whether used for concealed door peephole security or small spaces that require no blind spots to cover, it can provide stunning panoramic images.

Key Features

Ultimate wide-angle field of view: Provides a 175 ° diagonal ultra wide viewing angle, easily covering a wide range that traditional lenses cannot reach.
Fisheye panoramic effect: presenting unique circular or curved panoramic images, effectively reducing blind spots in monitoring.
Professional focal length configuration: 1.7mm short focal length, optimized for wide-angle monitoring at extremely close distances.
High definition optical glass: Using high-quality glass lenses, high transmittance, high imaging clarity, and reduced distortion.
Widely compatible and adaptable: suitable for most standard board computer camera modules, convenient for DIY installation and replacement.
Compact and concealed design: Miniature size, especially suitable for installation in narrow or concealed positions such as door peepholes and ceilings.

Technical Specifications

Parameter	Value
Optical Axis Length	23
EFL	1.7mm
F/NO	2.4
BFL	6.3mm
MBF	2.9mm
MAX IMAGE CIRCLE	6.1
MAX FOV	175°
Construction	4G+1IR
Sensor size	1/3"
Distortion	-
Objective distance	0.1mm
Angle (D/H/V)	175°/132°/96°
Relative illumination	>60%
Total Track	28.9mm
Thread Size	M12XP0.5

Applications

Door peephole security monitoring: directly replacing ordinary cat eyes, providing panoramic monitoring of the entrance area far beyond traditional perspectives, doubling safety.
Small space full coverage: Perfect for narrow environments such as elevator cars, storage rooms, corners of safes, rental houses, etc., achieving seamless monitoring.
Car panoramic recording: installed on the front windshield of the car as an auxiliary lens for the driving recorder, recording a wider range of road conditions information.
Creative Photography and VLOG: Paired with compatible camera modules, it can be used to capture creative fisheye perspective photos and videos, adding fun.
Commercial venue monitoring: suitable for commercial scenarios that require wide-angle monitoring, such as convenience store cash registers, hotel corridors, and office corners.

Customization Options

Brand Name: HCVsight
Model Number: HC-DMYJT
Origin: ShenZhen, China
Minimum Order: Negotiable
Packaging: Anti-static bag in paper box (110x93x41mm)
Delivery Time: 2-3 weeks
Payment Terms: T/T
Supply Capacity: 100,000 pieces/month

Support & Services

Technical assistance for lens selection
Custom design and development services
Quality testing and evaluation
Comprehensive documentation and training
