2.5mm 3 Million High Definition 115° Wide Angle Surveillance Camera Lens with CMOS Sensor

2.5mm 3 Million High Definition 115° Wide Angle Surveillance Camera Lens with CMOS Sensor

Brand Name:	HCVsight
Model Number:	HC-1016
MOQ:	50 pieces
Price:	US$5.99/50~999 pieces US$4.99/>=1000 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Compatibility:

Windows/Mac/Linux/Andriod

F.NO:

2.5mm

Lens Type:

DFOV160°

EFL:

2.63mm

Sensor Type:

CMOS

Pixel:

3MP

TV Dimension:

<-24%

Color:

Black

Mount:

M7XP0.35

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

3 Million surveillance camera lens

160 Degree surveillance camera lens

2.5mm security camera lens

Product Description

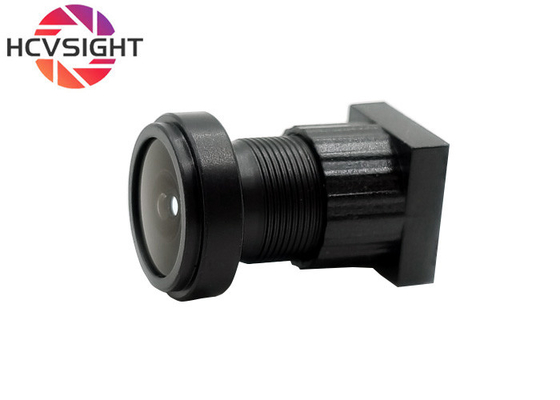

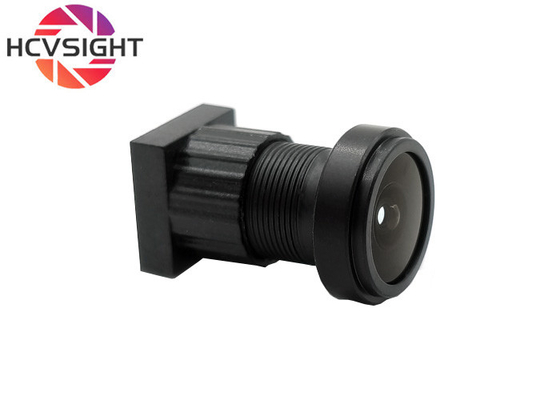

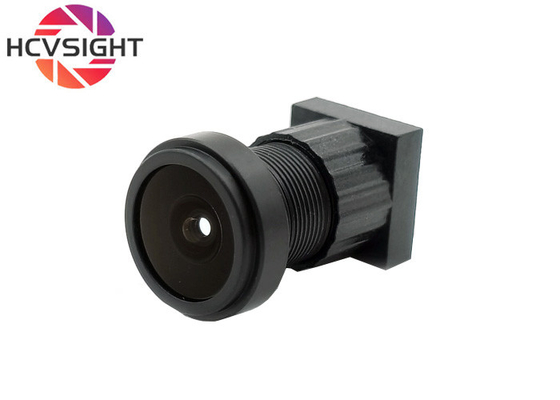

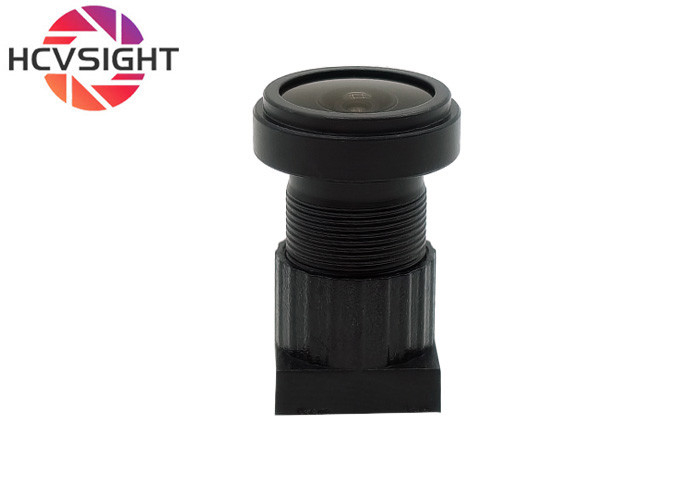

2.5mm 3 Million High Definition Wide Angle 115° Surveillance Camera Lens

This is a high-performance 2.5mm ultra wide angle surveillance camera lens designed specifically for security needs that pursue ultimate field of view and high-definition image quality. It adopts high-quality optical glass lenses and is equipped with a 1/3-inch large-sized target chip, which can output high-definition images of up to 3 million pixels. Its core advantage lies in providing a super large diagonal field of view of 160 ° (DFOV) and effectively controlling TV distortion within -24% through advanced optical design, significantly reducing distortion and deformation of edge images while capturing a wide range. The standard M7x0.35 interface enables it to easily adapt to the vast majority of monitoring camera modules of the same specifications on the market, making it an ideal choice for upgrading or assembling high-definition wide-angle monitoring equipment.

Key Features

3 million high-definition picture quality: supports up to 3 million pixel resolution, presenting clear images with rich details.
160 ° Ultra Wide Field of View: DFOV has a diagonal field of view of up to 160 °, allowing a single lens to cover a wide monitoring area.
Low distortion optical design: TV distortion is less than -24%, effectively improving edge stretching and making the picture more realistic and natural.
Strong compatibility with large target surfaces: 1/3 inch chip size, widely compatible with mainstream high-definition camera sensors.
Standard threaded interface: M7x0.35 threaded interface, easy to install and highly versatile.
High quality glass lenses: high transmittance, sharp imaging, accurate color reproduction.

Technical Specifications

Parameter	Value
TTL	14.55
EFL	2.63
F/NO	2.5
BFL	3.91mm
MAX IMAGE CIRCLE	6.1
MAX FOV	160°
Construction	4G+1IR
Sensor Size	1/3"
Distortion	<-24%
Operation Temperature	-30℃~+80℃

Application Scenarios

Ideal for machine vision and equipment monitoring applications including:

ATM machines and banking systems
Medical equipment and hospital reporting systems
Printers, vending machines, and digital signage
Robotics and industrial automation equipment
Security surveillance systems
Flame monitoring in industrial settings
Identification and verification systems

Support & Services

Technical assistance for installation, configuration, and troubleshooting
Product training and education for customers and partners
Firmware and software updates for optimal performance

Download full lens parameters (PDF)
