Sony CCD2090+811 CVBS Camera Module with 95° Viewing Angle and Analog Signal for High-Quality Monitoring

Name: Sony CCD2090+811 CVBS Camera Module with 95° Viewing Angle and Analog Signal for High-Quality Monitoring
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCC-M18D
Price: 26.79 USD
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCC-M18D
MOQ:	50 pieces
Price:	US$29.99/50~199 pieces US$28.59/200~499 pieces US$25.79/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Dimensions:

18mmx36.5mm

Pixel:

0.7MP

Frame Rate:

50fps

Sensor Type:

CCD

Lens:

Customizable

Sensor Size:

1/3''

Chip Model:

NVP2090+811

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

50fps cam module

Bullet cam module

1/3'' cam modules

Product Description

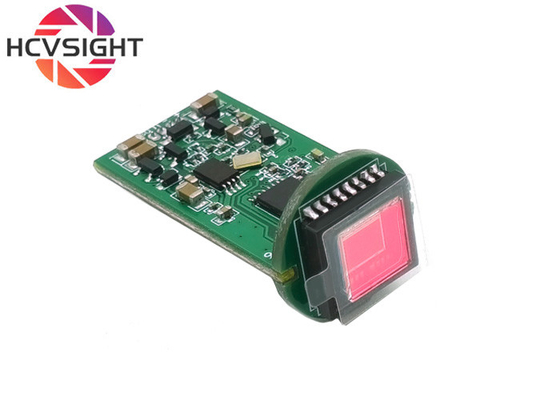

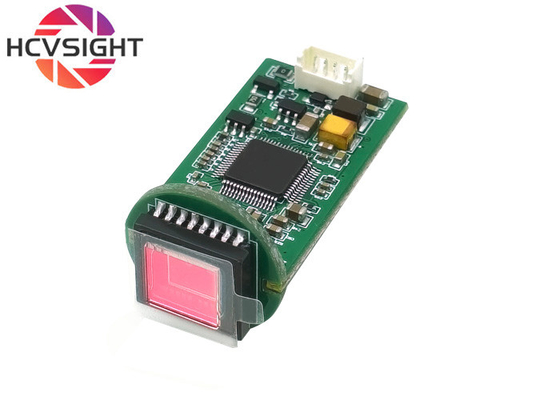

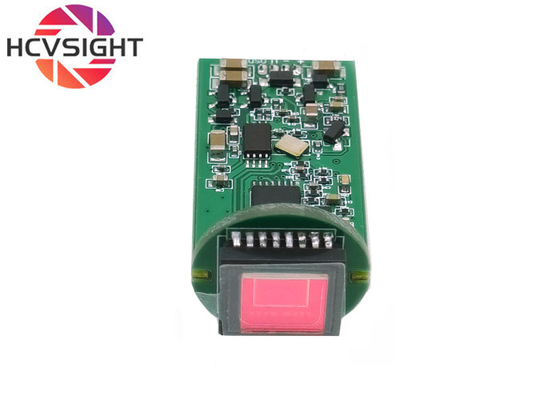

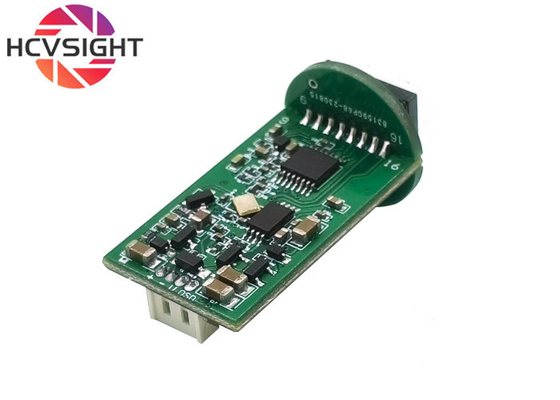

Sony CCD2090+811 Camera Movement HD 700 Line Analog Signal Bullet Cam Module

This CVBS 700,000 pixel Sony CCD camera module is designed for high-quality monitoring solutions. Featuring a 1/3-inch CCD sensor with 700,000 pixels, it delivers clear, detailed images suitable for various monitoring scenarios.

Key Features

1/3-inch Sony CCD sensor with 700,000 pixels for high-resolution imaging
Excellent photosensitive performance and color restoration capabilities
Reduced noise and clear image capture even in low-light conditions
Compact design with reliable stability for continuous operation
Standard CVBS output interface for easy integration

Technical Specifications

Parameter	Value
Sensor	1/3"
Pixel	700,000-Pixel
Signal	CVBS
Frame rate	1020X596 50fps
Audio	Not supported
Operating voltage	DC 12v
Dimensions	18mm × 36.5mm
White balance	Automatic
Operating temperature	<70°C
Power consumption	0.25w
Model No	HCC-M18D
Interface type	BNC
Lens	EFL:3mm, F.ON:2.2, Distortion: <-1.0%, Element:4E+IR, Angle:D=95° H=83° V=55°
Chip Type	CCD
Standard	PAL/NTSC (Default PAL)

Product Advantages

Signal stability: Years of camera module development experience minimizes signal interference
High color accuracy: Extensive environmental testing ensures optimal color reproduction
Compact size: One of the smallest camera modules available in its class

Application Scenarios

Ideal for various machine vision and equipment monitoring applications including:

ATM machines and banking equipment
Medical inspection and reporting systems
Printers, vending machines, and digital signage
Robotics and automated welding equipment
Security surveillance systems
Industrial monitoring (flame detection, power boiler monitoring)
Certification and measurement equipment

Customization Options

Brand Name: HCVsight
Model Number: HCC-M18D
Origin: Shenzhen, China
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging: Anti-static bag in paper box (110×93×41mm)
Delivery Time: 2-3 weeks
Payment Terms: T/T
Supply Capacity: 100,000 pieces/month

We offer comprehensive customization services to tailor the HCC-M18D Camera Module to your specific requirements, whether for industrial, aerial, or IP camera applications.

Support & Services

Technical assistance in lens selection
Custom lens design and development
Quality testing and evaluation
Comprehensive documentation and training
Maintenance and repair services
