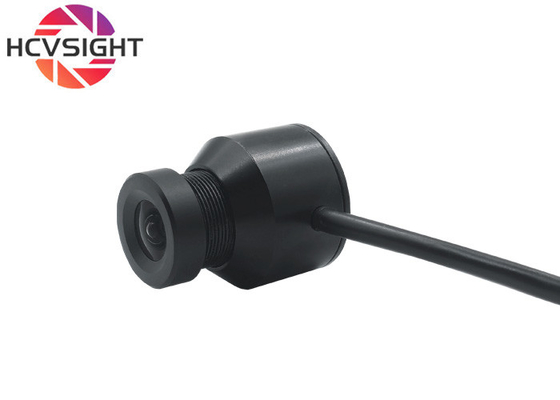

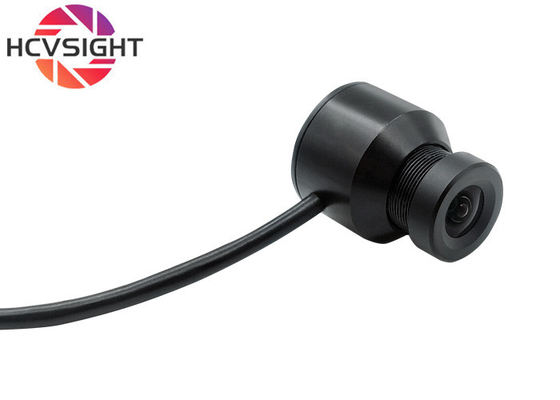

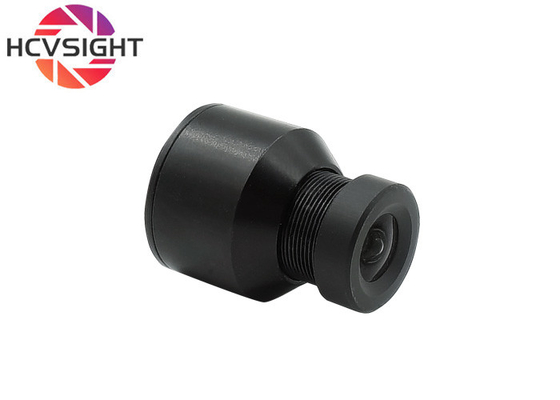

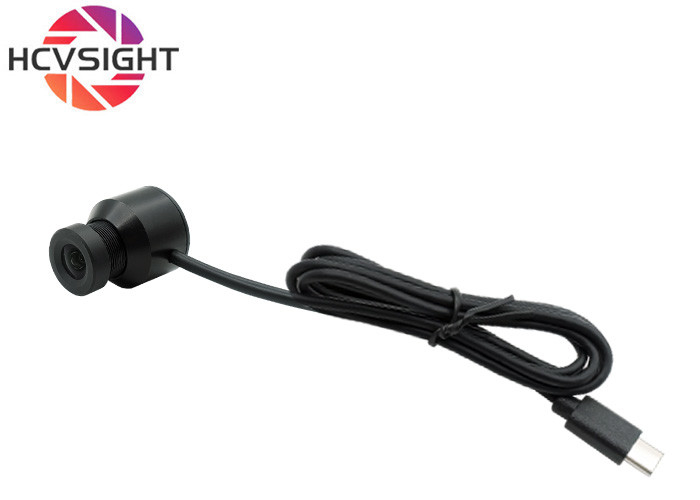

Mini Bullet 72P USB Camera Driver-free For Retail/Commercial Security Surveillance

Name: Mini Bullet 72P USB Camera Driver-free For Retail/Commercial Security Surveillance
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCU-JZ191TPC
Price: 28.79 USD
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCU-JZ191TPC
MOQ:	50 pieces
Price:	US$31.79/50~199 pieces US$30.29/200~499 pieces US$28.79/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Lens Type:

Customizable

Sensor Type:

CMOS

Pixel:

1mp

Color:

Black

Product Dimensions:

15mmx19mm

Compatibility:

Windows/Mac OS/Linux/Andriod

Interface:

Type-c

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

1 Million Distortion Free bullet camera

Type C Interface High Definition bullet camera

1mp 1 Million bullet cameras

Product Description

Mini Bullet 72P USB Camera Driver-free For Retail/Commercial Security Surveillance

This mini bullet USB camera, with its extremely compact body (only 19x15mm) and powerful plug and play function, provides a cost-effective security solution for commercial scenarios such as retail and office. It adopts 1 million high-definition pixels, equipped with distortion free lenses, and can be directly connected to various devices such as computers and cash registers through advanced Type-C interfaces. No drivers need to be installed, and high-definition monitoring can be immediately turned on, making it an ideal choice for improving business safety and efficiency.

Key Features

High definition picture quality: 1 million pixels, 1/4 inch chip, supports 720P high-definition imaging, ensuring picture clarity.
Ultimate Mini: 19x15mm bullet head design, strong concealment, flexible installation, and does not take up space.
Distortion free viewing angle: The 3.6mm lens provides a 90 ° distortion free viewing angle, accurately reproducing the monitoring scene and avoiding image distortion.
Plug and play: Type-C interface, no driver installation required, immediately available after connecting compatible devices, saving time and effort.
Wide compatibility: Perfectly supports mainstream systems such as Windows, macOS, Linux, etc., and can connect to computers NVR, Smart TVs, etc.

Technical Specifications

Sensor	1/4"
Resolution	1MP (1280×720 @ 30fps)
Compression Format	MJPG/YUV2
Power Requirements	DC 5V, 0.25W consumption
Operating Temperature	<70°C
Lens Specifications	3mm effective length, 2.2 focal length, <-1.0% distortion
Viewing Angle	D=95° H=83° V=55°
Chip Type	CMOS

Applications

Ideal for machine vision and equipment monitoring including:

ATM machines and banking equipment
Vending machines and digital signage
Medical equipment and hospital systems
Industrial automation and robotics
Security surveillance systems
Law enforcement equipment

Customization Options

Brand: HCVsight

Model: HCU-JZ191TPC

Origin: Shenzhen, China

Packaging: Anti-static carton bag (110×93×41mm)

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type (such as USB and Android).
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Support & Services

Comprehensive online documentation and manuals
Email and phone technical support
Remote desktop assistance
Product training and education
Customized solutions for specific requirements

Lens specification sheet:Specification for 3.6mm undistorted lens.pdf

About our more products:Huachuang Finished Product List.xls
