Android Interface Bullet Camera 720p HD 1MP 2.1mm Lens For Android Devices

Android Interface Bullet Camera 720p HD 1MP 2.1mm Lens For Android Devices

Android Interface Bullet Camera 720p HD 1MP 2.1mm Lens For Android Devices

Brand Name: HCVsight
Model Number: HCU-ZDT181AZ
MOQ: 50 pieces
Price: US$29.59/50~199 pieces US$28.19/200~499 pieces US$26.79/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Product Description
Detail Information
Place of Origin:
ShenZhen，China
Pixel:
1mp
Compatibility:
Windows/Mac OS/Linux/Andriod
Frame Rate:
30fps
Color:
Black
Product Dimensions:
19mmx23mm(Base Size Is Not Included)
Sensor Type:
CMOS
Interface:
Android
Protocol:
UVC
Packaging Details:
Anti-static bag in Paper box（110mmx93mm41mm）
Supply Ability:
100000/pieces/mouth
Highlight:

720p HD USB Camera

,

1MP Bullet Camera

,

2.1mm Lens Android Camera

Product Description
Android Interface Bullet Camera 720p HD 1MP 2.1mm Lens For Android Devices
This Android interface ultra wide angle bullet head camera is an external high-definition camera specially designed for Android smartphones, tablets, and other devices. It adopts a unique mini bullet head design, with a body size of only 19x23mm, lightweight and portable, yet it has a 720P high-definition picture quality of 1 million pixels and an amazing 150 ° ultra wide angle field of view. Through the plug and play Android standard interface (Micro USB), it can instantly transform your device into a multifunctional monitoring recorder, providing unprecedented clarity and security protection for your life, work, and travel.
Key Features
  • 720p HD resolution with 1MP imaging capability
  • 2.1mm lens with wide 150° field of view (D=150° H=120° V=60°)
  • Android interface for easy connectivity
  • Compact design: 19mm×23mm (base not included)
  • Plug-and-play operation with multiple OS support
  • Low power consumption: 0.25w at DC 5V
  • Built-in lens cover for protection
Technical Specifications
Parameter Specification
Sensor 1/4" COMS
Resolution 1MP
Compression Format MJPG/YUV2
Frame Rate 1920×1080 @ 30fps
Power Supply DC 5V
Working Temperature <70°C
Lens Specifications Effective length: 2.2mm, F.NO:2.1, Distortion: <-89%
Supported OS WinXP/Win7/Win8/Win10/Android/Mac OS/Linux

Typical Applications

1: ATM,Kiosk,POS,TV box
2: Advertising cameras
3: Smart TV built-in camera
4: Construction Equipment
5: Banking equipment
6: body switch
7: Scanner
8: a mobile terminal device
9: Medical diagnostic image acquisition
10: fingerprints, palm prints image acquisition
11: video door camera
Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type (such as USB and TYPE-C).
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Support & Services
Our products come with comprehensive technical support including:
  • Detailed product documentation and manuals
  • Email and phone technical support
  • Remote desktop assistance
  • Product training and education
  • Customized solutions for specific needs

Lens specification sheet:2.1mm Wide Angle Lens Specification.pdf

About our more products:Huachuang Finished Product List.xls

Other similar products

Product Images

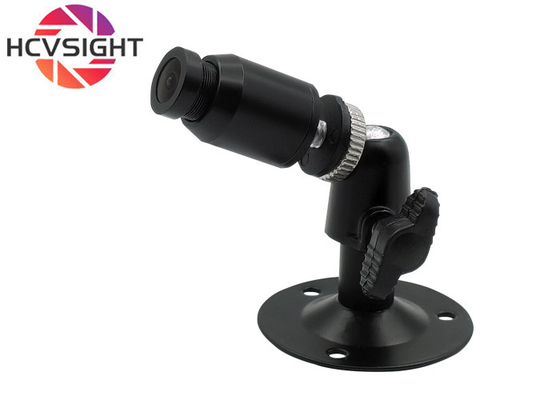

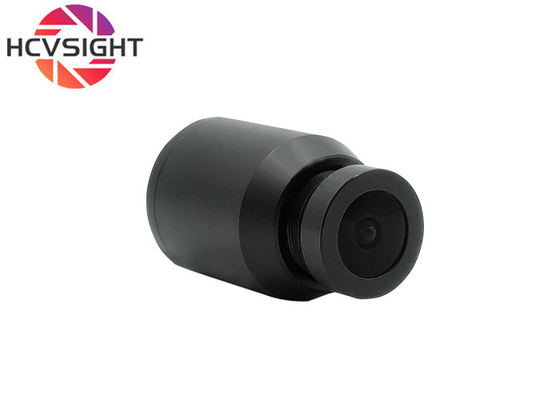

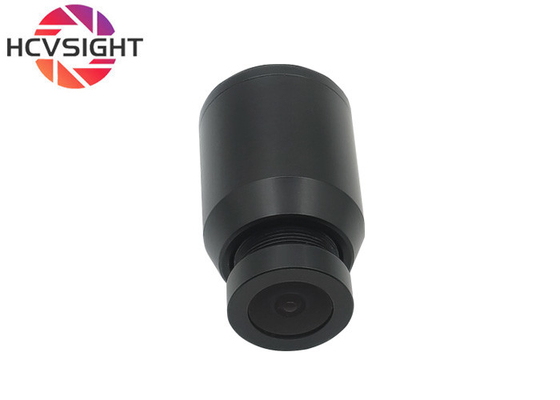

Android Interface Bullet Camera 720p HD 1MP 2.1mm Lens For Android Devices 0 Android Interface Bullet Camera 720p HD 1MP 2.1mm Lens For Android Devices 1
