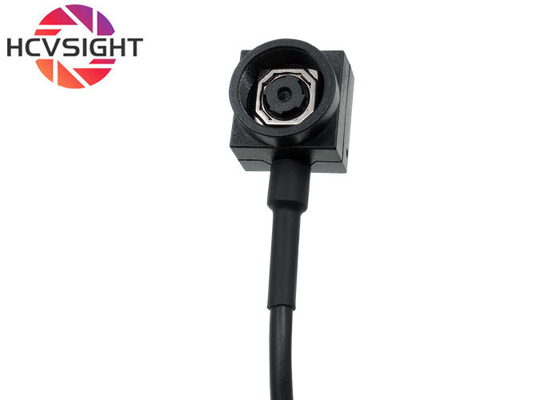

Mini 15x15mm Type-C 5MP Autofocus USB Camera For ATM Or Document Scanning

Mini 15x15mm Type-C 5MP Autofocus USB Camera For ATM Or Document Scanning

Brand Name: HCVsight
Model Number: HCU-ZDDJ155TPC
MOQ: 50 pieces
Price: US$37.69/50~199 pieces US$35.89/200~499 pieces US$34.09/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Place of Origin:
ShenZhen,China
Pixel:
5mp
Compatibility:
Windows/Mac/Linux/Andriod
Frame Rate:
30fps
Color:
Black
Product Dimensions:
15mmx15mm
Sensor Type:
CMOS
Interface:
Type-c
Microphone:
Built-in/External
Sensor:
1/4"
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/mouth
Highlight:

5MP USB Camera

,

1/4" USB Camera

,

30fps android usb camera

Product Description
Mini 15x15mm Type-C 5MP Autofocus USB Camera For ATM Or Document Scanning
Product Overview

This is an ultra miniature high-definition camera module designed specifically for highly integrated and space limited applications. It adopts advanced sensors and autofocus technology, achieving excellent image quality of 5 million high-definition pixels in a very small size of only 15x15mm. With its plug and play USB Type-C interface and 77 ° standard viewing angle, this camera is an ideal choice for ATMs, smart terminals, document scanners, and other embedded visual solutions. Its core value lies in providing the clearest and most stable professional level image capture capability in the smallest space.

Key Features
  • 5MP high-resolution imaging for detailed monitoring
  • Auto focus, achieving clear images at long distances
  • Built-in microphone for synchronized audio capture
  • Type-C interface, plug and play, no need to install drivers
  • Eye contact technology for natural video communication
Technical Specifications
Parameter Specification
Sensor 1/4"
Pixel 5MP
Compression Format MJPG/YUV2
Frame Rate 2560×1440 @ 30fps
Audio Supported
Working Voltage DC 5V
Product Size 15mm × 15mm
Working Temperature <70°C
Power Consumption 0.25W
Interface Type Type-C
Lens Specifications
Effective Length: 3.57mm
F.ON: 2.0+5%
Distortion: <1.5%
Component: 5E+IR
Angle: D=77.6° H=65.2° V=51.6°
Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Cable length: Custom cable length (can be customized to 1.5m/2.0m).
3. Pixel customization: Provides different resolution and frame rate models (such as 640*480, 1280*720, 1920*1080, 2560*1440).

4.Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.

5. Product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc.At the same time, the size can be extremely small, Our AHD / USB / CVBS camera module without storage and transmission is extremely small and the smallest of its kind on the market.

Applications

This camera module has a wide range of application prospects in the following fields due to its small size, high definition, and autofocus characteristics:
Automatic teller machine (ATM): used for cardholder facial recognition, identity verification, and enhancing transaction security; It can also be used to capture transaction vouchers and retain evidence.
VTM (Remote Video Teller Machine): As the front-end camera for video calls, it provides clear video images.
Intelligent counter machine: used for document scanning, facial recognition account opening and other business processing.
High speed camera/scanner: integrated into office equipment, quickly autofocus scans documents, books, contracts, and achieves electronic archiving.
Bill processing terminal: used to automatically identify and collect information on checks, invoices, and documents.
Facial recognition access control/attendance machine: Built in for capturing and recognizing faces, achieving seamless passage and attendance.
Intelligent retail devices, such as vending machines and self-service ordering machines, used for interaction or identity verification.
Industrial testing: Integrated into miniaturized testing equipment for visual inspection of product quality.
Other embedded applications:
Any innovative project that has strict requirements for volume and image quality, such as drone image transmission, robot vision, medical endoscopic equipment, etc.

Support & Services

Our comprehensive support includes:

  • Online documentation and user manuals
  • Email and phone technical support
  • Remote desktop assistance
  • Product training and customized solutions

 Product Images

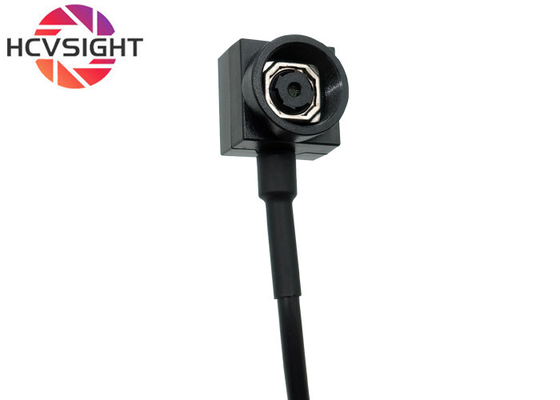

Mini 15x15mm Type-C 5MP Autofocus USB Camera For ATM Or Document Scanning 0

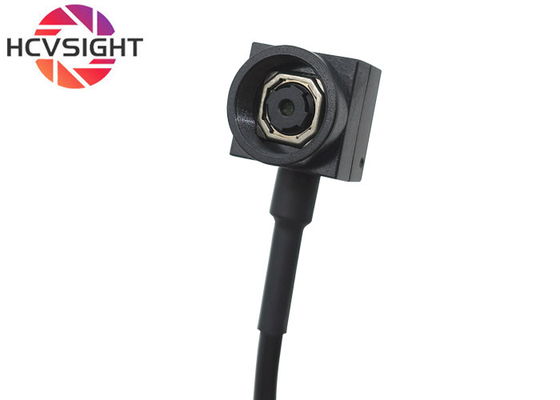

Mini 15x15mm Type-C 5MP Autofocus USB Camera For ATM Or Document Scanning 1

 Lens specification sheet:Specification for autofocus lens.pdf

 About our more products:Huachuang Finished Product List.xls
