175° Wide Angle HD 1080P USB Camera Driver-Free Plug-and-Play Mini Box Camera

Brand Name:	HCVsight
Model Number:	HCU-FKMY362
MOQ:	50 pieces
Price:	US$40.99/50~199 pieces US$39.76/200~499 pieces US$35.79/500~999 pieces
Payment Terms:	,T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

2MP

Frame Rate:

30fps

Working Voltage:

DC 5V

Sensor Type:

CMOS

Agreement:

UVC

Product Size:

36x36mm

Interface Type:

TYPE-C

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

Car Use Fisheye Lens USB Camera

1080P Fisheye Lens USB Camera

Product Description

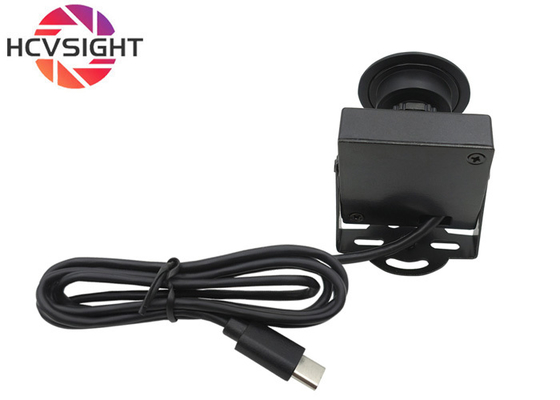

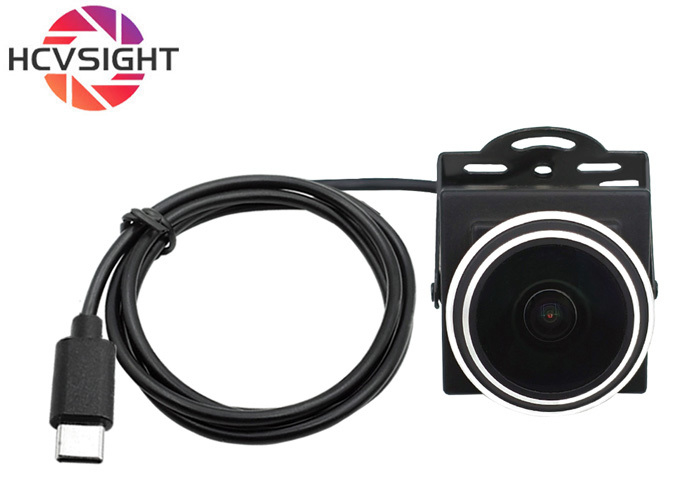

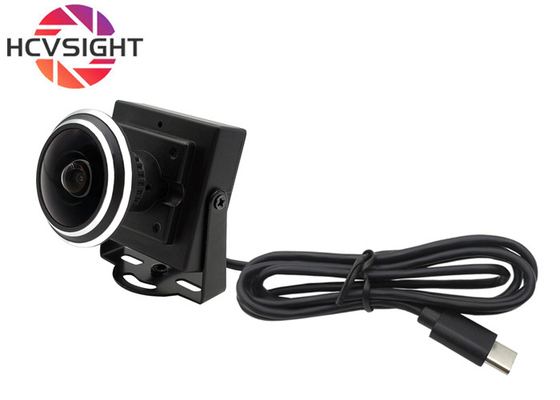

175° Wide Angle HD 1080P USB Camera Driver-Free Plug-and-Play Mini Box Camera

This high-performance camera features an ultra-wide 175° optical field of view (diagonal) with fisheye lens technology, significantly reducing monitoring blind spots. Its unique imaging capability captures comprehensive 360° coverage, making it ideal for industrial applications such as production line monitoring and equipment status tracking. The wide-angle perspective enables operators to maintain complete situational awareness, identify potential issues promptly, and enhance operational efficiency and safety.

Technical Specifications

Parameter	Specification
Sensor	1/2.9"
Resolution	2MP
Compression Format	MJPG/YUV2
Frame Rate	1920x1080 @ 30fps
Audio Support	No
Operating Voltage	DC 5V

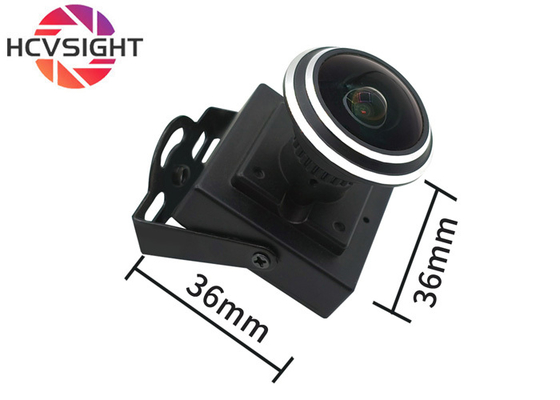

Dimensions	36x36mm
White Balance	Automatic
Operating Temperature	<70°C
Power Consumption	0.25W
Model Number	HCU-FKMY362
Interface Type	Type-C
USB Cable Length	1.2m (default)
Lens Specifications	EFL: 2.1mm F/NO: 2.4 EFL: 6.3mm Element: 7G+650IRCUT Angle: D=175° H=132° V=96° Thread: M12
Chip Type	CMOS
Supported OS	WinXP/Win7/Win8/Win10/Mac OS/Linux/Android

Key Features & Benefits

Stable Signal Transmission: Engineered with years of small camera module development experience to minimize signal interference
Universal Compatibility: Works seamlessly across Windows, Android, Mac OS, and Linux systems
Precision Color Reproduction: Optimized through extensive environmental testing including various lighting conditions, facial recognition, and outdoor scenarios
Ultra-Wide 175° Diagonal View: 2.1mm fisheye lens provides comprehensive coverage with 132° horizontal field of view
Industrial-Grade Construction: Durable metal housing (36×36mm) with four-sided heat dissipation fin design

Customization Options

We offer comprehensive OEM/ODM services to meet specific application requirements:

Lens Customization: Tailored focal length, field of view, and distortion control
Housing Solutions: Custom enclosures, brackets, and mounting options
Cable & Interface: Variable cable lengths and interface types (USB, Android, etc.)
Resolution Options: Available in higher resolutions including 4MP, 8MP, and 12MP models

Application Areas

This versatile camera solution is ideal for:

Industrial automation & machine vision systems
Precision equipment monitoring
Security & surveillance applications
Embedded access control/attendance systems
Vehicle monitoring & dash cams
Smart home security
Medical & laboratory imaging
Retail terminals & digital signage
Drone/robot vision systems
Conference & education systems
