T-shaped Module 3MP Wifi Camera Module Mini Size 1080P Wireless IP Camera Module

Brand Name:	HCVsight
Model Number:	HCW-CM183
MOQ:	50 pieces
Price:	US$43.99/50~199 pieces US$41.79/200~499 pieces US$37.69/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/ pieces/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Pixel:

3MP

Color:

Black

Product Size:

18mmx42mm

Lens Angle:

95°（customizable）

Frequency Operating Voltage:

12v

Connection Mode:

WiFi

Microphone:

Support

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/ pieces/month

Highlight:

1080P WIFI Camera Module

90° Lens Angle IP Camera Module

12V Operating Voltage Wireless Camera Module

Product Description

T-shaped Module 3MP Wifi Camera Module Mini Size 1080P Wireless IP Camera Module

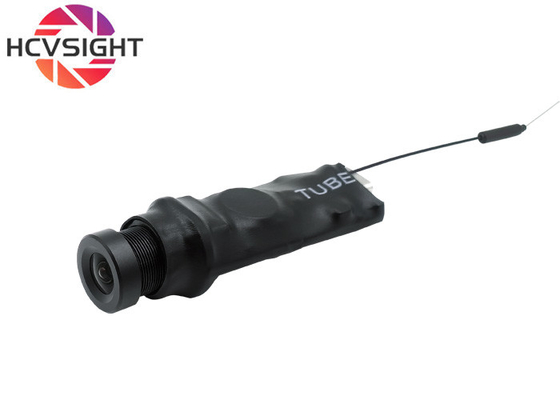

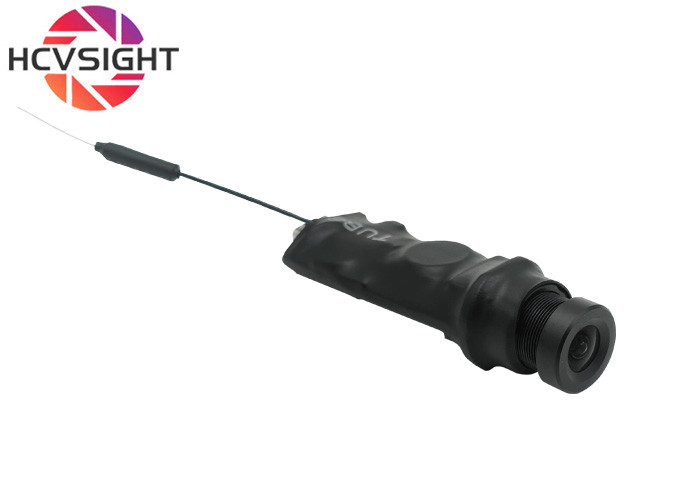

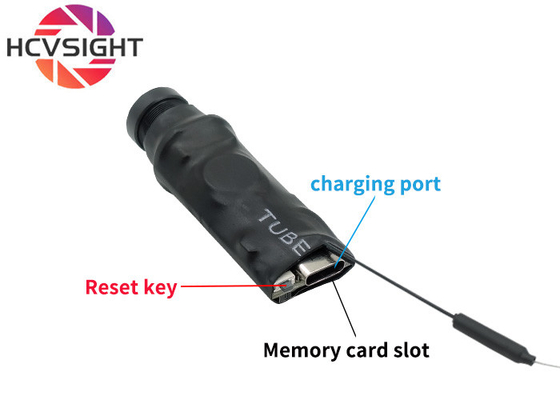

This T-shaped 3MP WIFI camera module is an advanced wireless image capture solution that combines high performance and mini size. It adopts a compact T-shaped structure design, which is easy to integrate into various smart devices. The module is equipped with a 3-megapixel high-definition sensor, which can output 1080P full HD image quality, and has a built-in 3.6mm distortion free lens. Wireless connection is achieved through WiFi, supporting remote real-time monitoring and video playback. It also integrates a microphone to achieve synchronous transmission of audio and video, making it an ideal core component for smart home, security monitoring, and IoT projects.

Key Features

1080P Full HD Image Quality: Provides clear images with 3MP and outstanding detail expression.
Compact T-shaped design: Mini sized modular structure for easy embedding and installation.
3.6mm undistorted lens: With a 95 ° wide viewing angle, it can cover a wider area without deforming the edges of the image.
WiFi wireless connection: Supports H.264, eliminates wiring troubles.
Remote real-time monitoring: View live streaming footage anytime, anywhere through a mobile app.
Built in microphone: supports environmental sound collection, enabling synchronous recording and monitoring of audio and video.

Technical Specifications

Sensor	1/2.9"
Pixel	3MP
Compression Format	H.264/H.265
Frame Rate	1920×1080@25fps
Audio	Supported
Working Voltage	DC 12V
Product Size	18mm × 42mm
Working Temperature	<70°C
Power Consumption	0.25W
Model	HCW-CM183
Lens Specifications	F.NO: 3.0mm Focal length: 2.2 Distortion: <-1.0% Component: 4E+IR Angle: D=95° H=83° V=55°
Chip Type	CMOS

Professional Customization Services

We offer comprehensive OEM/ODM customization services to meet unique visual requirements:

Lens customization: Specific focal length, field of view angle, distortion control
Customized casing: Dedicated casing, bracket, or fixing method based on device structure
Cable and interface: Custom cable length and interface types (USB, Android, etc.)
Camera type customization: USB, AHD, CVBS, wired network, wireless WiFi cameras
Pixel customization: 1MP to 12MP options available

Application Fields

Industrial automation, machine vision, precision equipment monitoring, security systems, embedded access control, concealed monitoring, vehicle monitoring, smart home security, endoscope imaging, laboratory monitoring, DVR systems, traffic monitoring, retail terminals, drone/robot vision, education/conference systems, and various embedded devices requiring compact visual solutions.

Support and Services

Our expert team provides comprehensive technical support and services to ensure optimal product experience:

Online product documentation and user manuals
Email and phone technical support
Customized solutions tailored to specific needs

Lens specification sheet:Specification for 3.6mm undistorted lens.pdf
About our more products:Huachuang Finished Product List.xls
