2MP CCTV Security Camera Mini Square Infrared Night Vision USB Monitoring Camera

Brand Name:	HCVsight
Model Number:	HCU-FK420(AZ)
MOQ:	50 pieces
Price:	US$39.89/50~199 pieces US$37.89/200~499 pieces US$34.19/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/ pieces/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Product Type:

USB Camera

Pixel:

2MP

Product Size:

42mmx42mm

Lens Angle:

95°(customizable)

Interface Type:

Android

Line Length:

Default 1.5 Meters (customizable)

Color:

Black

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/ pieces/month

Highlight:

2MP USB Camera

1080P Resolution USB Camera

30fps Frame Rate USB Camera

Product Description

2MP CCTV Security Camera Mini Square Infrared Night Vision USB Monitoring Camera

Product Introduction

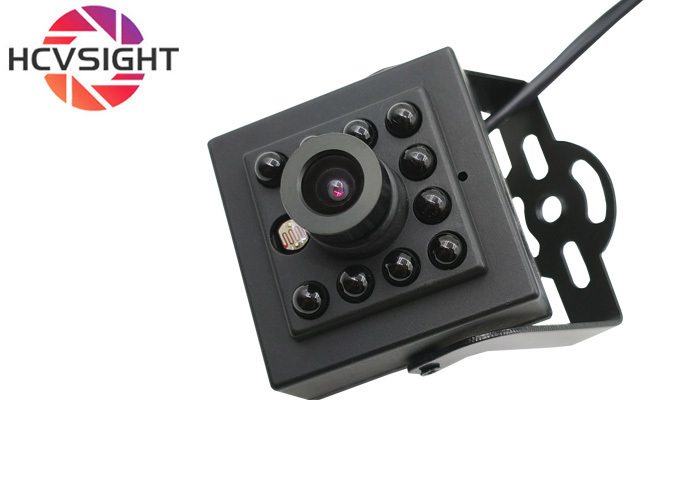

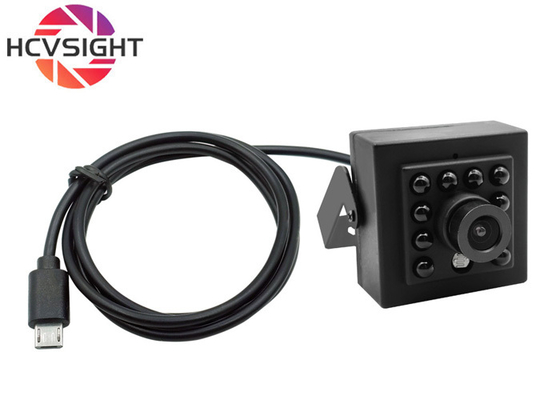

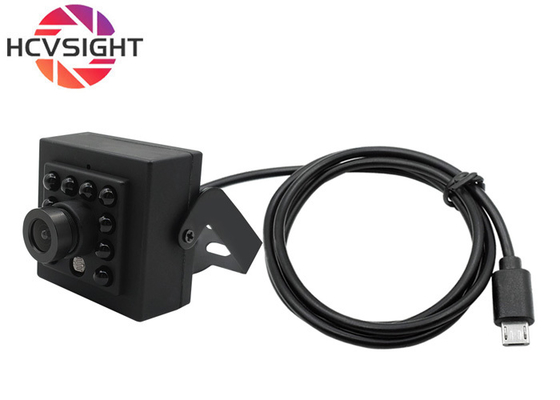

This 42mm ultimate mini square CCTV security camera combines high performance and exquisite design, making it the ideal choice for security in sensitive areas of your space. 2 million high-definition imaging provides clear and sharp 1080P level picture quality, capturing key details and eliminating blurry monitoring images.The camera features an exquisite metal square shell made of sturdy and durable material, with a compact size of only about 42mm. It's easy to hide or install in narrow corners, counters, bookshelves, door frames, computers and other positions without appearing abrupt. Equipped with high sensitivity infrared lights, it automatically switches to night vision mode in low light environments, providing clear black and white monitoring images and guarding your safety 24 hours a day.

Specifications

Sensor	1/2.8"
Pixel	2MP
Compression format	MJPG/YUV2
Frame rate	1920X1080@30fps
Audio	Support
Power frequency working voltage	DC 5V

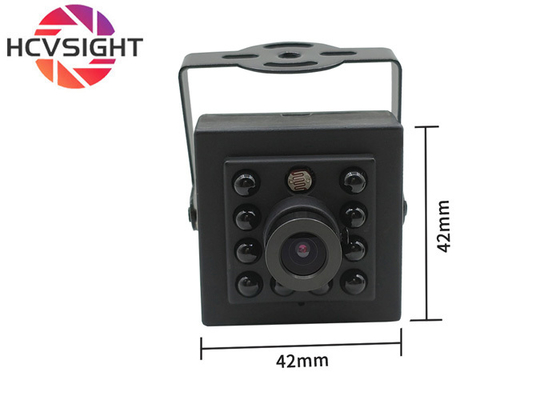

Product size	42mmx42mm
White balance	Automatic
Working temperature	<70°
Power consumption	0.25w
Model	HCU-FK420(AZ)
Interface type	Android
USB cable length	Default 1.5m (customizable)
Lens	E.F.L:3mm F.NO:2.2 MOD:0.2m Lens Distortion:-1.00% Angle: D=95° H=83° V=55°
Chip type	COMS
Support OS	Windows/Mac OS/Linux/Android

Core Features

High definition imaging: 2 million pixels high-definition resolution (1920x1080@30fps) provides delicate image quality and accurately captures details.
Excellent night vision capability: Equipped with efficient 850nm infrared night vision lights that automatically switch in low light or full black environments, ensuring clear monitoring 24 hours a day.
Exquisite body: 42x42mm size, square metal shell design ensures high temperature resistance and reliability in harsh environments.
Compact design: Easy to integrate into the environment for inconspicuous monitoring. The metal casing provides better physical protection and heat dissipation.
Wide viewing angle: 3mm fixed focus lens provides a horizontal viewing angle of approximately 83°, effectively covering small and medium-sized areas while reducing monitoring blind spots.

Professional Customized Services

We understand the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to create differentiated products.

Lens customization: Specific focal length, field of view angle, distortion control.
Customized casing: Design specialized casing, bracket, or fixing method based on device structure.
Cable and Interface: Customize cable length and interface type (USB2.0, TYPE-C).
Pixel customization: Different resolution and frame rate models (1MP, 3MP, 4MP, 5MP, 8MP, 12MP).

Application Fields

Industrial automation and machine vision, precision equipment monitoring, security systems, embedded intelligent access control, miniaturized concealed monitoring, vehicle mobile monitoring, smart home security, endoscope imaging, laboratory monitoring, vehicle DVR, traffic monitoring, retail terminals, drone/robot vision, education/conference systems, and various embedded devices requiring compact visual solutions.
