T-type Module 700TVL CVBS Camera Module Suitable For Machine Vision Camera Module

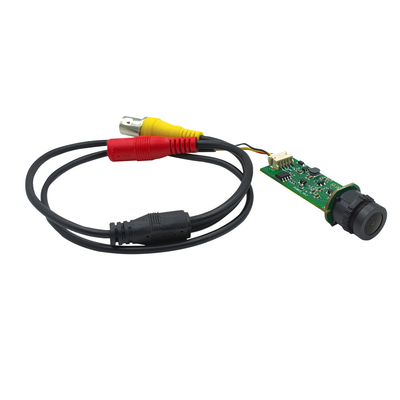

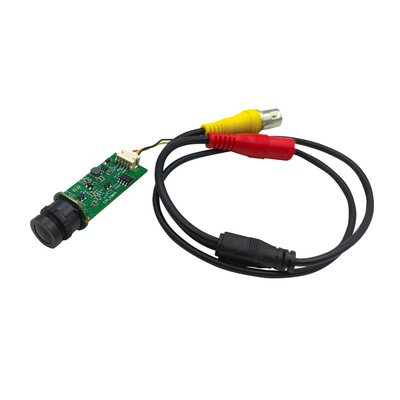

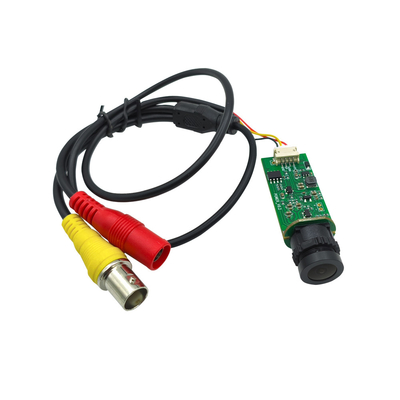

This product is a professional T-shaped structure CVBS analog camera module designed specifically for industrial inspection and machine vision fields. It adopts classic analog signal output, providing 300000 pixels to ensure rich image details and stable transmission. The module integrates a 150 ° ultra wide angle lens and adopts a compact T-shaped structure (18x42mm) with standard BNC interface, which has high compatibility and easy integration, making it an ideal choice for various security, industrial, and embedded visual applications.

• High definition imaging: Provides a resolution of 700 TV lines to ensure clear and sharp images.
• Ultra wide angle field of view: equipped with a 2.1mm lens, providing a wide 150 ° field of view and a wide coverage area.

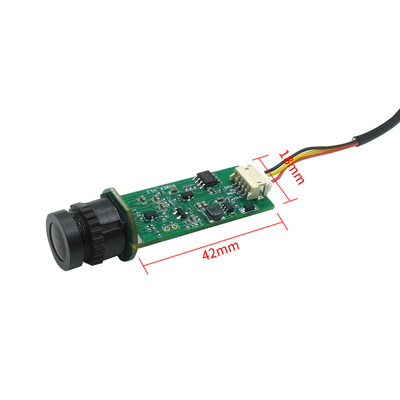

• Compact and lightweight design: T-shaped structure, with a size of only 18x42mm, easy to install and integrate.
• Stable analog signal: using CVBS composite video signal output, with strong anti-interference ability and extremely low delay.

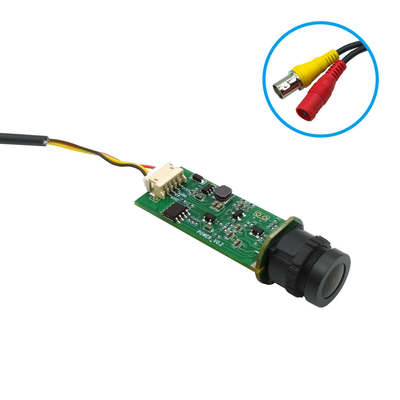

• Standard BNC interface: Using industrial standard BNC interface, the connection is stable and the signal is reliable.
• Wide voltage adaptation: Supports DC 12V DC power supply voltage to adapt to different industrial environments.

We offer comprehensive OEM/ODM customization services to meet unique visual requirements:

• Lens customization: Specific focal length, field of view angle, and distortion control
• Casing customization: Specialized casings, brackets, or mounting solutions
• Cable length customization: Tailored cable lengths for specific installations

Industrial automation, machine vision, precision equipment monitoring, security systems, embedded access control, concealed surveillance, vehicle monitoring, smart home security, endoscope imaging, laboratory monitoring, DVR systems, traffic monitoring, retail terminals, drone/robot vision, education/conference systems, and various embedded visual solutions including:

• Advertising machines and all-in-one systems
• Intelligent electronic scales
• Automatic welding equipment
• Law enforcement instruments
• External cameras for Android phones and computers
• High-speed camera applications
