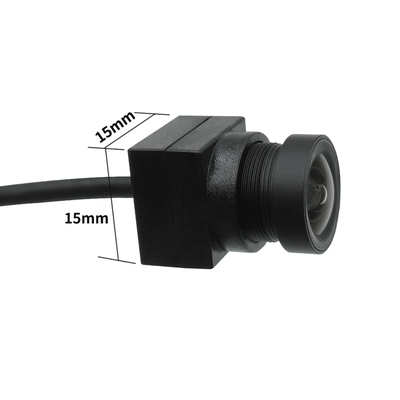

2MP 1080P 2.8mm Wide-angle Distortion-free Lens USB Camera, Mini 15x15mm Size

2MP 1080P 2.8mm Wide-angle Distortion-free Lens USB Camera, Mini 15x15mm Size

Brand Name: HCVsight
Model Number: HCU-WJB15282
MOQ: 50 pieces
Price: US$32.59/50~199 pieces US$30.96/200~499 pieces US$29.49/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/ pieces/month
Detail Information
Place of Origin:
Shenzhen China
Pixel:
2MP
Color:
Black
Product Size:
15mmx15mm
Lens Angle:
120°(customizable)
Interface Type:
USB2.0
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/ pieces/month
Highlight:

2MP USB camera with wide angle lens

,

1080P HD USB webcam

,

110° wide angle USB camera

Product Description
2MP 1080P 2.8mm Wide-angle Distortion-free Lens USB Camera, Mini 15x15mm Size
Product Introduction

This is a 2-megapixel USB mini camera that redefines "compact and high-definition". It adopts an unprecedented 15x15mm ultra miniature design, but integrates 1080P full HD image quality and a 110 ° wide-angle distortion free lens. Through the standard USB interface plug and play, without the need to install any drivers, it can bring clear, wide, and undistorted high-quality images to computers and smart devices. Whether it is video conferencing, online teaching, or content creation, it is the ideal choice for users who pursue simplicity, efficiency, and high quality.

Specifications
Sensor 1/2.9"
Pixel 2MP
Compression Format MJPG/YUV2
Frame Rate 1920*1080@30fps
Audio Supported
Working Voltage DC 5V
Product Size 15mm * 15mm
White Balance Automatic
Working Temperature <70°C
Power Consumption 0.25W
Model HCU-WJB15282
Interface Type USB 2.0
USB Cable Length Default 2m
Lens Specifications F.NO: 2.0mm
Focal Length: 2
Distortion: <-1.0%
Component: 4E+IR
Angle: D=120° H=110.8° V=76.3°
Chip Type CMOS
Supported OS Windows/Mac OS/Linux/Android

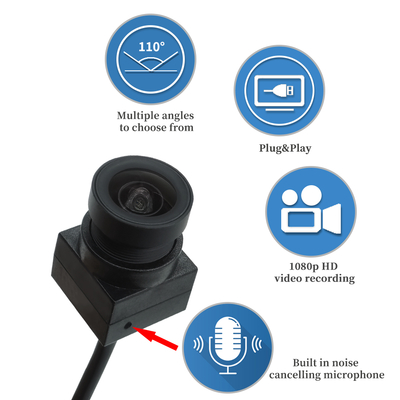

Core Features
  • Universal USB Interface: Compatible with Windows/Linux/Android systems. Optional 1.2m to 1.5m custom bending-resistant industrial cable available.
  • True Wide-Angle Imaging: Professional-grade 2.8mm fixed-focus lens with 120° diagonal field of view (FoV) and distortion-free performance.
  • 2MP HD Quality: Delivers 1920*1080@30fps Full HD output with low sensitivity of 0.1 lux.
  • Plug-and-Play: Supports UVC protocol, requiring no additional drivers.
Customization Services

We offer comprehensive OEM/ODM customization services to meet unique visual requirements for various applications:

  • Lens Customization: Specific focal length, field of view angle, and distortion control
  • Housing Customization: Dedicated casing, bracket, or mounting solutions
  • Cable & Interface: Custom cable lengths and interface types (USB/Android)
  • Resolution Options: Higher pixel models available (4MP, 5MP, 8MP, 12MP)
Application Fields
  • Industrial automation and machine vision
  • Precision equipment status monitoring
  • Security surveillance systems
  • Embedded access control/attendance
  • Miniaturized concealed monitoring
  • Vehicle mobile monitoring
  • Smart home security
  • Endoscopic imaging
  • Laboratory equipment monitoring
  • Vehicle dash cams (DVR)
  • Small traffic monitoring devices
  • Intelligent retail terminals
  • Drone/robot visual perception
  • Education/conference systems
  • Advertising displays
  • All-in-one machines
  • Electronic scales
  • Automatic welding equipment
  • Law enforcement devices
  • Android phone external cameras
  • Computer cameras
  • High-speed imaging
2MP 1080P 2.8mm Wide-angle Distortion-free Lens USB Camera, Mini 15x15mm Size 0 2MP 1080P 2.8mm Wide-angle Distortion-free Lens USB Camera, Mini 15x15mm Size 1
About our more products:Huachuang Finished Product List.xls
Lens specification sheet:2.8mm No distortion Lens.pdf
