5MP HD Outdoor IP66 Waterproof PoE 850nm IR Night Vision Security Camera

Brand Name:	HCVsight
Model Number:	HC-P5MPYSCZ-48
MOQ:	50 pieces
Price:	US$56.99/50~199 pieces US$54.14/200~499 pieces US$49.99/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE、RoHS、FCC

Pixel:

5MP

Sensor:

1/2.8 "CMOS

Product Size:

48x48mm

Lens Angle:

90°（customizable）

Support:

On-vif P2P

Connection Mode:

POE

Resolution:

2592x1944@25fps

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

5MP PoE outdoor security camera

IP66 waterproof surveillance camera

IR night vision security camera

Product Description

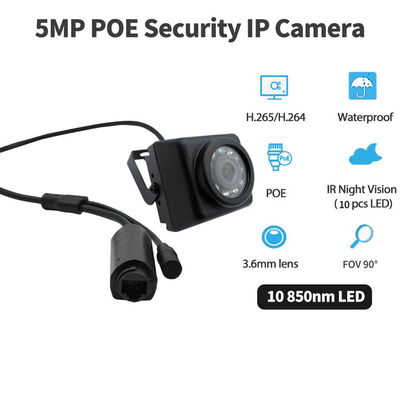

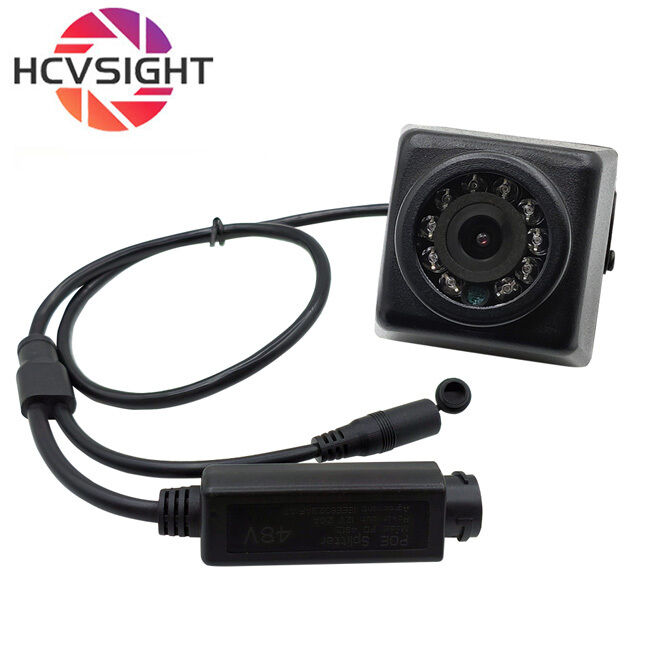

5MP HD Outdoor IP66 Waterproof PoE 850nm IR Night Vision Security Camera

This 5MP PoE infrared night vision IP camera uses a 1/2.8-inch CMOS sensor with a resolution of 2592×1944 and supports H.265 compression, making it an industrial-grade PoE camera. Supporting ONVI and P2P protocols, it is compatible with most NVRs, VMS platforms, and cloud security solutions. Designed for professional security applications where image clarity, deployment efficiency, and long-term stability are critical, it provides clear, real-time monitoring for locations such as warehouses, parking lots, factories, construction sites, retail stores, logistics centers, and perimeter surveillance.

Key Features

5MP Ultra-HD Pixels: This device utilizes a high-sensitivity 1/2.8-inch 5MP CMOS image sensor, providing a resolution of 2592×1944. This ensures superior performance in license plate recognition, vehicle identification, access control, and wide-area surveillance.
Power over Ethernet (PoE) for Cost-Effective Installation: Employing 48V PoE technology, power and data can be transmitted via a single network cable.
IP66 Waterproof for Harsh Outdoor Environments: This IP66 waterproof camera features an all-metal casing, capable of withstanding rain, snow, dust, high temperatures, and low temperatures.
Infrared Night Vision: Equipped with an 850nm infrared LED, this camera delivers low-noise black-and-white images.
H.265 Video Compression for Reduced Bandwidth and Storage: H.265 IP cameras can reduce storage footprint by up to 50% while maintaining high image quality. This makes it ideal for multi-channel NVR systems and long-term project storage needs.

Technical Specifications

Sensor	1/2.8" CMOS
Pixel	5MP
Resolution	2592x1944@25fps
Compressed Format	H.265
Lens	F.NO: 3mm, Focal length: 2.2
FOV	90°
Consumption	0.25W

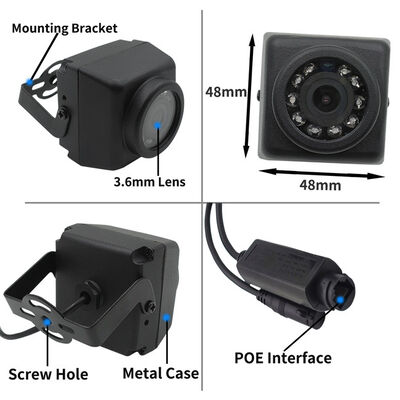

Product Dimensions	48X48mm
Operating Temp	<70°C
Interface	POE
Night Vision	10 IR 850nm LEDs
Power Supply	POE 48V
IP Rating	IP66
Model	HC-P5MPYSCZ-48
Support OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Customization Services

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

Lens customization: specific focal length, field of view angle, distortion control.
Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
Cable and Interface: Customize cable length and interface type.
Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP).

Applications

Warehouse monitoring systems
Factory production monitoring
Parking lot security
Retail store anti-theft solutions
Logistics center surveillance
School and campus monitoring
Construction site perimeter security
Residential community surveillance

FAQ

Q: Can I purchase samples?

A: Small batch samples of 1-50pcs are supported.

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
- Embedded cameras for face/object/barcode recognition
- Industrial cameras for automated inspection and measurement
- Security vision cameras for surveillance and monitoring

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A: In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

Lens specification sheet: Specification for 3.6mm lens.pdf
About our more products: Huachuang Finished Product List.xls
