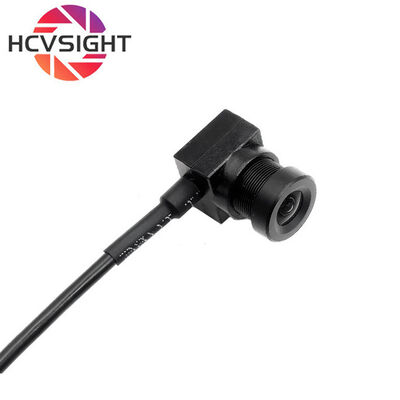

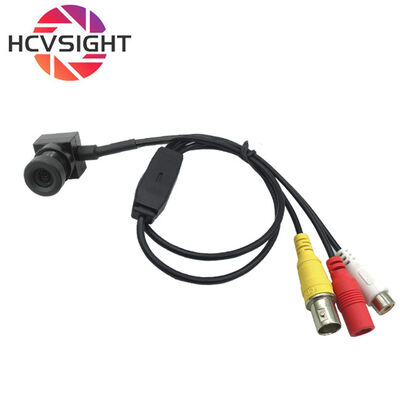

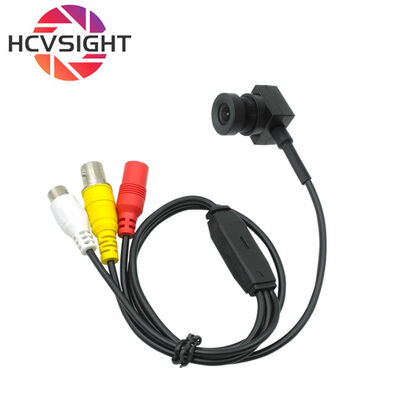

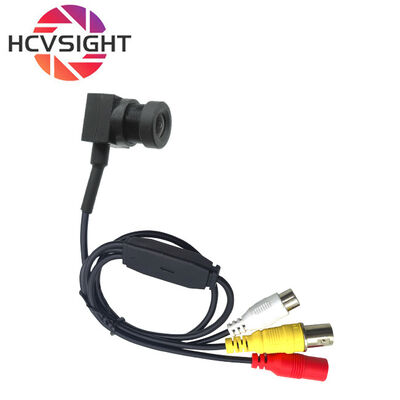

Compact Mini Camera 15×15mm AHD 1080p 2-megapixel Suitable For CCTV Cameras

Brand Name:	HCVsight
Model Number:	HCA-WJB152
MOQ:	50 pieces
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Type:

AHD Camera

Pixel:

2mp

Dimensions:

15mmx15mm

Lens Angle:

90°(customizable)

Colour:

Black

Agreement:

UTC

Working Voltage:

DC 3.3V

Frame Rate:

25fps

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

Sony 323 AHD Camera

2MP AHD Camera

No distortion camera

Product Description

Compact Mini Camera 15×15mm AHD 1080p 2-megapixel Suitable For CCTV Cameras

This mini AHD 1080p high-definition camera takes high-definition image quality and concealment to new heights with its stunning 15x15mm ultra miniature size. It is equipped with a 2-megapixel high-definition sensor and a professional 3.6mm distortion free lens, providing a clear 90 ° viewing angle while effectively avoiding the common image distortion problem of ordinary wide-angle lenses. Adopting mature AHD analog high-definition technology, seamlessly compatible with and upgrading existing coaxial cable monitoring systems through standard BNC interfaces and DC 3.3V power supply. It is the ultimate solution for concealed security, upgrading old equipment, and installing in confined spaces.

Technical Specifications

Parameter	Value
Sensor	1/2.8"CMOS
Pixel	2MP
Frame rate	1920X1080 25fps
Audio	Nonsupport
Operating voltage	DC 3.3v
Product dimensions	15mmX15mm
White balance	Automatic
Operating temperature	<70°
Power consumption	0.25w
Model No	HCA-WJB152
Interface type	BNC
Lens	EFL:3mm, F.ON:2.2, Distortion: <-1.0%, Element:4E+IR
FOV	90°

Key Features

Ultra-compact and discreet design: Measuring only 15x15mm, its extremely small size makes it a miniature marvel in the industry. The lightweight body takes up virtually no space during installation. It can be easily hidden in various corners, behind decorations, or inside equipment, achieving truly "seamless" monitoring and greatly enhancing the concealment and security of surveillance.
1080P Full HD distortion-free image quality: With 2 million effective pixels, it outputs full HD video with a resolution of up to 1920×1080, providing detail far superior to traditional analog cameras.
3.6mm distortion-free lens: Provides an optimal viewing angle of approximately 90°. Unlike ordinary wide-angle lenses, it effectively corrects edge distortion, ensuring that straight lines in the image remain horizontal and vertical, and objects are not distorted, presenting accurate visual information.
BNC video output interface: Plug-and-play compatibility with the BNC interfaces of most DVRs (Digital Video Recorders) on the market, ensuring a stable and reliable connection.

Typical Applications

1: ATM,Kiosk,POS,TV box
2: Advertising cameras
3: Smart TV built-in camera
4: Construction Equipment
5: Banking equipment
6: body switch
7: Scanner
8: a mobile terminal device
9: Medical diagnostic image acquisition
10: fingerprints, palm prints image acquisition
11: video door camera

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).

Why choose our AHD camera?

OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

About our more products:Huachuang Finished Product List.xls

Lens specification sheet:Specification for 3.6mm undistorted lens.pdf
