1080P AHD Door Peephole Surveillance Camera With 2MP Wide-angle Fisheye Lens

Brand Name:	HCVsight
Model Number:	HCA-CXMY202
MOQ:	50 pieces
Price:	US$29.59/50~199 pieces US$26.69/200~499 pieces US$24.09/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Dimensions:

(35-90mm)Adjustable

Pixel:

2MP

Frame Rate:

25fps

Sensor Type:

1/2.8''CMOS

Colour:

Black

Working Voltage:

DC 12V

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

Four In One wide angle camera

2MP wide angle camera

Cat Eye surveillance dvr

Product Description

1080P AHD Door Peephole Surveillance Camera With 2MP Wide-angle Fisheye Lens

This 1080P AHD high-definition door entry camera features a 1/2.8-inch CMOS sensor, supporting real-time 1080P HD monitoring and offering excellent low-light performance. Equipped with a 150-degree ultra-wide-angle lens, it effectively eliminates blind spots. With its universal BNC interface and 12V power input, installers can integrate the door camera into existing security systems without modifying existing wiring. The robust metal casing and adjustable length design make this camera suitable for use on various wooden doors, metal doors, and security doors in apartments, office buildings, Airbnb properties, rental properties, and hotel rooms.

Key Features:

2-Megapixel High-Definition Image Quality: Utilizing a 1/2.8-inch color CMOS image sensor, it provides 1920×1080 full HD resolution, ensuring clear and detailed images.

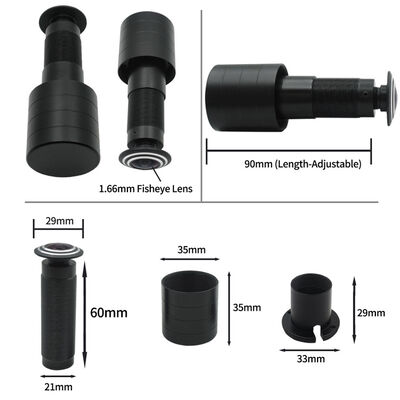

Ultra-Wide Angle Coverage: Equipped with a 1.66mm ultra-wide-angle lens, it offers a 150° ultra-wide field of view, covering most of the area in front of the door and reducing blind spots.
Low-Light Performance: With a minimum illumination of 0.01 lux, it can capture clear images even in low-light environments.
Durable Design: Features a metal casing for durability and heat dissipation, with adjustable length.
BNC Interface and 12V Power Input: Supports 12V DC power input and is fully compatible with standard AHD DVR systems, analog surveillance recorders, and most hybrid DVR platforms.

Technical Specifications:

Parameter	Value
Sensor	1/2.8"CMOS
Pixel	2MP
lens	150°(optional)
Frame rate	1920X1080 25fps
Audio	Nonsupport
Operating voltage	DC 12v
Product dimensions	(35-90mm) Adjustable
Operating temperature	<70°
Power consumption	0.25w
Model No	HCA-CXMY202
Interface type	BNC

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Why choose our AHD camera?

OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

About our more products:Huachuang Finished Product List.xls

Technical Specifications:Small Fish Eye Lens Specification Book.pdf
