1080p Industrial-grade Manual Zoom Webcam With 2.8-12mm Lens Suitable For ATM

1080p Industrial-grade Manual Zoom Webcam With 2.8-12mm Lens Suitable For ATM

Brand Name:	HCVsight
Model Number:	HCU-FK352B28
MOQ:	50 pieces
Price:	US$36.39/50~199 pieces US$34.59/200~499 pieces US$32.89/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，China

Interface:

USB2.0

Pixel:

2MP

Dimensions:

35mmx35mm

Lens Angle:

93°(customizable)

Focus Type:

Manual Hand

Protocol:

UVC

Colour:

Black

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/month

Highlight:

93°-28.7° Lens Angle USB Camera

Manual Zoom Lens USB Webcam

UVC Protocol USB Video Camera

Product Description

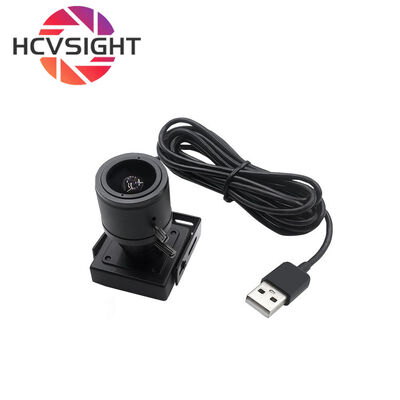

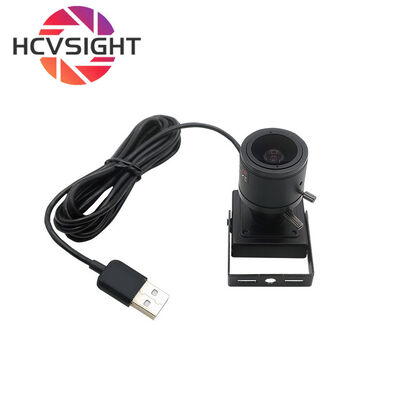

1080p Industrial-grade Manual Zoom Webcam With 2.8-12mm Lens Suitable For ATM

Product Introduction

This industrial-grade USB manual zoom camera features a 2MP CMOS sensor, a highly flexible 2.8–12mm manual zoom lens, and a compact 35×35mm housing, delivering reliable high-definition imaging in confined spaces. Its plug-and-play USB interface design ensures rapid integration and stable operation with mainstream systems, guaranteeing seamless integration with Windows, Linux, Android, and macOS platforms. This makes it ideal for large-scale production deployments, especially for applications with high demands for ease of installation, rapid configuration, and low maintenance costs. It is specifically designed for ATMs, bank self-service terminals, payment terminals, industrial inspection systems, vending machines, ticket kiosks, and access control equipment.

Key Advantages

2MP High-Definition Output: Provides clear 1920×1080 video, ideal for authentication, card slot monitoring, transaction logging, and machine vision inspection.

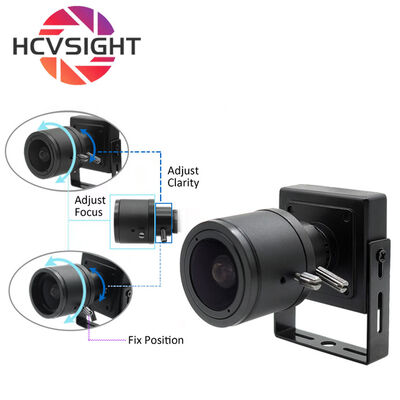

2.8–12mm Manual Zoom Lens: Adjusts the field of view (FOV) according to the installation distance, supporting ultra-close-up scenes and long-distance monitoring.

UVC Plug and Play Compatibility: No drivers required, reducing deployment costs and accelerating mass installation.

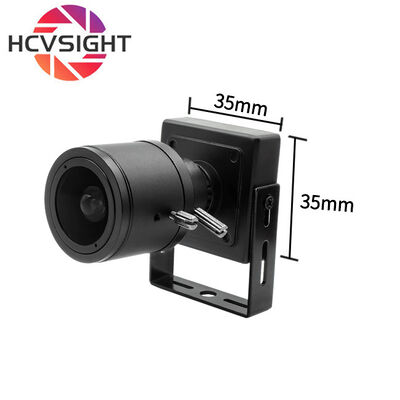

Ultra-Compact 35×35mm Design: Can be installed in ATM front panels, POS machines, self-service terminals, smart cabinets, and narrow industrial racks.

Wide Operating System Compatibility: Supports Windows/Linux/Android/macOS, suitable for machine vision and embedded systems.

Technical Specifications

Specification	Details
Sensor	1/2.9"
Pixel	2MP
Compression format	MJPG/YUV2
Frame rate	1920x1080 30fps
Operating voltage	DC 5v
Product dimensions	35mmx35mm
White balance	Automatic
Operating temperature	<70°
Power consumption	0.25w
Model No	HCU-FK352B28
Interface type	USB2.0
Lens	EFL:2.8-12mm F.ON:1.4 Distortion: <-1.0% Element:4E+IR
FOV	93°
Chip Type	COMS
Support OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Applications

This 2MP USB zoom camera features adjustable zoom, a compact body, and industrial-grade stabilization, making it ideal for a variety of applications:

ATMs and Banking Terminals
Self-Service Terminals
Industrial and Machine Vision Systems
Smart Vending and Access Control Systems
Medical Equipment and Hospital Systems
Security and Monitoring Systems

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Why Choose Our USB Camera?

We provide end-to-end imaging solutions for B2B clients requiring high reliability, rapid delivery, and technical support. Our optimized production lines ensure long-term stable supply, guaranteeing consistent quality for large-volume orders.

1. A professional engineering team with deep expertise in machine vision.
2. Rapid response and efficient communication; tailored solutions; comprehensive customization from interface to functionality; large-scale production capabilities with OEM/ODM partners.
3. Mature supply chain and rigorous quality control.
4. Reliable supply chain and strong factory capabilities.
5. Rapid sample delivery.
Flexible sourcing and sampling: Sample sourcing (1-50 pieces) supports rapid testing and reduces development risk. Bulk purchases enjoy tiered pricing discounts and support long-term cooperation.
Fast delivery and global logistics: Support for fast shipping and global logistics distribution helps companies shorten product development cycles.

Lens specification sheet:Manual Zoom Lens Specification.pdf

About our more products:Huachuang Finished Product List.xls
