| Brand Name: | HCVsight |
| Model Number: | HCU-JZ191TPC |
| MOQ: | 50 pieces |
| Price: | US$31.79/50~199 pieces US$30.29/200~499 pieces US$28.79/500~999 pieces |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

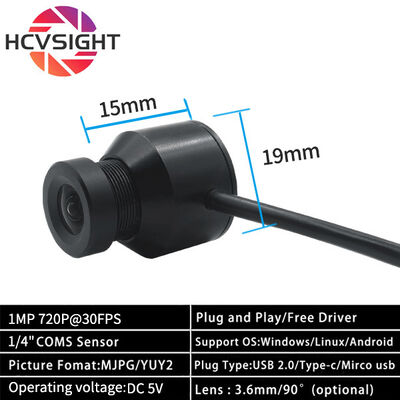

| Sensor | 1/4"CMOS |
|---|---|
| Resolution | 1MP (1280×720 @ 30fps) |
| Compression Format | MJPG/YUV2 |
| Power Requirements | DC 5V |
| Operating Temperature | <70°C |

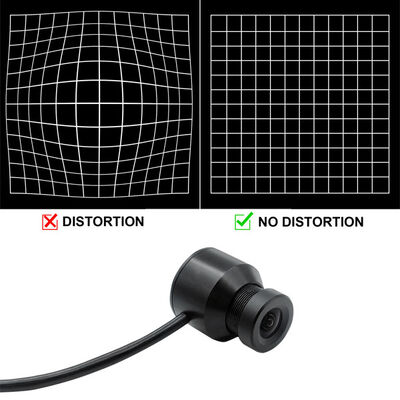

| Lens Specifications | 3mm effective length, 2.2 focal length, <-1.0% distortion |
| FOV | 90° |
| Consumption | 0.25W |
| Operating Systems | Windows / Linux / Android (driver-free UVC) |
Key Features
720P HD Imaging for Clear Monitoring: This camera features a high-quality image sensor, providing 720P HD video that clearly captures details of checkout counters, entryways, shelves, or small indoor spaces. A wide-angle lens ensures stable imaging for continuous monitoring.
Type-C Interface for Driverless Plug and Play: This camera supports driverless installation on mainstream systems (including Windows, Linux, and some Android platforms), making it ideal for large-scale deployments.
Mini Bullet-Shaped Housing for Easy Installation: The compact mini bullet-shaped camera design allows for flexible installation in confined spaces such as retail shelves, self-service terminals, POS systems, or hidden monitoring points. It is also suitable for embedded system developers and OEM projects.
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).
FAQ
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
Embedded cameras for face/object/barcode recognition
Industrial cameras for automated inspection and measurement
Security vision cameras for surveillance and monitoring
Q: Can you customize cameras?
A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
Q: What is the lead time?
A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
Lens specification sheet:Specification for 3.6mm undistorted lens.pdf
About our more products:Huachuang Finished Product List.xls
