Customized 15x15mm USB Camera 2MP Wide-angle DuPont Connector Camera With Audio

Customized 15x15mm USB Camera 2MP Wide-angle DuPont Connector Camera With Audio

Brand Name:	HCVsight
Model Number:	HCU-DBT152
MOQ:	50 pieces
Price:	US$33.59/50~199 pieces US$31.92/200~499 pieces US$28.79/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Sensor:

1/2.9"CMOS

Lens Type:

120°（Customizable）

Pixel:

2MP

Compatibility:

Windows/Mac OS/Linux/Android

Frame Rate:

30fps

Product Dimensions:

15mmx15mm

Color:

Black

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

30fps oem camera

2MP oem camera

15mm Surveillance Camera

Product Description

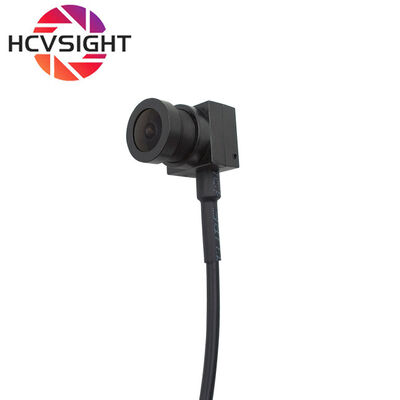

Customized 15x15mm USB Camera 2MP Wide-angle DuPont Connector Camera With Audio

This custom 15×15mm USB mini camera is an ultra-compact, high-performance imaging solution designed for robotics, IoT devices, machine vision, industrial equipment, AI terminals, smart homes, and consumer electronics. It features a lightweight 15×15mm PCB, a high-sensitivity 2-megapixel CMOS sensor, an integrated wide-angle lens, and a built-in microphone. It is UVC compliant and offers a plug-and-play USB interface and DuPont connectors for easy and rapid integration.

Key Features

2MP High-Definition Image Quality: Employs a high-quality sensor, supporting still image capture and video recording, delivering clear, detailed image quality and superior detail.

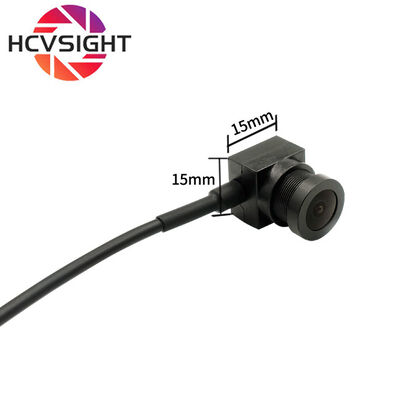

Ultra-Miniature Design: An industry-leading 15x15mm ultra-compact size. It can be integrated into virtually any device, providing immense flexibility in product design and perfectly solving space constraints.

120° Wide-Angle Lens: Equipped with a 2.1mm focal length wide-angle lens, providing a wide field of view of up to 120°. Wider coverage reduces blind spots, capturing complete images even in confined spaces, ideal for applications such as indoor monitoring and robot vision.

Built-in Microphone (with Audio): An integrated high-sensitivity microphone allows for simultaneous recording of ambient sound while capturing high-definition images, enabling synchronized audio and video recording and providing a complete multimedia experience for applications such as monitoring, video calls, and conference recording.

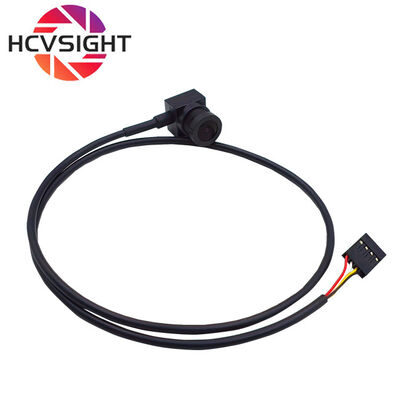

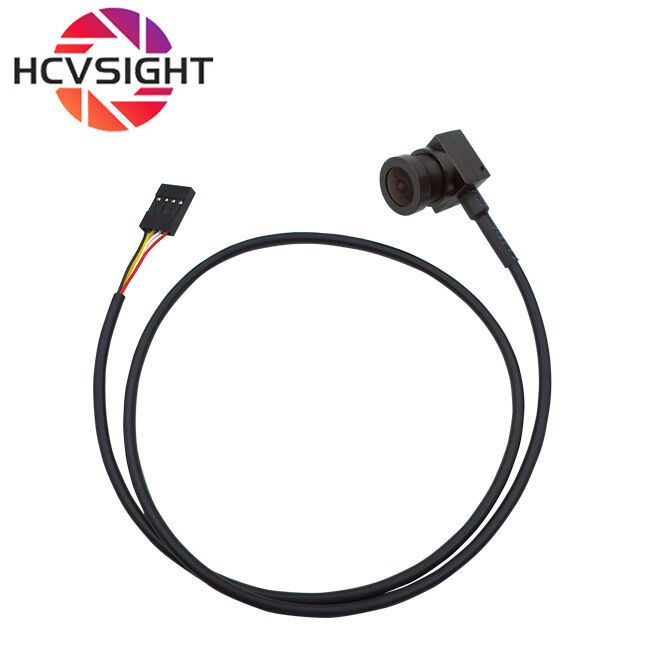

Custom DuPont Interface: Uses DuPont wire connectors instead of traditional fixed USB cables. This design offers the following significant advantages:

Flexible Installation: Cable length can be customized as needed, facilitating passage through narrow spaces.

Technical Specifications

Sensor	1/2.9"CMOS
Resolution	2MP
Video Format	MJPG/YUV2
Frame Rate	1920x1080 @ 30fps
Audio	Support
size	15mmx15mm
Power	DC 5V, 0.25W
Interface	DuPont
Lens	120°
Operating Temp	<70°C
Model No.	HCU-DBT152
Supported OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Typical Applications

1: ATMs, vending machines POS, TV Box
2: Advertising camera
3: Smart TV with built-in camera
4: Building equipment
5: Bank equipment
6: Vehicle body switch
7: Scanner
8: Various mobile terminal devices
9: Medical diagnostic image acquisition
10: Fingerprint and palmprint image acquisition
11: Video door surveillance camera

Customization Options

We have a deep understanding of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a specialized casing, bracket, or fixing method based on the structure of the device.
3. Cables and interfaces: Customize cable length and interface types.
4. Pixel customization: Provide different resolution and frame rate models (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).

5. Customized services: USB camera module, AHD camera module, CVBS camera module, wired network camera module, wireless wifi camera module, etc.

Why Choose our USB Camera?

OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

2.1mm Wide Angle Lens Specification (PDF)
Huachuang Finished Product List (XLS)
