USB 2MP HD Car Camera with Infrared Night Vision - Metal Dome Monitoring Camera

USB 2MP HD Car Camera with Infrared Night Vision - Metal Dome Monitoring Camera

Brand Name:	HCVsight
Model Number:	HCU-CZ552
MOQ:	50 pieces
Price:	US$20.99/50~199 pieces US$19.99/200~499 pieces US$17.99/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/ pieces/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Type:

Night Vision Camera

Pixel:

2MP

Dimensions:

55mmX69mm

Lens Angle:

95°(customizable)

Colour:

Black

Wire Length:

Default 2m

Night Viewing:

Support

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/ pieces/month

Highlight:

Waterproof Night Vision Camera

2MP Night Vision Camera

Spherical night vision car camera

Product Description

USB 2MP HD Car Camera with Infrared Night Vision - Metal Dome Monitoring Camera

Product Introduction

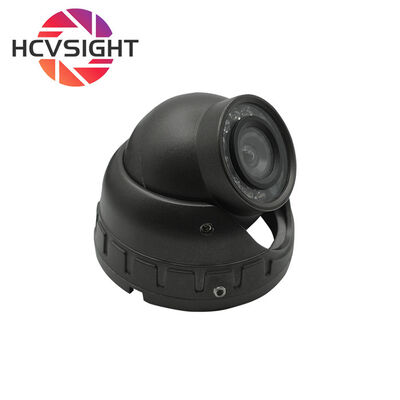

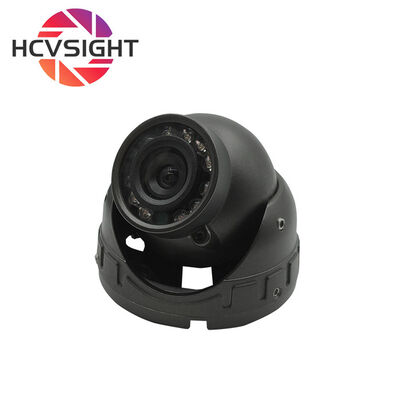

This USB 2-megapixel high-definition car surveillance camera is a multifunctional security tool that combines a sturdy metal body, high-definition image quality, and infrared night vision. It adopts a classic hemispherical design with a compact structure (55x69mm), specially designed to cope with in car and various complex environments. The plug and play USB 2.0 interface can easily connect to the driving recorder host, industrial computer, computer, and even smart devices that support OTG. Built in 940nm infrared light without red exposure, providing clear and completely concealed nighttime imaging, making it a reliable partner for 24-hour uninterrupted high-definition monitoring.

Key Features

2 million high-definition imaging: using high-performance sensors, supporting 1080P full HD image quality (1920 * 1080 resolution), outputting clear and sharp images with rich details, effectively capturing important details such as license plates and faces, meeting professional monitoring needs.
Durable metal shell: The all metal shell design not only has outstanding texture, but also has excellent heat dissipation, impact resistance, and electromagnetic interference resistance. It is more durable than plastic shells and can adapt to harsh conditions such as high temperature and vibration in the car environment, extending its service life.
No red exposure infrared night vision: Built in 940nm wavelength infrared light-emitting diode. This wavelength of infrared light is completely invisible (without red exposure) during nighttime illumination, achieving true covert monitoring without attracting attention or being detected due to the emission of visible red light, with extremely high safety and concealment.

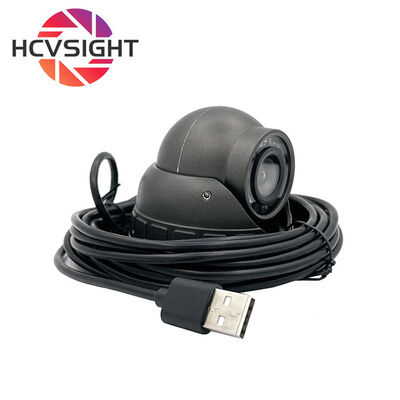

Plug and play USB interface: Standard USB 2.0 interface, highly compatible. No additional drivers are required, and various devices with USB ports can be directly connected, such as desktop computers, laptops, smart TVs, and dedicated car central control or recorder hosts, with simple and fast installation.

Technical Specifications:Specification for 3.6mm lens.pdf

Sensor	1/2.9"
Resolution	2MP
Video Format	MJPG/YUV2
Frame Rate	1920x1080 @ 30fps
Power	DC 5V, 0.25W

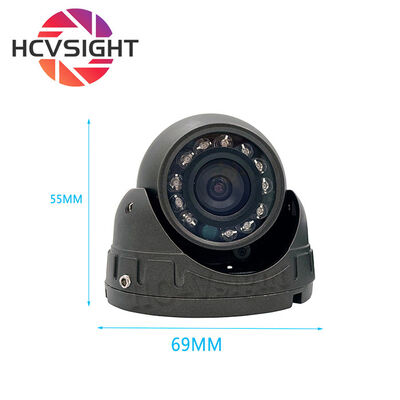

Dimensions	55×69mm
Lens	3mm EFL, F2.2, 95° diagonal FOV
Operating Temp	Up to 70°C
Model No.	HCU-CZ552

Applications

Vehicle monitoring and recording: As an auxiliary monitoring camera for private cars, trucks, and taxis, it is installed in the front/rear seats of the car to record the situation inside the car, prevent disputes, and ensure the safety of drivers and passengers. It can be connected to the car recorder or car computer through USB.
Computer video conferencing: replacing the low-quality cameras that come with laptops, providing clearer and more professional video images for remote work and online teaching, with a more textured metal appearance.
Desktop level security monitoring: By directly connecting to a home or office computer and using monitoring software such as iSpy, ContaCam, etc., a small high-definition monitoring system can be built to monitor homes, shops, and warehouses.
Concealed security monitoring: Its no red exposure feature makes it very suitable for places that require concealed defense, such as museums, exhibition halls, private studios, etc., to conduct security monitoring without disturbing others.

Customization Options

Interface types: USB 2.0, Type-C, Android
Cable lengths: 1-10 meters
Lens options: Wide-angle, standard (M12 interface)
Resolution: 2MP to 12MP
Infrared options: 940nm night vision
OEM/ODM support available

Download Customization Options (XLS)
