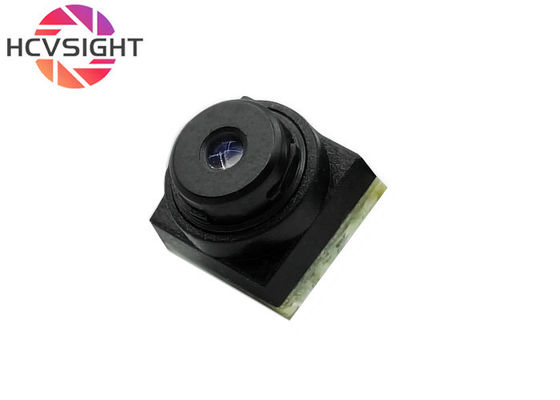

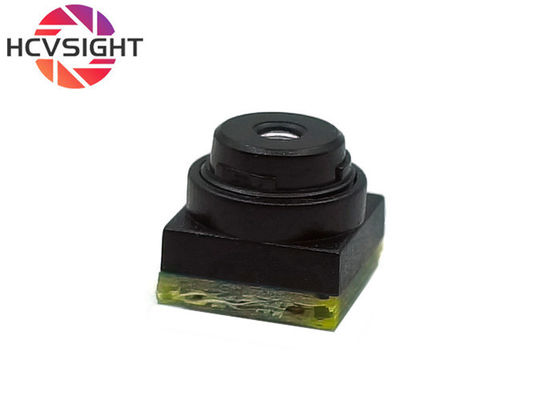

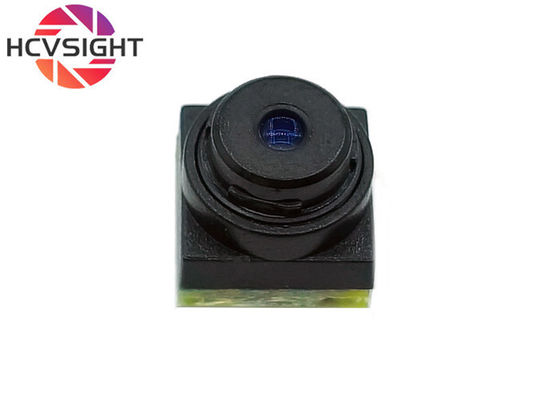

Mini small 6mm Indoor Security AHD Camera Module Suitable For CCTV Cameras

720P high-definition picture quality: equipped with a high-performance sensor of 1 million pixels, supporting 1280x720 resolution high-definition video output. The image quality is clear and sharp, superior to traditional analog cameras, and can meet the detail recognition needs in most scenes.
Ultra micro structure: The ultimate compact size of 6mm × 6mm is a model of miniaturization design in the industry, making it easy to directly embed into various narrow spaces and devices, providing great flexibility for product design.
Standard focal length and precise viewing angle: equipped with a 3.3mm focal length lens, providing a viewing angle of approximately 68 °. This perspective is closer to the human eye's observation range and can effectively reduce the distortion of wide-angle lens edges, obtaining more realistic and undistorted images. It is very suitable for scenes that require accurate judgment of targets, such as facial recognition, behavior analysis, etc.
Seamless upgrade of AHD technology: adopting advanced AHD technology, supporting long-distance, latency free high-definition video signal transmission. The biggest advantage lies in its perfect compatibility with existing coaxial cable cabling systems, using standard BNC interfaces to directly interface with DVR recorders that support AHD format, achieving a smooth upgrade from analog to high-definition at low cost.

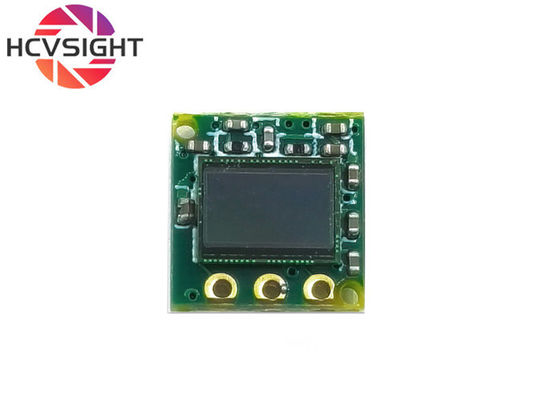

High reliability embedded module: As a core functional module, it eliminates unnecessary structural components, has high circuit integration, and runs stably and reliably. Specially designed for secondary development and large-scale production, facilitating manufacturers to integrate into their own complete machine products.

FAQ

Q: Can I purchase samples?

A: Small batch samples of 1–50pcs are supported.

Question 1: Does this camera run on Linux without installation?

A: Yes. It is fully compliant with UVC standards and plug-and-play.

Question 2: Can I customize the lens, field of view, or cable?

A: Yes. Lenses with different fields of view and cable lengths can be customized.

Question 3: What is the lead time?

A: In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

Question 4: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

- Embedded cameras for face/object/barcode recognition

- Industrial cameras for automated inspection and measurement

- Security vision cameras for surveillance and monitoring
Question 6: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
