1080P Wide-Angle Wi-Fi Access Control Camera With Wireless IR Remote Monitoring

1080P Wide-Angle Wi-Fi Access Control Camera With Wireless IR Remote Monitoring

Brand Name: HCVsight
Model Number: HCW-163
MOQ: 50 pieces
Price: US$52/50~199 pieces US$49.34/200~499 pieces US$46.89/500~999 pieces
Payment Terms: T/T
Supply Ability: 100,000 pieces per month
Detail Information
Place of Origin:
ShenZhen,China
Certification:
CE、RoHS、FCC
Lens:
160°(Customizable)
Sensor:
1/2.9”CMOS
Sensor:
1/2.9”CMOS
Pixel:
3MP
Pixel:
3MP
Color:
Argentate
Microphone:
Built-in/External
Connection Mode:
Wifi
Power:
DC 5V/2.0A
Night Vision Function:
Support
Warranty Period:
1 Year Warranty
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100,000 pieces per month
Highlight:

CMOS wifi camera

,

3mp wifi camera

,

WiFi cat eye camera

Product Description
1080P Wide-Angle Wi-Fi Access Control Camera With Wireless IR Remote Monitoring

This 1080P wide-angle WiFi peephole camera is a new generation of wireless peephole cameras. Utilizing advanced wireless WiFi technology, it eliminates the need for cumbersome wiring; simply connect to your home WiFi network to remotely monitor your home anytime, anywhere via your mobile phone or computer. It features a 160° wide-angle peephole camera, advanced infrared night vision, real-time remote monitoring, and low-latency WiFi transmission. In addition to supporting wireless storage, it can also insert a high-capacity SD card to locally save important videos, ensuring data security and integrity even with unstable networks. A built-in microphone and speaker enable real-time communication, allowing you to answer and communicate remotely via your mobile phone or computer, making your home safer. It is designed for homeowners, distributors, and security solution providers who require reliable, high-definition, and easy-to-install entryway monitoring equipment.

Key Features

Ultra-Clear HD Video: This peephole camera features 3MP high-definition pixels, providing accurate color reproduction and minimizing exposure issues to ensure users receive clear, distortion-free visitor images.

160° Wide-Angle Lens for Complete Doorway Coverage: A key advantage of this wide-angle peephole camera is its 160° field of view, significantly expanding the visibility range of traditional peepholes.

Superior Night Vision Performance: Built-in infrared night vision captures clear images even in complete darkness.

Real-Time Remote Monitoring and WiFi Connectivity: The built-in wireless WiFi module allows users to view live video, receive alarms, and review recordings via a mobile app.

Easy Installation and High Compatibility: Designed to replace traditional mechanical peepholes, this wireless peephole camera requires no complex wiring for installation. Its compact size fits most standard doorways, making it ideal for large-scale deployments such as real estate projects, renovations, and hotel upgrades.

Dual Voice Intercom: Supports two-way voice communication, allowing for clear conversations with visitors outside the door via mobile phone.

Multi-device sharing: Supports simultaneous connection and viewing by multiple devices, allowing family members to share surveillance footage and jointly protect their home.

Technical Specifications
Sensor 1/2.9"CMOS
Pixel 3MP
Compression format H.265
Frame rate 2480x1080 25fps
Audio Support
Operating voltage DC 5V/2.0A
IP Rating IP66
Storage Support Cloud Storage/TF Card( Max 128GB)

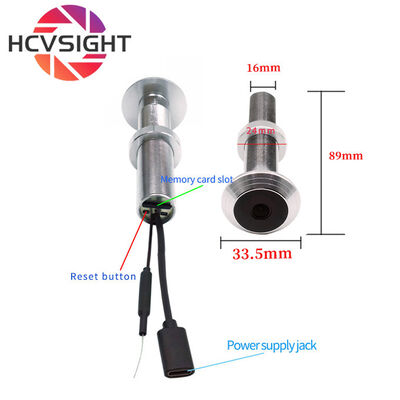

Dimensions Lens diameter 33.5mm, body diameter 16mm, total length 89mm
Lens specifications

EFL:2.63mm, F.ON:2.5, Angle:160°, Thread:M7x0.35

Technology

2.4G Wifi Wireless

IR LED 8 Pcs IR LED
Model No HCW-163
Product Application

Home entrance door security: replacing traditional cat eyes as the first line of defense for households, an intelligent monitoring tool that can real-time monitor the situation outside the door.
Remote reception and communication: When a visitor or courier arrives at their doorstep, they can have a visual conversation through their mobile phone even if they are not at home.
Safety protection for solitary individuals: Provide a safety barrier for women or elderly people living alone, and confirm their identity before opening the door.
Shop welcome monitoring: installed at the entrance of the shop, used for welcoming reminders and recording customer flow, balancing customer service and security functions.
Temporary security for renting: This product is a simple and effective temporary security solution when it is inconvenient to install large monitoring equipment for renting.

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).

FAQ
Q: Can I purchase samples?
A: Small batch samples of 1-50pcs are supported.
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
- Embedded cameras for face/object/barcode recognition
- Industrial cameras for automated inspection and measurement
- Security vision cameras for surveillance and monitoring
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
Q: What is the lead time?
A: In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
