2MP USB Camera 19mmx20mm CMOS Sensor for Windows/Mac/Linux

Name: 2MP USB Camera 19mmx20mm CMOS Sensor for Windows/Mac/Linux
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCU-JZ192
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCU-JZ192
MOQ:	50 pieces
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Lens Type:

Customizable

Sensor Type:

CMOS

Pixel:

2mp

Color:

Black

Product Dimensions:

19mmx20mm(Base Size Is Not Included)

Compatibility:

Windows/Mac OS/Linux/Android

Interface:

USB 2.0

Lens:

90°（optional）

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

2MP USB camera with CMOS sensor

compact USB camera for Windows Mac Linux

19mmx20mm USB webcam for PCs

Product Description

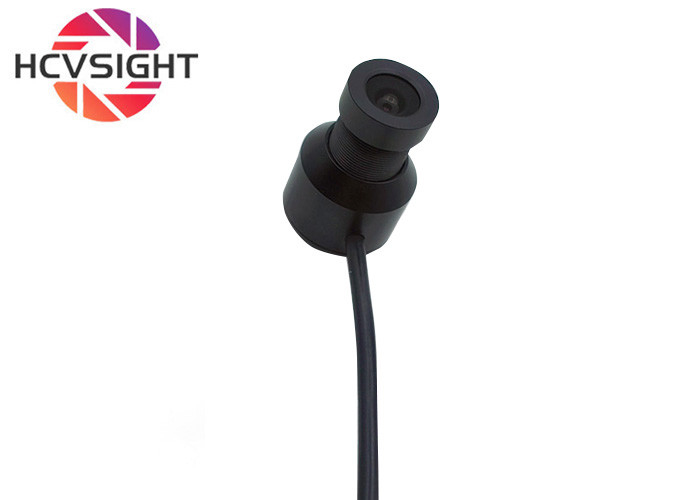

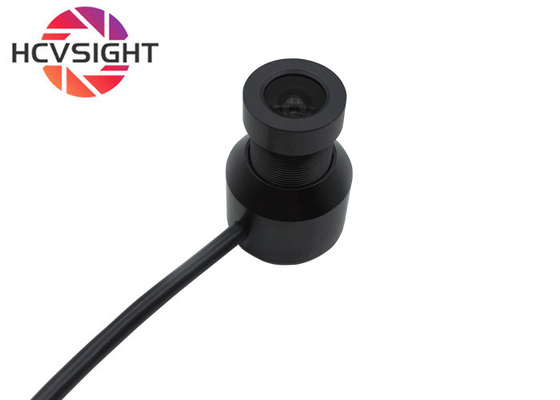

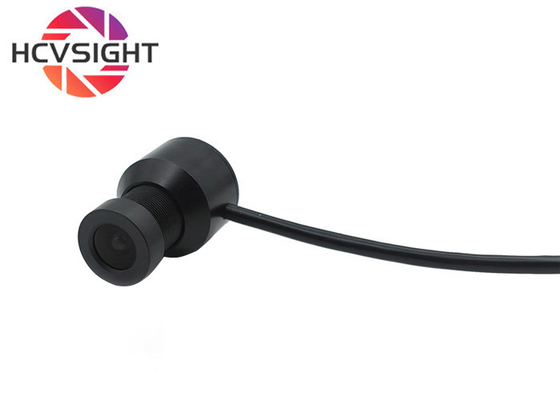

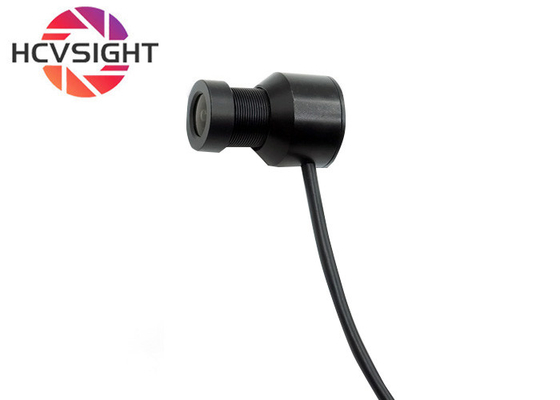

Home Security Mini Bullet Micro HD Camera 2MP High Definition CCTV Camera

Product Overview

This high-performance USB camera delivers 2MP resolution for clear, detailed imaging. With plug-and-play functionality via USB 2.0 interface, it automatically configures with Windows, Mac OS, Linux, and Android devices for versatile monitoring, photography, and machine vision applications.

Technical Specifications

Parameter	Value
Sensor	1/2.9"
Resolution	2MP
Frame Rate	1920*1080 @ 30fps
Compression Format	MJPG/YUV2
Audio Support	Yes
Power Requirement	DC 5V, 0.25W
Operating Temperature	<70°C
Lens Specifications	3mm effective length, 2.2 focal length, 95° diagonal angle
Interface	USB 2.0
Model	HCU-JZ192

Key Features

Plug-and-play USB 2.0 connectivity for immediate use
Built-in microphone for audio capture and communication
Protective lens cover included
Compact dimensions: 19mm * 20mm (excluding base)
Wide compatibility with Windows, Mac OS, Linux, and Android systems

Applications

Ideal for various machine vision and monitoring applications including:

ATM and banking machines
Medical equipment and hospital systems
Vending and advertising machines
Industrial automation and robotics
Security surveillance systems
Law enforcement equipment

Customization Options

Available with various customization options:

Resolution options from 1MP to 12MP
Multiple size configurations available
Various interface options: USB, AHD, CVBS, wired network, wireless WiFi
Focus options: fixed or autofocus

Brand: HCVsight | Model: HCU-JZ192 | Origin: Shenzhen, China

Support & Services

Comprehensive support package includes:

Detailed product documentation
Email and phone technical support
Remote desktop assistance
Repair and replacement services
Custom solution development
