2MP USB Camera with 175° Wide Angle for Industrial Monitoring

Brand Name:	HCVsight
Model Number:	HCU-DMY212
MOQ:	50 pieces
Price:	US$43.99/50~199 pieces US$41.79/200~499 pieces US$39.69/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

2mp

Compatibility:

Windows/Mac OS/Linux/Android

Frame Rate:

30fps

Product Dimensions:

(36-90mm)Adjustable

Sensor Type:

CMOS

Interface:

USB 2.0

Angle:

175°

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

2MP USB industrial camera

175° wide angle USB camera

USB camera for industrial monitoring

Product Description

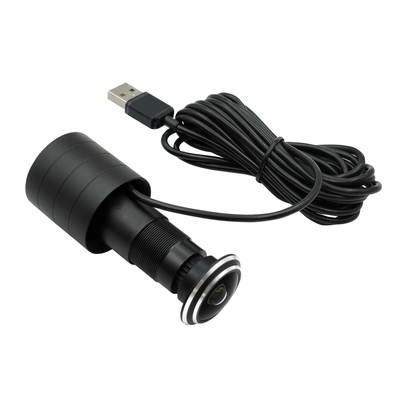

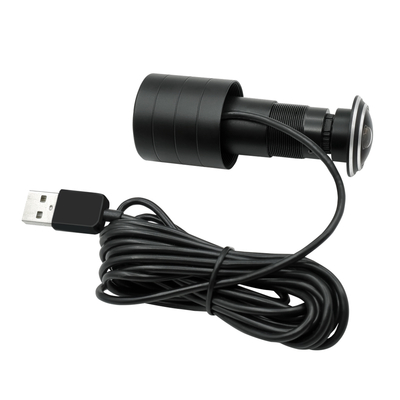

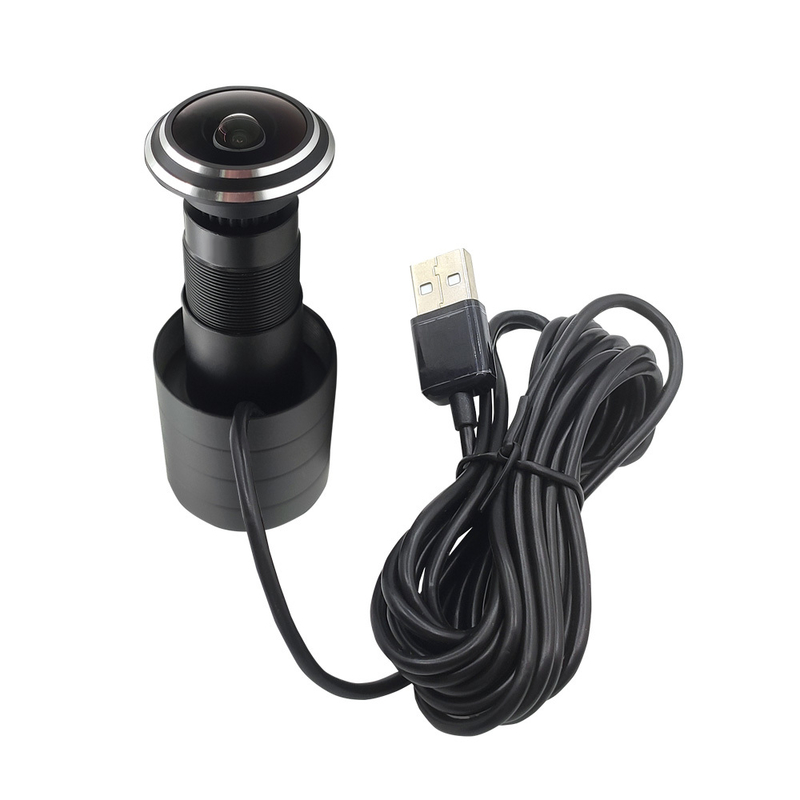

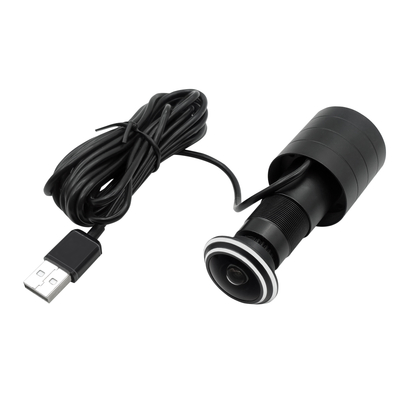

Cat Eye Camera USB Wide-angle Fisheye Lens for Plug and Play Industrial Monitoring

Product Overview

This USB port 1080p HD wide angle computer camera features an ultra-large 175° field of view (FOV) that significantly reduces monitoring blind spots. The fisheye lens design captures surrounding scenes comprehensively, ensuring no important details are missed. Ideal for both home security and industrial applications.

Key Features

175° ultra-wide viewing angle for maximum coverage
1080p HD resolution at 30fps for clear imaging
Plug-and-play USB 2.0 interface for easy installation
Compatible with Windows, Mac OS, Linux, and Android systems
Compact adjustable design (36-90mm)
Industrial-grade construction with operating temperature up to 70°C

Technical Specifications Big Fish Eye Lens Specification Book.pdf

Specification	Detail
Sensor	1/2.9"
Resolution	2MP (1920x1080)
Frame Rate	30fps
Lens	EFL:2.1mm, F.ON:2.4, 7G+650IRCUT elements
Viewing Angle	D=175° H=132° V=96°
Interface	USB 2.0 (2m cable included)
Power	DC 5V, 0.25W consumption
Operating Temperature	<70°C
Model Number	HCU-DMY212
