5.5mm CVBS Endoscope Camera 30W Pixel 50fps Waterproof

Name: 5.5mm CVBS Endoscope Camera 30W Pixel 50fps Waterproof
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCC-NKJ30
Price: 26.69 USD
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCC-NKJ30
MOQ:	50 pieces
Price:	US$29.99/50~199 pieces US$28.49/200~499 pieces US$25.69/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Signal:

CVBS

Pixel:

30W

Standard:

PAL/NTSC（Default PAL）

Color:

Black

Sensor Type:

CMOS

Frame Rate:

50fps

Product Size:

5.5mmX37mm

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

50fps av endoscope

300000 Pixel av endoscope

30W endoscope av

Product Description

5.5mm AV Waterproof Endoscope Snake Eye Inspection Camera With LED Lighting

Product Introduction

The mini AV detection endoscope uses photoelectric technology to detect areas that are difficult to reach. You can directly connect the endoscope to any TV or display device with an AV port, which can instantly and vividly display the detection area, helping you diagnose damaged parts, solder joints, and machine equipment, saving time and improving production efficiency. This endoscope is equipped with a 5.5mm IP67 waterproof camera probe and 6 adjustable high-intensity LED lights, making it an affordable solution for home inspection, wire inspection, drainage, HVAC, automotive, and industrial applications.

Key Features

Adopting an ultra-fine diameter design of only 5.5mm: with a length of 37mm, it has unparalleled passability. It can easily pass through the gaps, holes, and pipelines of most devices, achieving non-destructive testing and greatly reducing the difficulty and cost of maintenance.
Adjustable LED lighting: The front end of the probe integrates high brightness, low-power LED beads, and users can manually and continuously adjust the brightness of the light according to the brightness of the detection environment.
Waterproof and oil resistant design: The probe part adopts professional waterproof sealing technology, with IP67 or higher protection level.
Standard AV (BNC) output: using the most universal and stable AV signal output (via BNC interface), with strong compatibility. It can be directly connected to any portable monitor with AV input interface, car monitor, old DVR recorder, or connected to a home TV through an adapter, plug and play, stable and reliable.
High flexibility cable: equipped with high-quality, bend resistant shielded cables (usually 1-5 meters in length), with internal tensile fibers for durability. The wire is soft and has a certain shaping ability, which can be easily guided to the parts that need to be tested.

Technical Specifications

Specification	Detail
Sensor	1/9"
Pixel	0.3MP
Signal	CVBS
Frame rate	640X480 50fps
Operating voltage	DC 12v
Product dimensions	5.5mmx37mm
Operating temperature	<70°
Power consumption	0.25w
Model No	HCC-NKJ30
Interface type	AV
Standard	PAL/NTSC (Default PAL)

Application Scenarios

Its extremely fine, waterproof, and dimmable characteristics make it a core tool in the following fields:
Industrial machinery maintenance and inspection: Precisely inspect the interior of machinery such as engines, gearboxes, pump bodies, valves, etc. for wear, cracks, blockages, or foreign objects, and quickly diagnose faults without disassembly.
Car and motorcycle maintenance: used to inspect parts of the car interior that are difficult to directly observe, such as cylinder walls, fuel injectors, pipes, valves, etc., greatly improving maintenance efficiency.
Pipeline and hole exploration: Check for blockages, rust, and welding inside building water pipes, drainage pipes, and air conditioning pipes; Explore the condition of walls and interior structures.
Research and Teaching: Used for dissecting, observing specimens, or conducting precision experiments in laboratories and teaching institutions, providing a unique perspective.
Home DIY and security: can be used to inspect corners of houses and inside electrical appliances; It can also be used as a special concealed monitoring device, installed in extremely subtle locations.
Physical evidence search: Relevant law enforcement agencies can use it to search for physical evidence and conduct on-site investigations in small spaces without damaging the scene.

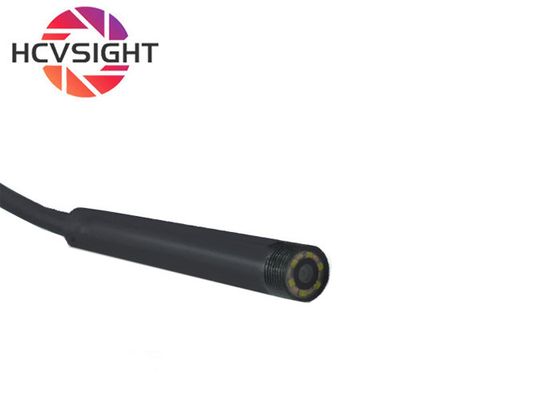

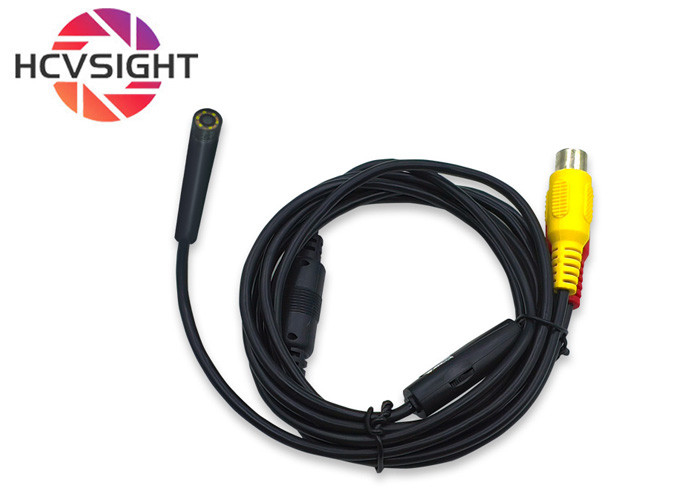

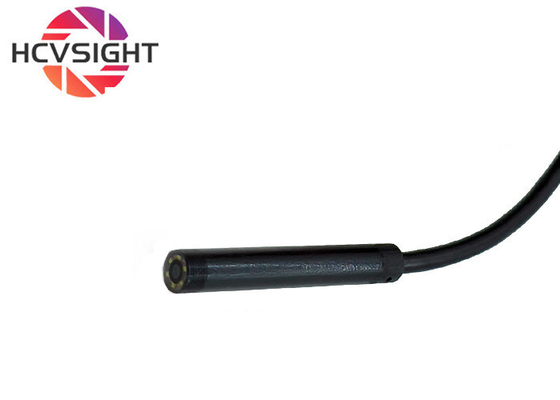

Product Images

Ordering Information

Brand: HCVsight

Model: HCC-NKJ30

Origin: Shenzhen, China

MOQ: Negotiable

Price: Negotiable

Packaging: Anti-static carton bag (110mm×93mm×41mm)

Delivery: 2-3 weeks

Payment: T/T

Capacity: 100,000 units/port

Customization Options

We offer various camera modules including USB, AHD, CVBS, wired network, and wireless wifi options. Available in multiple resolutions from 1MP to 12MP, with fixed focus or autofocus capabilities. Diverse product sizes available from 6mm×6mm to 38mm×38mm.

Download Finished Product List (XLS)

Support & Services

Installation assistance and troubleshooting
Driver and firmware updates
Compatibility testing with different systems
Product customization and development
Warranty and repair services
