4MP PoE IP Camera 1080p HD Infrared Night Vision Mini Bullet Security Camera

Brand Name:	HCVsight
Model Number:	HCW-BTYS304
MOQ:	50 pieces
Price:	US$44.99/50~199 pieces US$42.79/200~499 pieces US$38.59/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE、RoHS、FCC

Type:

Night Vision Camera

Pixel:

4MP

Dimensions:

30mmX76mm(Base Npt Included)

Lens Angle:

90°(customizable)

Waterproof:

IP65 Water-proof

Night Vision:

Infrared

Sensor:

1/2.8"CMOS

Power Supply:

POE 48V

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

4MP Night Vision Camera

Network Night Vision Camera

Pen Holder poe surveillance camera

Product Description

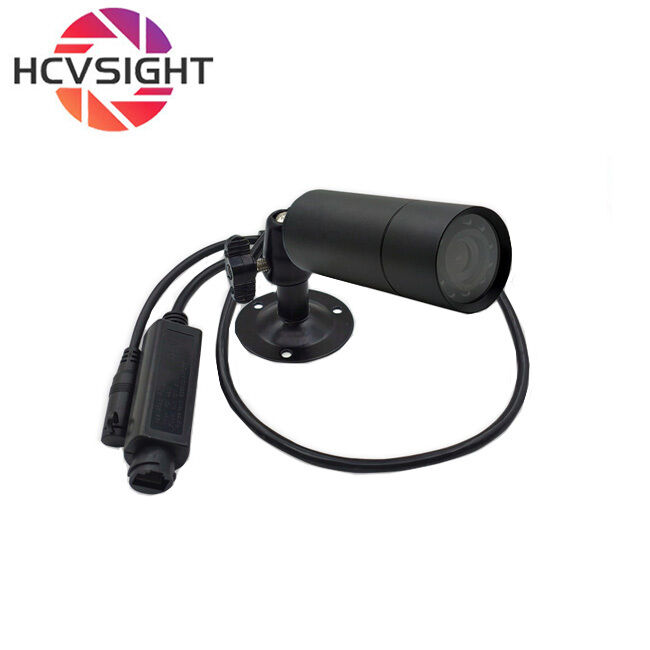

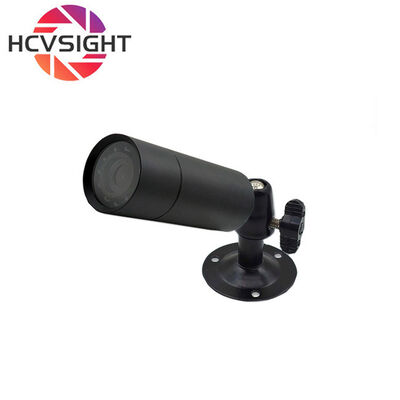

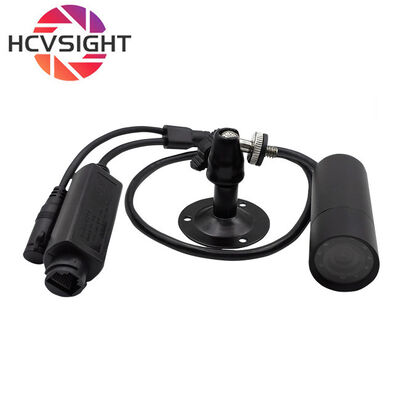

4MP PoE IP Camera 1080p HD Infrared Night Vision Mini Bullet Security Camera

This 4 megapixel POE network camera redefines the standard for miniaturized professional surveillance with its excellent imaging quality, minimalist installation method, and powerful night monitoring capabilities. It adopts a sturdy pen holder shaped metal shell design, with exquisite dimensions (30mm x 76mm), but it is equipped with a powerful 4 megapixel sensor and an efficient POE power supply module. With just one Ethernet cable, data transmission and device power supply can be completed simultaneously, greatly simplifying wiring engineering. Whether it is a home, shop or office space, it can provide uninterrupted high-definition monitoring day and night, making it an ideal choice for users who pursue efficiency, stability and high-definition picture quality.

Product functions and features

Ultra-clear 4MP image quality: Equipped with a 4MP high-definition sensor, outputting a resolution of up to 2560x1440 (2K), offering image quality far exceeding traditional 1080P cameras.

Supports PoE (Power over Ethernet) standard: During installation, only a standard Ethernet cable needs to be connected to a PoE-enabled switch or PoE power supply to simultaneously complete network data transmission and power supply.

High-efficiency infrared night vision, all-weather protection: Equipped with 10 high-quality infrared LEDs and a high-sensitivity chip, it automatically switches to black-and-white night vision mode in low-light or complete darkness.

Durable, mini pen holder design: The 30mm x 76mm pen holder design is compact, understated, and professional. The metal casing not only improves heat dissipation and extends service life but also enhances impact and damage resistance, making it suitable for various harsh indoor and outdoor environments.

Supports mainstream ONVIF protocol: It is easily compatible with various NVRs (Network Video Recorders) and platform software that support the ONVIF protocol, enabling plug-and-play and rapid deployment.

Technical Specifications

Sensor	1/2.8"CMOS
Pixel	4MP
Compression format	H.264/H.265
Frame rate	2560x1440 25fps
Audio	Not supported

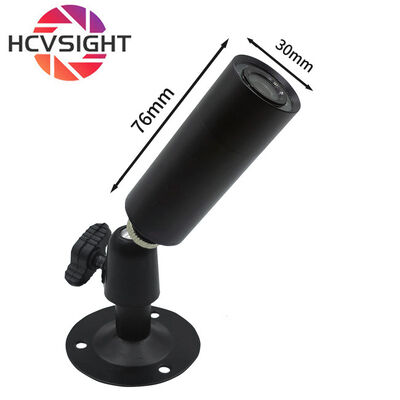

Dimensions	30mmx77mm (Base not included)
Operating temperature	<70°C
Power consumption	0.25w
Night vision	Infrared
FOV	90°
Model No	HCU-BTYS304
Interface type	POE
Night vision	10Pcs 940nm IR Leds
Power Supply	POE 48V
Waterproof	IP65 Water-proof

Application Scenarios

Ideal for machine vision and equipment monitoring in:

ATM machines and banking equipment
Medical testing and reporting systems
Vending machines and digital signage
Industrial automation and robotics
Security systems and law enforcement equipment
Flame monitoring and specialized industrial applications

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP)

Why Choose our POE Night Vision Camera?

OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

Download customization options (XLS)

Download full specifications (PDF)
