4MP Machine Vision RJ45 Bullet-shaped IP Camera Suitable For Industrial Security

4MP Machine Vision RJ45 Bullet-shaped IP Camera Suitable For Industrial Security

Brand Name:	HCVsight
Model Number:	HCW-BT204WL
MOQ:	50 pieces
Price:	US$45.99/50~199 pieces US$43.69/200~499 pieces US$40.99/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Compression Format:

H.265

Pixel:

4mp

Frequency Operating Voltage:

DC 12v

Lens:

90°（Customizable）

Color:

Black

Sensor:

1/2.8”CMOS

Frame Rate:

25fps

Product Size:

20mmX80mm

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

4MP WIFI Camera

25fps WIFI Camera

CCD Water cannon camera

Product Description

4MP Machine Vision RJ45 Bullet-shaped IP Camera Suitable For Industrial Security

This 4-megapixel machine vision RJ45 bullet-shaped IP camera uses a high-sensitivity 1/2.8-inch CMOS sensor to produce clear and sharp 2560×1440 resolution images. It supports RJ45 Ethernet interface, IP network transmission, and RTSP video streaming. No complex installation is required; a single Ethernet cable is all that's needed for power and data transmission. It is fully compatible with machine vision software, embedded computing platforms, and factory monitoring systems. The camera's compact bullet-shaped housing design supports a wide operating temperature range, ensuring reliable operation in environments with vibration, dust, humidity, or long-term 24/7 operation. Designed for applications such as factory automation, AOI inspection, robotics, and industrial security, it meets the needs of professional OEMs, system integrators, and industrial equipment developers for stable imaging, high-precision inspection, and long-term operational reliability.

Technical Parameters

Sensor	1/2.8"CMOS
Pixel	4MP
Compression format	H.265
Frame rate	2560x1440 25fps
Audio	nonsupport
Frequency operating voltage	DC 12v

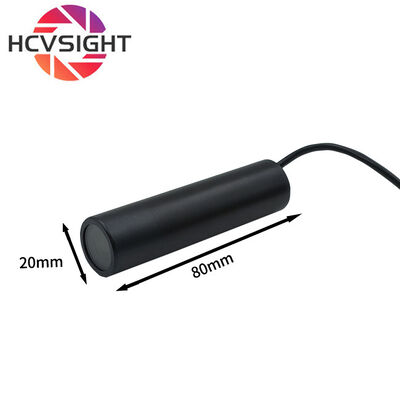

Product dimensions	20mmX80mm
Power consumption	0.25w
Model No	HCW-BT204WL
Intenface type	RJ45
Lens	EFL:3mm F.ON:2.0 Distortion: <-1.0% Element:4E+IR
FOV	90°
Waterproof	IP65 Water-proof

Product Features

1. Employs a high-sensitivity 1/2.8-inch CMOS sensor, generating clear and sharp 2560×1440 resolution images, suitable for edge detection, barcode recognition, defect detection, and real-time industrial monitoring.
2. Supports RJ45 Ethernet interface, IP network transmission, and RTSP video streaming, fully compatible with machine vision software, embedded computing platforms, and factory monitoring systems.

3. Features a rugged and durable metal housing, supporting a wide operating temperature range, ensuring reliable operation in environments with vibration, dust, humidity, or long-term 24/7 operation.

4. Its compact gun-style design also makes it suitable for space-constrained locations and robotic applications, robotic arms, or enclosed machine enclosures.

5. Supports network video recorders (NVRs), central management systems, and third-party video management system platforms, enabling unified monitoring of multiple production areas.

Product Application

1: ATM,Kiosk,POS,TV box
2: Advertising cameras
3: Smart TV built-in camera
4: Construction Equipment
5: Banking equipment
6: body switch
7: Scanner
8: a mobile terminal device
9: Medical diagnostic image acquisition
10: fingerprints, palm prints image acquisition
11: video door camera

Customization

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.

5.Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

About our more products: Huachuang Finished Product List.xls

Technical Parameters :Specification for 3.6mm lens.pdf
