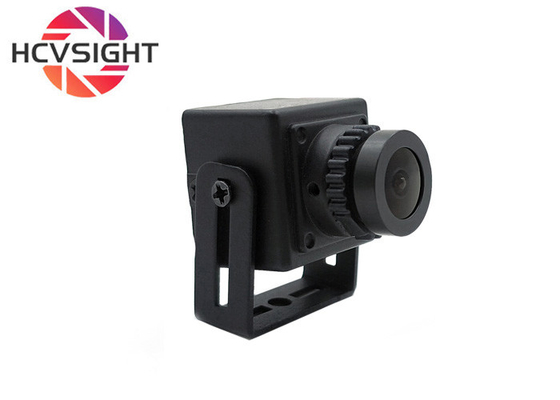

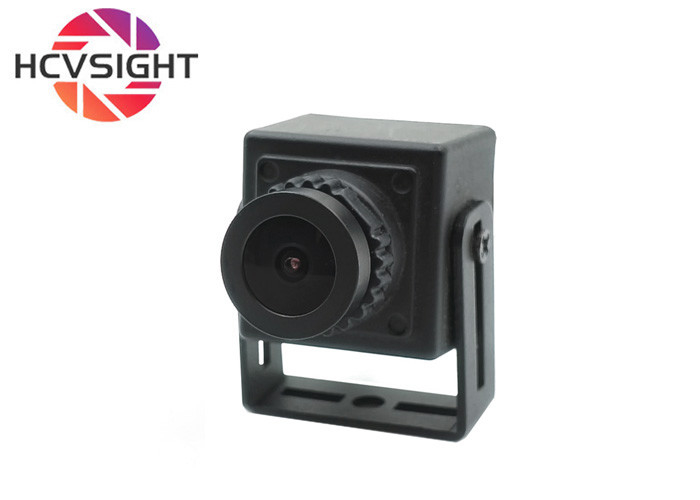

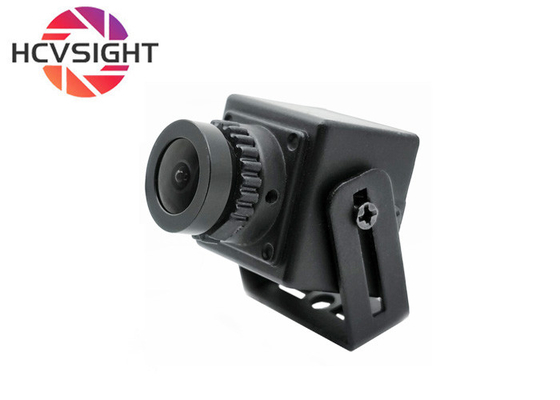

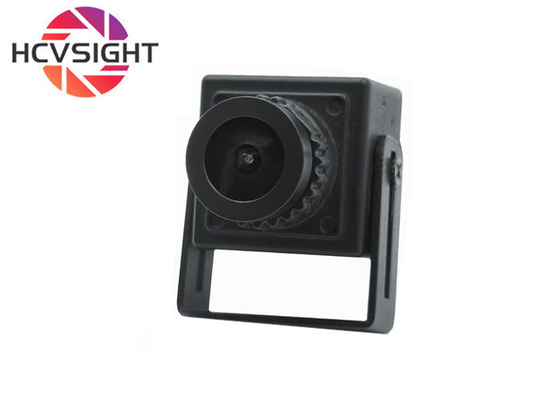

20×20mm Small Square AHD Camera 2MP Indoor CCTV Security Surveillance Camera

Name: 20×20mm Small Square AHD Camera 2MP Indoor CCTV Security Surveillance Camera
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCA-FK202G
Price: 28.29 USD
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCA-FK202G
MOQ:	50 pieces
Price:	US$31.89/50~199 pieces US$30.29/200~499 pieces US$27.29/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Power Frequency Working Voltage:

DC 12V

Pixel:

2MP

Color:

Black

Sensor Type:

CMOS

Frame Rate:

P To 25fps/N To 30fps

Product Size:

20mmX20mm

Signal:

AHD

Standard:

PAL/NTSC（Default PAL）

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

2MP wide angle surveillance camera

20mm wide angle surveillance camera

Sony 323 hd camera

Product Description

20×20mm Small Square AHD Camera 2MP Indoor CCTV Security Surveillance Camera

This 20mm square AHD high-definition camera is a surveillance camera that uses advanced Analog High Definition (AHD) technology. It is an ideal choice for security monitoring in homes, shops, offices, and other places due to its compact and exquisite square design (only 20x20mm), 1080P full HD image quality brought by 2 million pixels, and 150 ° ultra wide angle lens. No need for complex settings, plug and play, compatible with traditional coaxial cable systems, allowing you to easily upgrade old analog monitoring systems to the high-definition era at the lowest cost and enjoy a clear and delicate monitoring experience.

Key Features

2MP high-definition resolution for clear image capture
Ultra-wide-angle lens (150° diagonal, 120° horizontal, 60° vertical)
Compact 20×20mm square design
AHD compression format
1080p resolution at 25fps
Low power consumption (0.25W)
BNC interface connection

Technical Specifications

Specification	Detail
Sensor	1/2.8"
Pixel	2MP
Compression format	AHD
Frame rate	1920×1080 @ 25fps
Power	DC 12V
Product size	20mm×20mm
Working temperature	<70°C
Power consumption	0.25 watts
Interface type	BNC
Lens specifications	Effective length: 2.8mm, Focal length: 2.1, Distortion: <-89%
Chip type	CMOS
Standard	PAL/NTSC (Default PAL)

Product Details

Brand: HCVsight

Model: HCA-FK202G

Place of Origin: Shenzhen, China

Color: Black

Packaging: Anti-static carton bag (110×93×41mm)

Compatibility: Windows/Mac/Linux

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

Lens customization: specific focal length, field of view angle, distortion control.
Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
Cable and Interface: Customize cable length and interface type.
Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP).
Customized services: USB camera module, AHD camera module, CVBS camera module, wired network camera module, wireless wifi camera module, etc.

Support & Services

Installation assistance and troubleshooting
Driver and firmware updates
Compatibility testing with different operating systems
Product customization and development

Lens specification sheet:2.1mm Wide Angle Lens Specification.pdf
About our more products:Huachuang Finished Product List.xls
