4 Million HD Mini Bullet IP Camera For Industrial Machine Vision Monitoring

4 Million HD Mini Bullet IP Camera For Industrial Machine Vision Monitoring

Product Description:

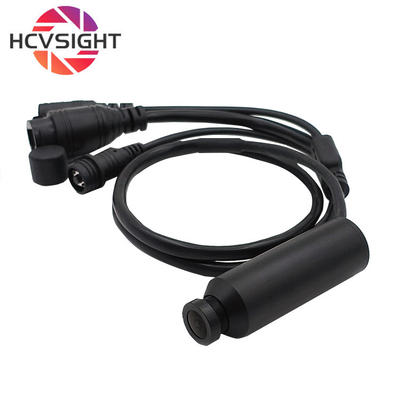

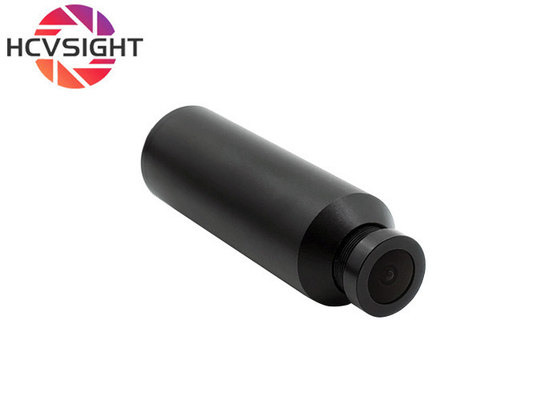

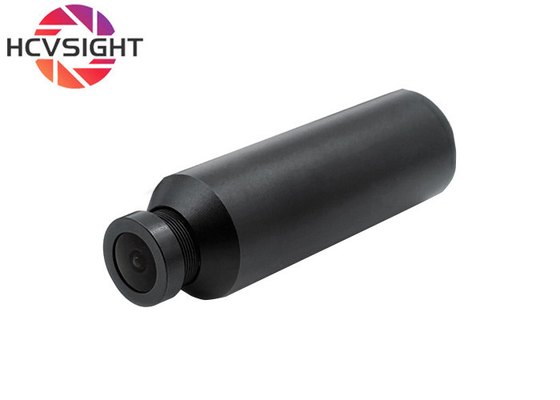

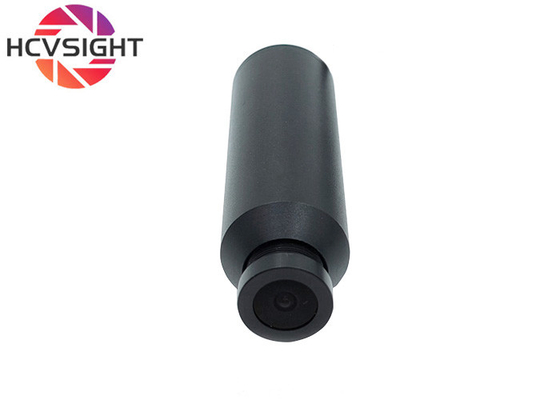

This network RJ45 high-definition camera has excellent imaging capability of 4 million pixels, with clear, realistic and delicate images. Adopting a bullet head design and equipped with a 120 ° wide-angle lens, the field of view is wider. Perfectly compatible with the Hikvision ONVIF protocol, it has excellent versatility and scalability, and can be easily integrated into various monitoring systems, compatible with a variety of industrial equipment. Whether it's security monitoring in bustling commercial areas or monitoring the operation of industrial machinery and equipment, it can accurately capture every moment and provide you with stable, high-definition, and intelligent monitoring services, making it an effective choice for building security networks.

Technical Parameters: 2.1mm Wide Angle Lens Specification.pdf

Core functions and technical features

1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors.

2, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.

3. Excellent imaging performance: 4 million pixel high-definition sensor, supporting up to 2560×1440@25fps The image output is clear and smooth, meeting the requirements of high-precision image acquisition. High resolution images capture rich details, improving image recognition accuracy and measurement accuracy.
4. Industrial grade reliability: Wide temperature operating range: Designed to adapt to industrial grade temperatures (such as -20 ℃~70 ℃), ensuring stable operation in harsh environments.

Customization: Huachuang Finished Product List.xls

Brand Name: HCVsight

Model Number: HCW-ZDT204

Place of Origin: ShenZhen,China

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: Anti-static bag in Paper box(110mmx93mm41mm)

Delivery Time: 2-3weeks

Payment Terms: T/T

Supply Ability: 100000/pieces/mouth

Color: Black

Product dimensions: 20mmX65mm(Base npt included)

Frame Rate: 25fps

Customization Services: USB camera , AHD camera, CVBS camera , wired webcam , wireless wifi camera , etc.

High pixels, 1mp 2mp 4mp 5mp 8mp 12mp and other highest pixel reached 12 million. There is a fixed focal length and autofocus, Product size is diversified, the same pixel size can be selected, the product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc.At the same time, the size can be extremely small, and it can be said that the smallest products on the market currently (only AHD / USB / CVBS, no storage, no transmission function).Which can be independently selected according to the application scenario.

Precision application field

Industrial Automation and Machine Vision:
Precision dimension measurement: high-precision online detection of component dimensions and product appearance.
Automated Appearance Inspection (AOI): Product surface scratches, defects, stains, and printing quality inspection.
Character Recognition (OCR/OCV): Product serial number, production date, barcode, QR code reading.
Target positioning and guidance: robotic arm grasping guidance, alignment and fitting, AGV/AMR navigation.
Robot Vision: Empowering industrial robots with "eyes" to achieve intelligent operations.
Intelligent monitoring and security:
Industrial site monitoring: production line process monitoring, equipment operation status monitoring, warehouse management.
Compact security equipment: integrated into small access control systems and smart door locks.
Mobile monitoring devices: core components of portable recorders and law enforcement recorders.
Smart devices and the Internet of Things (IoT):
Intelligent access control/attendance: facial recognition, card recognition assistance.
Intelligent retail: customer flow analysis, shelf monitoring, self-service settlement terminals.
Medical equipment assisted imaging: endoscope assisted, simple medical detection equipment.
Educational/research equipment: microscope imaging, experimental process recording, teaching demonstration.
Scanning device: high-precision handheld or embedded scanning gun/scanning module.
Drone/Robot Vision: Small drone image transmission, robot environment perception.
Other fields:
Video conference camera core: miniaturized high-definition conference equipment.
Intelligent transportation assistance: vehicle mounted recorder, simple vehicle recognition.
Portable detection instrument: integrated into various portable devices that require visual functions.
