720P USB Bullet Camera 1MP CMOS for Industrial Security

Name: 720P USB Bullet Camera 1MP CMOS for Industrial Security
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCU-ZDT181
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCU-ZDT181
MOQ:	negotiable
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Interface:

USB 2.0

Pixel:

1mp

Color:

Black

Product Dimensions:

18.5mmx23mm(Base Npt Included)

Sensor Type:

CMOS

Lens Type:

Customizable

Frame Rate:

30fps

Compatibility:

Windows/Mac OS/Linux/Andriod

Agreement:

UVC

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

720P USB bullet camera

1MP CMOS security camera

industrial USB surveillance camera

Product Description

720P USB Bullet Camera 1MP CMOS for Industrial Security

Product Attributes

Attribute	Value
Interface	USB 2.0
Pixel	1MP
Color	Black
Product dimensions	18.5mm × 23mm (Base npt included)
Sensor Type	CMOS
Lens Type	Customizable
Frame Rate	30fps
Compatibility	Windows/Mac OS/Linux/Android
Agreement	UVC

Product Description

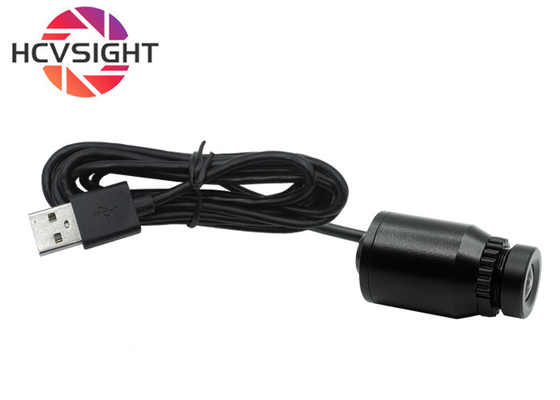

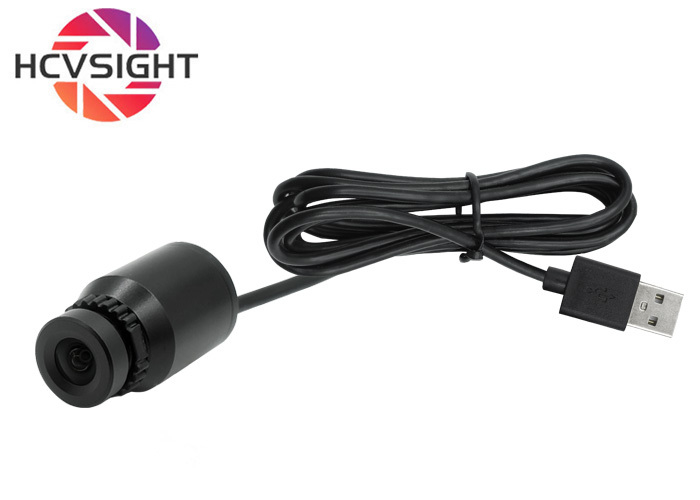

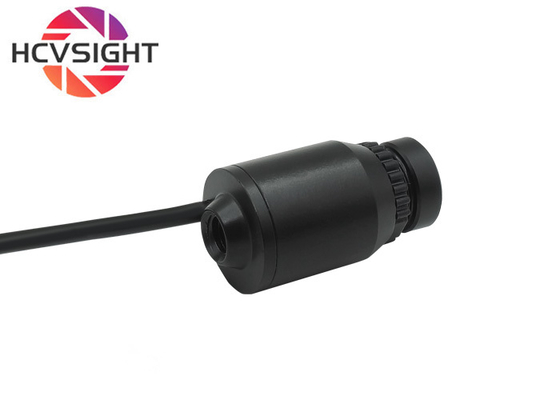

720P Mini Bullet USB Driver-free Camera, Suitable For Industrial Security Cameras

The USB Bullet-Shaped camera features a compact design with dimensions of 18.5mm × 23mm, making it highly portable for use with desktop computers, laptops, or tablets. Equipped with a high-quality CMOS sensor and USB 2.0 interface, it delivers excellent image quality with fast data transfer for smooth, lag-free video performance.

Technical Parameters

Sensor: 1/4"

Pixel: 1MP

Compression format: MJPG/YUV2

Frame rate: 1080×720 30fps

Audio: Not supported

Operating voltage: DC 5V

White balance: Automatic

Operating temperature: <70°C

Power consumption: 0.25W

Model No: HCU-ZDT181

Interface type: USB2.0

USB cable length: Default 2m

Lens: EFL:3mm, F.ON:2.2, Distortion: <-1.0%, Element:4E+IR, Angle:D=95° H=83° V=55°

Chip Type: CMOS

Support OS: WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Product Advantages and Application Scenarios

Signal stability with years of camera module development experience to minimize interference
Excellent compatibility with Windows, Android, Mac OS, and Linux systems
High color accuracy developed through extensive environmental testing for optimal performance
Ideal for machine vision applications including ATMs, medical equipment, vending machines, robotics, industrial automation, security surveillance, and flame monitoring systems

Customization Options

Brand: HCVsight | Model: HCU-ZDT181 | Origin: Shenzhen, China

Customizable lens options
Flexible packaging solutions
Multiple size options from 6mm×6mm to 38mm×38mm
Various module types including USB, AHD, CVBS, wired, and wireless options

Minimum order quantity and pricing are negotiable with 2-3 week delivery time. Payment terms: T/T. Supply capacity: 100,000 pieces/month.

Support and Services

Comprehensive technical support including installation assistance, troubleshooting, firmware updates, and driver downloads. Training and consulting services available to maximize product benefits.
