Mini 720P USB Bullet Camera Suitable For Wearable Law Enforcement Devices

Mini 720P USB Bullet Camera Suitable For Wearable Law Enforcement Devices

Brand Name: HCVsight
Model Number: HCU-BT201TC
MOQ: 50 pieces
Price: US$32.89/50~199 pieces US$31.29/200~499 pieces US$29.69/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Place of Origin:
ShenZhen,China
Lens Type:
90°(Customizable)
Compatibility:
Windows/Mac OS/Linux/Android
Interface:
Type-c
Pixel:
1mp
Frame Rate:
30fps
Sensor:
1/4"CMOS
Color:
Black
Product Dimensions:
20mmx80mm
Power Requirement:
DC 5V
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/mouth
Highlight:

1MP USB Camera

,

Portable Bullet Camera

,

Wearable Device Micro USB Camera

Product Description

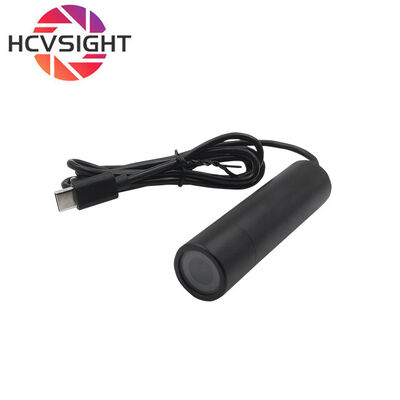

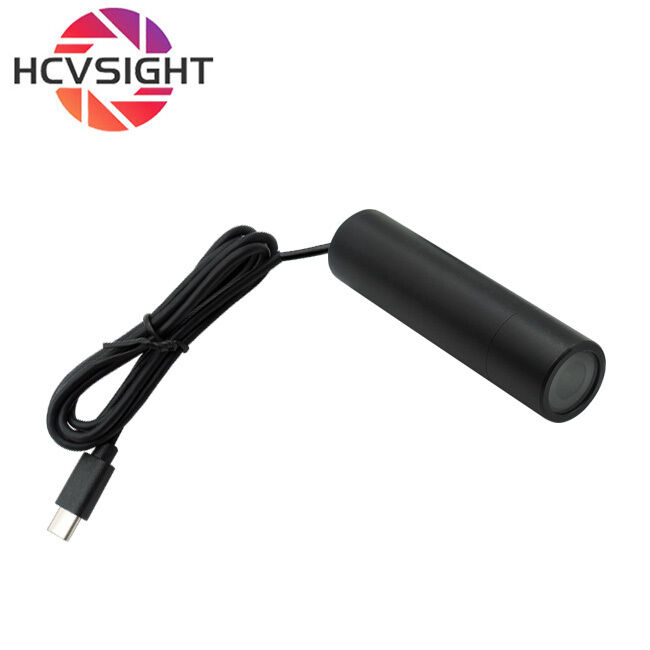

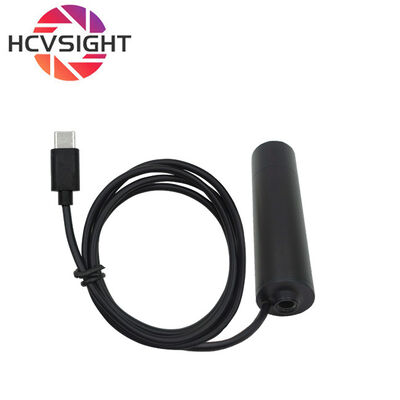

Mini 720P USB Bullet Camera Suitable For Wearable Law Enforcement Devices

This mini 720P USB bullet camera is a compact, lightweight, and highly reliable micro-camera module. With its mini bullet-shaped design (20×80mm), plug-and-play Type-c interface, and stable 720P HD video performance, this portable camera provides an ideal solution for industries requiring small imaging devices that combine durability, clarity, and customization flexibility.It supports Windows, Linux, and Android OTG devices and is fully optimized for long-term operation, achieving low power consumption. This camera can be integrated into helmets, smart wearables, robots, self-service kiosks, vending machines, inspection tools, law enforcement equipment, and various embedded systems.

Product functions and features

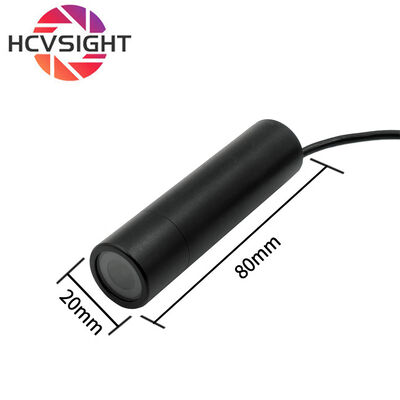

1. Compact Mini Bullet Design: This miniature bullet camera is only 20mm in diameter and 80mm in length, allowing for easy mounting in confined spaces such as helmets, shoulder mounts, machines, or control panels. Its lightweight design ensures comfortable wear and recording.

2. Stable 720P HD Video Quality: Equipped with a 1-megapixel CMOS sensor, this camera delivers a clear 1280×720 resolution, suitable for industrial monitoring, POV shooting, and mobile video capture.

3. UVC Plug-and-Play Interface: No driver installation is required for mainstream systems. The Type-C interface supports reversible insertion for easy and quick device integration. Supports mainstream operating systems and Android OTG smartphones.

4. OEM/ODM Support: This camera supports OEM customization, including cable length, lens field of view, interface type, housing color, and waterproof options. Suitable for mass production customers in security, law enforcement, industrial automation, inspection, sports equipment, and AI vision integration.

Technical Specifications
Parameter Value
Sensor 1/4"CMOS
Pixel 1MP
Compression format MJPG/YUV2
Frame rate 1080X720 30fps
Audio none
Operating voltage DC 5v
Product dimensions 20mmx80mm
White balance Automatic
Operating temperature <70°C
Power consumption 0.25w
Model No HCU-BT201TC
Interface type type-c
Lens specifications EFL:3mm, F.ON:2.2, Distortion: <-1.0%, Element:4E+IR,
FOV 90°
Supported OS WinXP/Mac OS/Linux/Win7/Win8/Win10/Android
Application Scenarios
Ideal for machine vision and equipment monitoring applications including: vending machines, advertising displays, robotics, welding equipment, fire monitoring systems, law enforcement devices, mobile accessories, security surveillance, industrial flame monitoring, and biometric systems.
Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 2MP,4MP, 8MP, 12MP).


FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).


Mini 720P USB Bullet Camera Suitable For Wearable Law Enforcement Devices 0
Mini 720P USB Bullet Camera Suitable For Wearable Law Enforcement Devices 1

Lens specification sheet:Specification for 3.6mm lens.pdf

About our more products:Huachuang Finished Product List.xls
