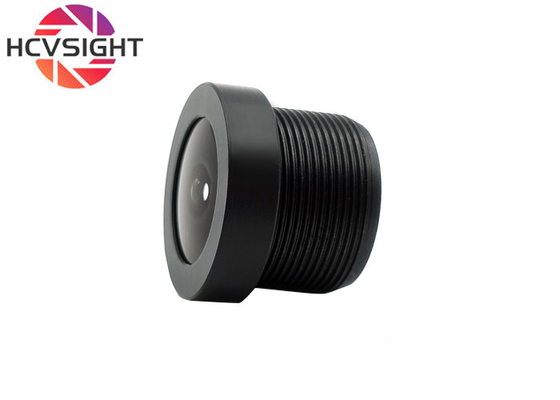

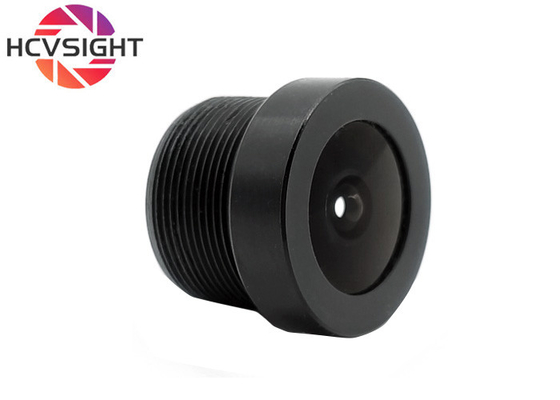

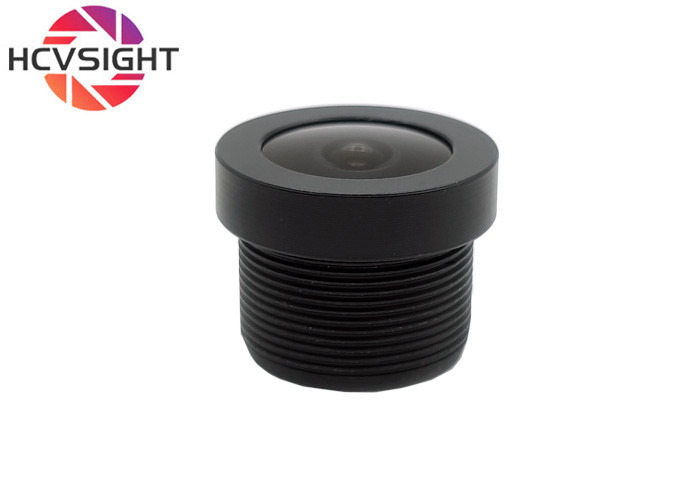

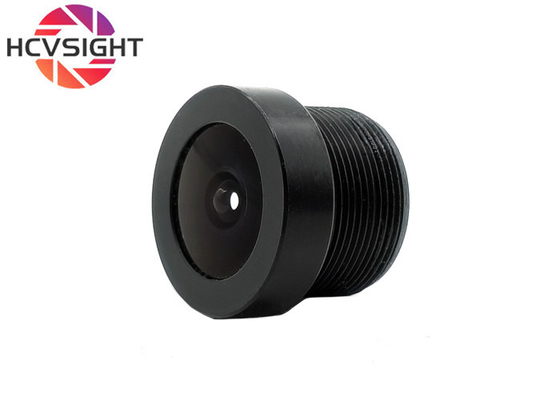

2.1mm 2 Million High Definition Wide Angle 150° Surveillance Camera Lens

2.1mm 2 Million High Definition Wide Angle 150° Surveillance Camera Lens

Brand Name:	HCVsight
Model Number:	HC-GJ2.1
MOQ:	50 pieces
Price:	US$5/50~999 pieces US$4/>=1000 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Compatibility:

Windows/Mac/Linux/Andriod

F.NO:

2.1mm

Lens Type:

150°

EFL:

2.8mm

Sensor Type:

CMOS

Pixel:

2MP

Sensor Size:

1/2.7''

Color:

Black

Mount:

M12XP0.5

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

2.1mm surveillance lens

2 Million surveillance lens

150 Degree security camera wide angle lens

Product Description

2.1mm 2 Million High Definition Wide Angle 150° Surveillance Camera Lens

The 2.1mm wide-angle lens with 150° super-wide viewing angle delivers an expansive field of view, minimizing blind spots and reducing the need for frequent position adjustments. Ideal for capturing architectural structures, natural landscapes, and large event venues with exceptional clarity.

Key Features

1/2.7-inch CMOS sensor for compact, lightweight design
Excellent versatility for dash cams, sports DVs, law enforcement equipment, and surveillance systems
Wide compatibility with various operating systems and devices
High color accuracy with optimized performance in diverse lighting conditions

Technical Specifications

Parameter	Value
TTL	14.9
EFL	2.8mm
F/NO	2.1
BFL(O)	4.8mm
BFL(M)	4.7mm
MAX IMAGE CIRCLE	6.8mm
Relative Aperture	2.8+5%
Construction	4G+IR
FOV (Sensor size)	1/2.7"
Distortion	<-89%
Pixel	2MP
Angle	D=150° H=120°
Operation Temperature	-20℃~+80℃
Thread Size	M12X0.5

Applications

Ideal for machine vision and equipment monitoring in various industries including banking (ATMs, account opening systems), healthcare (inspection reports), retail (vending machines, digital signage), industrial automation (robotics, welding equipment), and security systems (surveillance cameras, flame monitoring).

Support & Services

Comprehensive technical documentation and manuals
Email and phone support
Remote desktop assistance
Product training and customized solutions

Download Full Specifications (PDF)
