700TVL Analog Signal Camera Module Suitable For CCTV Monitoring Camera Chip

Name: 700TVL Analog Signal Camera Module Suitable For CCTV Monitoring Camera Chip
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCC-M18C
Price: 21.79 USD
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCC-M18C
MOQ:	50 pieces
Price:	US$25.99/50~199 pieces US$24.69/200~499 pieces US$20.79/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Dimensions:

18mmx40mm

Pixel:

700tvl

Frame Rate:

50fps

Sensor Type:

CMOS

Angle:

90°(customizable)

Sensor Size:

1/4''

Colour:

Green

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

50fps cam module

300000 Pixel cam module

1/4'' cam modules

Product Description

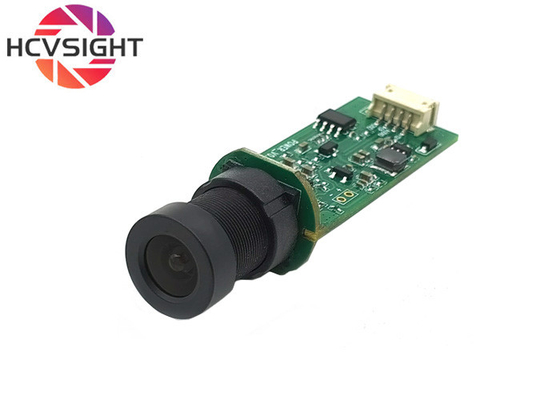

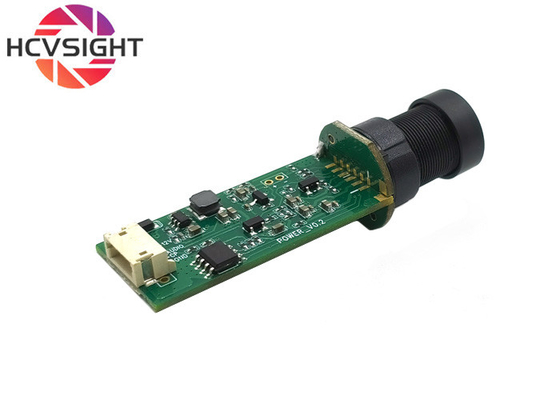

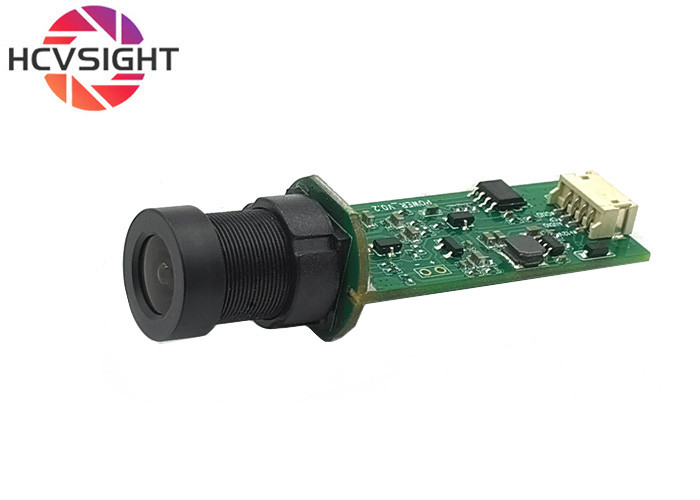

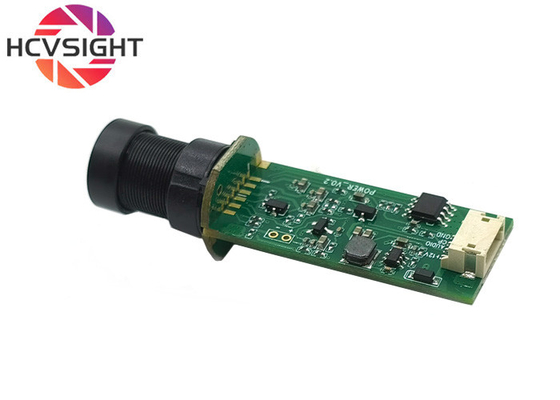

700TVL Analog Signal Camera Module Suitable For CCTV Monitoring Camera Chip

This is a high-performance, high-sensitivity 700TVL analog signal camera module. It adopts a high-quality 300000 pixel sensor, paired with a professional 3.6mm wide-angle lens, which can output clear and delicate analog video signals. Its core design is a mini bullet shaped plate-like structure with high integration and compact size, which is very suitable for embedding into various security monitoring equipment that requires concealed installation or limited space. It is an ideal core component for building closed-circuit television (CCTV) systems. Whether used for security projects, upgrading existing equipment, or integrating into commercial surveillance solutions, this module can provide stable and reliable image acquisition capabilities.

Technical Specifications

Parameter	Value
Sensor	1/4"
Pixel	700tvl
Signal	CVBS
Frame rate	640X480 50fps
Audio	Not supported
Operating voltage	DC 12v
Dimensions	18mm × 40mm
White balance	Automatic
Operating temperature	<70°C
Power consumption	0.25w
Model No	HCC-M18C
Interface type	BNC
Lens specifications	EFL:3mm, F.ON:2.2, Distortion: <-1.0%, Element:4E+IR, Angle:D=95° H=83° V=55°
Chip Type	CMOS
Standard	PAL/NTSC (Default PAL)

Download 3.6mm Lens Specifications (PDF)

Key Advantages & Applications

Stable signal: Years of development experience minimize interference factors
High color accuracy: Optimized for various lighting conditions including outdoor sunlight and low-light environments
Compact size: Among the smallest CVBS camera modules available
Versatile applications: ATM machines, banking systems, medical equipment, vending machines, industrial automation, robotics, security surveillance, and more

Customization Options

Brand: HCVsight

Model: HCC-M18C

Origin: Shenzhen, China

MOQ: Negotiable

Packaging: Anti-static bag in paper box (110×93×41mm)

Lead Time: 2-3 weeks

Capacity: 100,000 units/month

We offer comprehensive customization services for industrial, aerial, and IP camera applications. Contact us to discuss your specific requirements.

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

4.Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.

Download Product Table (XLS)

Support & Services

Technical assistance in lens selection
Custom lens design and development
Quality testing and evaluation
Comprehensive documentation and training
Maintenance and repair services
