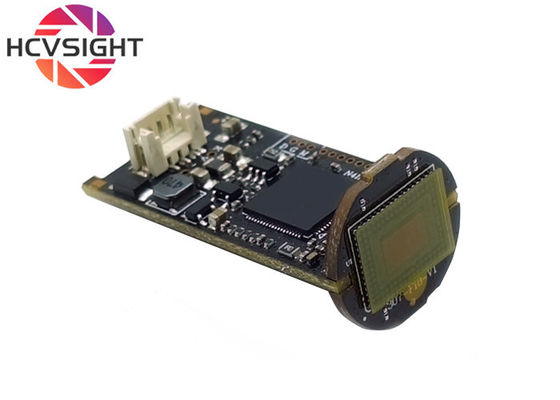

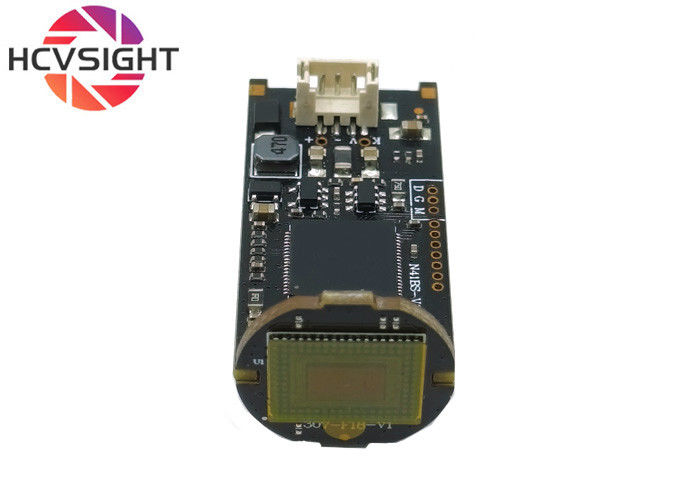

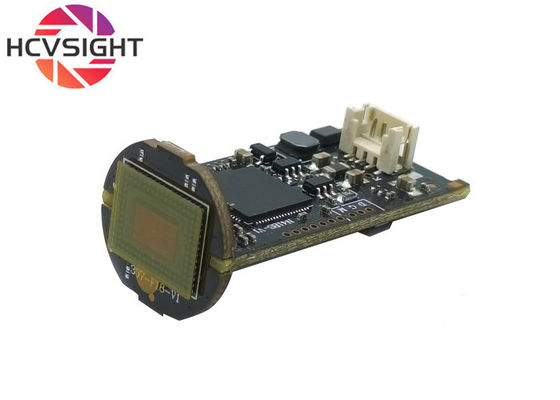

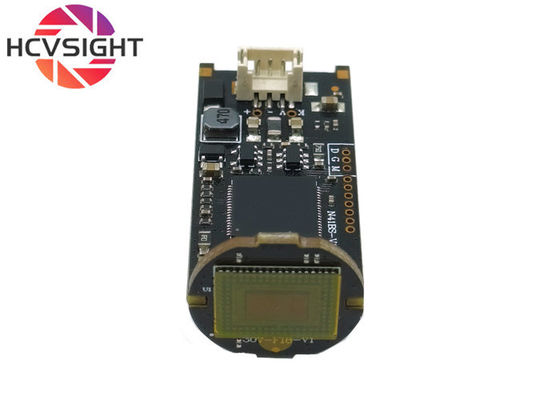

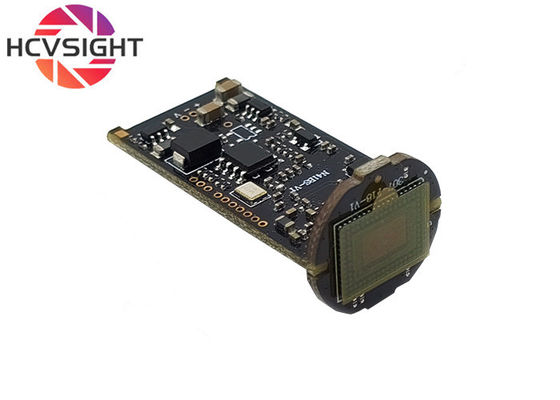

T-shaped 1080P Industrial AHD Camera Module Is Suitable For Machine Vision

T-shaped 1080P Industrial AHD Camera Module Is Suitable For Machine Vision

Brand Name:	HCVsight
Model Number:	HCA-M182
MOQ:	50 pieces
Price:	US$29.99/50~199 pieces US$28.49/200~499 pieces US$25.69/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Sensor Size:

1/2.8''

Pixel:

2MP

Frame Rate:

25fps

Sensor Type:

CMOS

Dimensions:

18mmx38mm

Colour:

Black

Working Voltage:

DC 12V

Signal:

AHD

Protocol:

UTC

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

AHD Camera Module 2MP

25fps AHD Camera Module

Sony 307 camera modules

Product Description

T-shaped 1080P Industrial AHD Camera Module Is Suitable For Machine Vision

Product Introduction

This T-type 1080P industrial-grade AHD camera module is an upgraded four-in-one high-definition camera board designed for industrial equipment, machine vision systems, factory automation, monitoring equipment, robotic platforms, quality inspection equipment, and embedded vision applications. With its AHD/TVI/CVI/CVBS multi-format output, this camera module helps users quickly integrate video capture functionality into various systems without worrying about compatibility issues.

Technical Specifications

Parameter	Specification
Sensor	1/2.8" CMOS
Resolution	2MP (1920x1080)
Frame Rate	25fps
Signal	AHD
Operating Voltage	DC 12V
Dimensions	18mm x 38mm
Interface	BNC
Model Number	HCA-M182

Key Features

1080P Full HD Image Quality: Equipped with a 2-megapixel high-performance sensor, the highest output 1920x1080@30fps High definition images provide clear and sharp images, accurately capture details, and meet the high standard requirements of industrial inspection and monitoring.
Extremely compact T-shaped modular design: 18mm x 38mm ultra small plate-like form, without extra shell wrapping, greatly saving internal space. This design allows it to be directly soldered or fixed inside the motherboard or device cavity, achieving high integration and making it the perfect choice for embedded applications.
Four in one multi format compatibility: core highlight features! Supports four analog high-definition formats: AHD/TVI/CVI/CVBS, as well as traditional CVBS analog standard definition output. The system can be switched through a coding cable or onboard dip switch, and the board is compatible with almost all mainstream DVR (hard disk recorder) brands and devices on the market, greatly improving the applicability and flexibility of the product.
Flexible power supply and interface: Standard DC 12V power supply is usually used, and the video interface is BNC coaxial interface, which meets industry standards, has simple wiring, and is stable and reliable.

Product application scenarios

Its modular, multi standard, and small-sized characteristics make it a core component in many industrial and commercial fields:
Industrial automation and machine vision: integrated into automation equipment, robot arms, and production line visual inspection systems for product positioning, size measurement, defect recognition, QR code reading, etc.
Embedded intelligent devices: As the core image module, they are built into products such as smart access control, attendance machines, smart doorbells, intercom systems, medical equipment, drones, etc.
Security monitoring system integration: Built in a "hidden eye" for ATM machines, vending machines, smart home control panels, and other devices, which can be recorded and monitored through a background DVR.
Vehicle monitoring system: Built into the vehicle monitoring system (DVR) of passenger cars, buses, and logistics vehicles, it serves as a video capture front-end to record the inside and outside of the vehicle.

Applications

Ideal for various machine vision and monitoring applications including:

ATM and banking equipment
Medical inspection systems
Vending machines and digital signage
Industrial automation (welding equipment, patch machines)
Security surveillance systems
Robotics and mobile device cameras
Flame monitoring in industrial settings

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Why Choose Our AHD Camera Module?

We provide end-to-end imaging solutions for B2B clients requiring high reliability, rapid delivery, and technical support. Our optimized production lines ensure long-term stable supply, guaranteeing consistent quality for large-volume orders.

1. A professional engineering team with deep expertise in machine vision.
2. Rapid response and efficient communication; tailored solutions; comprehensive customization from interface to functionality; large-scale production capabilities with OEM/ODM partners.
3. Mature supply chain and rigorous quality control.
4. Reliable supply chain and strong factory capabilities.
5. Rapid sample delivery.
Flexible sourcing and sampling: Sample sourcing (1-50 pieces) supports rapid testing and reduces development risk. Bulk purchases enjoy tiered pricing discounts and support long-term cooperation.
Fast delivery and global logistics: Support for fast shipping and global logistics distribution helps companies shorten product development cycles.
