12MP USB Camera Chip High Definition 4K Video Conferencing Eye Contact

12MP USB Camera Chip High Definition 4K Video Conferencing Eye Contact

Autofocus Camera Module

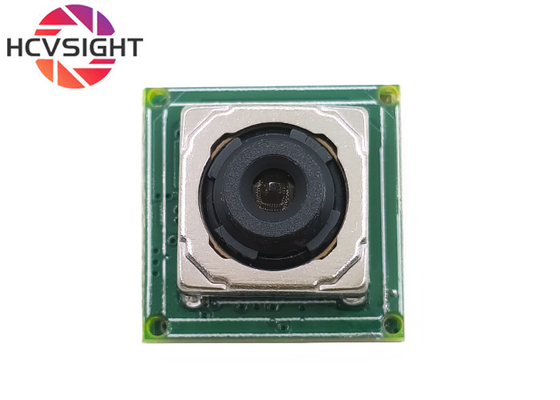

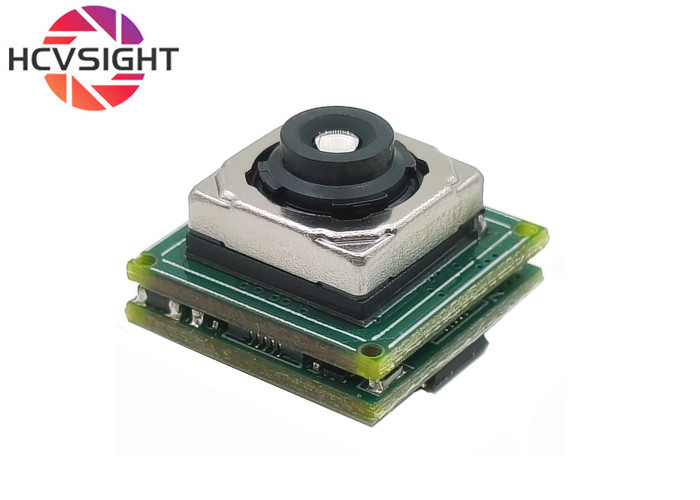

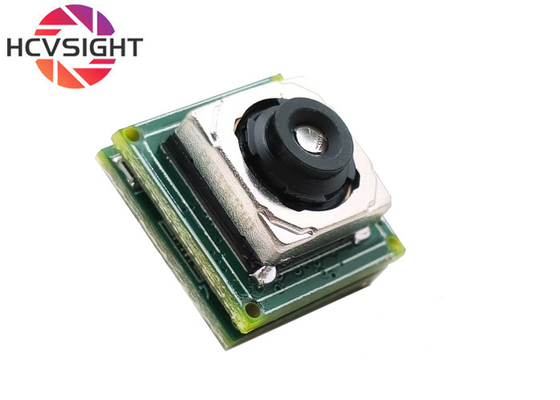

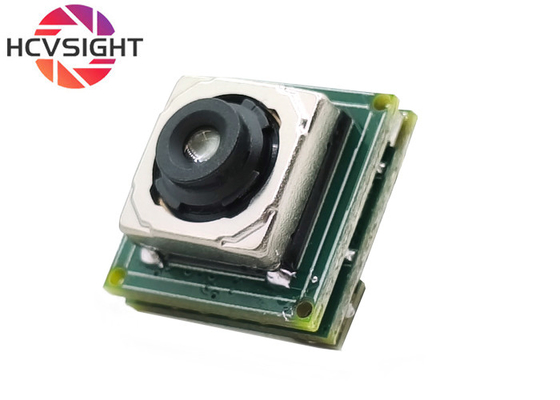

The 12 million autofocus USB high-definition camera module is a miniature imaging engine designed specifically for high-precision visual scenes. Integrating a 12 megapixel sensor and a fast autofocus system in a 14×14mm ultra compact package, supporting UVC no drive protocol and interface customization, providing a zero compromise imaging solution for industrial inspection, intelligent security, video conferencing and other scenarios.

Technical Parameters: Specification for autofocus lens.pdf

Huachuang Module Table.xls

Core functions and technical features

1. Excellent imaging performance: 12 million pixel high-definition sensor, supporting up to 4000 x 3000@10fps The 4K UHD image output is clear and smooth, meeting the requirements of high-precision image acquisition. High resolution images capture rich details, improving image recognition accuracy and measurement accuracy.
2. Intelligent autofocus (AF) system: supports autofocus, with a focusing speed of less than 0.3 seconds and a minimum focusing distance of 5cm.
3. Ultra compact design: The core module size is only 14×14mm, maximizing space savings. Micro camera module that can be easily integrated into devices with limited space.
4. PCB board installation design: convenient for embedded installation and system integration.
5. Plug and play compatibility: Supports UVC protocol, compatible with Windows/Linux/Android/MacOS multiple systems without drivers, plug and play without drivers
6. Industrial grade reliability: Wide temperature operating range: Designed to adapt to industrial grade temperatures (such as -20 ℃~70 ℃), ensuring stable operation in harsh environments.
7. Support audio synchronization transmission: It can be synchronized with video output through a microphone to achieve more natural and intuitive video effects.

Deep customization service (core advantage)

Flexible interface customization: Wired interfaces can be customized with various standard interfaces such as USB 2.0, Type-C, Android, etc.
Line length customization: Customize different lengths of connecting cables according to the internal layout requirements of the equipment. Optional (1.2m, 1.5m, 2m)
Professional customized lenses: support fast autofocus lenses, wide-angle lenses, and fixed focus lenses to meet different field of view (FOV) requirements.
Function and firmware customization (OEM/ODM support): shell customization, image resolution and pixel customization, product packaging customization
Batch procurement support: Provide competitive prices and stable batch production supply for OEM manufacturers and ODM customers.

Precision application field

Industrial Automation and Machine Vision:
Precision dimension measurement: high-precision online detection of component dimensions and product appearance.
Automated Appearance Inspection (AOI): Product surface scratches, defects, stains, and printing quality inspection.
Character Recognition (OCR/OCV): Product serial number, production date, barcode, QR code reading.
Target positioning and guidance: robotic arm grasping guidance, alignment and fitting, AGV/AMR navigation.
Robot Vision: Empowering industrial robots with "eyes" to achieve intelligent operations.
Intelligent monitoring and security:
Industrial site monitoring: production line process monitoring, equipment operation status monitoring, warehouse management.
Compact security equipment: integrated into small access control systems and smart door locks.
Mobile monitoring devices: core components of portable recorders and law enforcement recorders.
Smart devices and the Internet of Things (IoT):
Intelligent access control/attendance: facial recognition, card recognition assistance.
Intelligent retail: customer flow analysis, shelf monitoring, self-service settlement terminals.
Medical equipment assisted imaging: endoscope assisted, simple medical detection equipment.
Educational/research equipment: microscope imaging, experimental process recording, teaching demonstration.
Scanning device: high-precision handheld or embedded scanning gun/scanning module.
Drone/Robot Vision: Small drone image transmission, robot environment perception.
Other fields:
Video conference camera core: miniaturized high-definition conference equipment.
Intelligent transportation assistance: vehicle mounted recorder, simple vehicle recognition.
Portable detection instrument: integrated into various portable devices that require visual functions.

Support and Services:

The Camera Module product comes with a range of technical support and services, including:

• Expert technical assistance in selecting the right lens for your application
• Customized lens design and development services to meet specific customer requirements
• Thorough testing and evaluation of all lenses to ensure quality and reliability
• Comprehensive documentation and training resources for customers to facilitate integration and use of the camera module lens
• Ongoing maintenance and repair services, including replacement of damaged or faulty lenses.
