4MP High Definition USB Camera Module Machine Vision Surveillance Camera Chip

Brand Name:	HCVsight
Model Number:	HCU-M124
MOQ:	50 pieces
Price:	US$26.99/50~199 pieces US$25.69/200~499 pieces US$20.99/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Audio:

Support

Sensor Size:

1/2.8''

Color:

Green

Working Voltage:

DC 12V

Pixel:

4MP

Compatibility:

Windows/Mac OS/Linux/Andriod

Wire Length:

Default 2m

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

4MP USB Camera Module

USB Camera Module High Definition

USB high definition camera module

Product Description

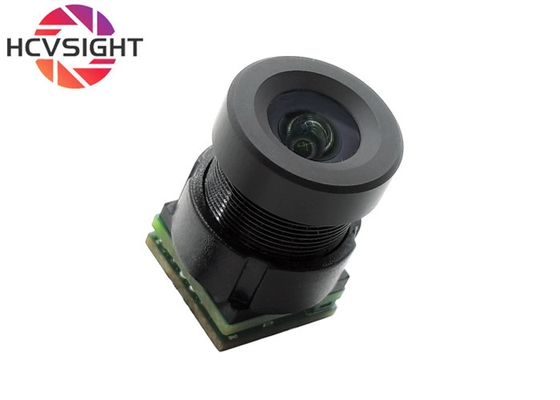

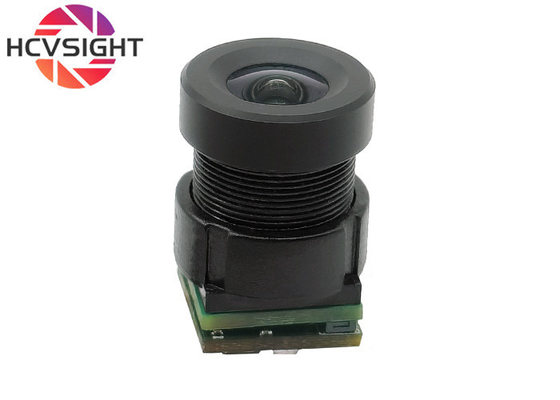

4MP High Definition USB Camera Module Machine Vision Surveillance Camera Chip

This is an advanced camera module that combines high resolution, extreme compactness, and multifunctionality. It uses professional image processing chips, providing up to 4 million pixels( 2560x1440@25fps )Ultra high definition picture quality, while controlling the size to the extreme 12x12mm. As a plug and play USB drive free camera module, it is not only an ideal visual sensor for embedded development, but also a core component for enhancing eye contact conference experience and building high-end security systems. Simultaneously supporting audio makes it a complete audio and video capture solution, endowing various smart devices with a "smart eye".

Technical Specifications

Sensor	1/2.8"
Pixel	4MP
Compression format	MJPG/YUV2
Frame rate	2560×1440 25fps
Audio	Supported
Operating voltage	DC 12v
Dimensions	12mm×12mm
White balance	Automatic
Operating temperature	<70°
Power consumption	0.25w
Model No	HCU-M124
Interface type	USB2.0
USB cable length	Default 2m
Lens specifications	EFL:3mm, F.ON:2.2, Distortion: <-1.0%, Element:4E+IR, Angle:D=95° H=83° V=55°
Chip Type	CMOS
Supported OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Core Features

Excellent imaging performance: 4MP HD sensor delivers 2560×1440@25fps output for high-precision image acquisition with rich detail capture

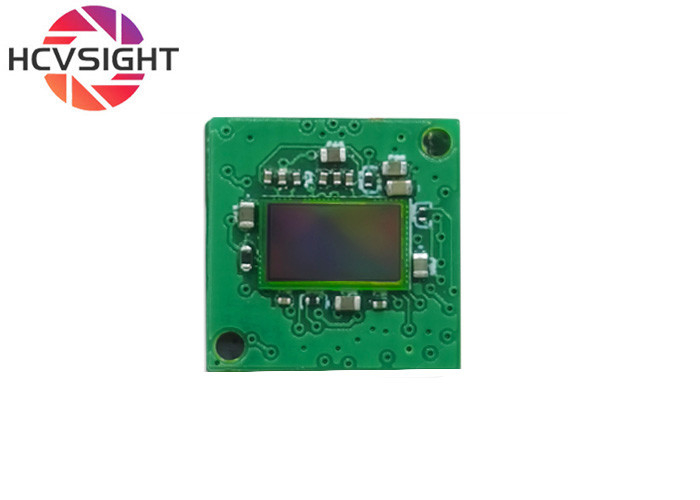

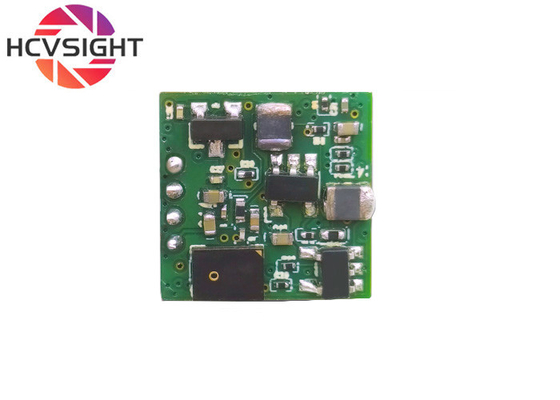

Ultra compact design: 12×12mm core module size with PCB board mounted design for easy integration in space-constrained devices
Plug-and-play compatibility: UVC protocol support works with Windows, Linux, Android, MacOS without additional drivers
Industrial-grade reliability: Operates in -20℃ to 70℃ environments for stable performance in harsh conditions
Audio support: Built-in microphone enables natural interactive experiences

Customization Services

Core Advantages

Interface customization: USB 2.0, Type-C, Android and other standard interfaces
Cable length options: Custom lengths available (1.2m, 1.5m, 2m)
Lens customization: M12 interface supports wide-angle, standard, telephoto, and panoramic lenses
Function customization: Shell, resolution, pixel, and packaging options
Batch procurement: Competitive pricing and stable mass production for OEM/ODM customers

Application Fields

Industrial Automation: Precision measurement, AOI inspection, OCR/OCV, robotic guidance
Security Monitoring: Industrial site monitoring, compact security devices, mobile monitoring
Smart Devices: Access control, retail analytics, medical imaging, educational equipment
Other Applications: Video conferencing, intelligent transportation, portable instruments
Drone/Robot Vision: Environmental perception for drones and robotics
Scanning Devices: High-precision handheld or embedded scanning solutions

Why Choose Our Customization Service?

Professional engineering team with deep machine vision expertise
Quick response and efficient communication for tailored solutions
Comprehensive customization from interfaces to functions
Mature supply chain with strict quality control
Cost-optimized solutions without unnecessary features
Mass production capabilities for OEM/ODM partners

Download Lens Specification PDF | Download Module Table (XLS) | View Similar Products
