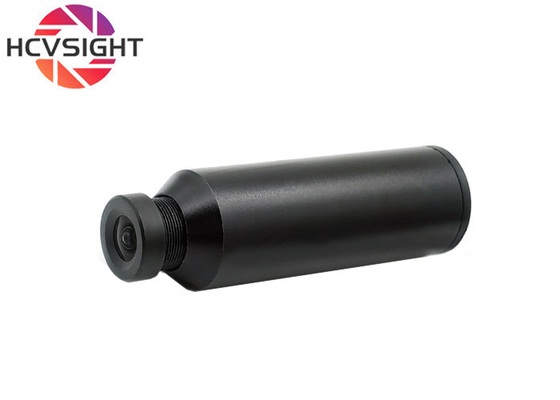

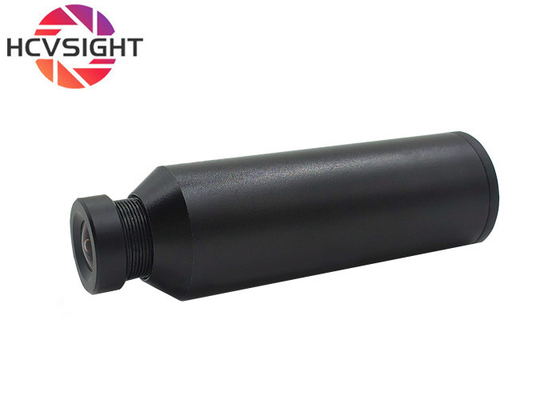

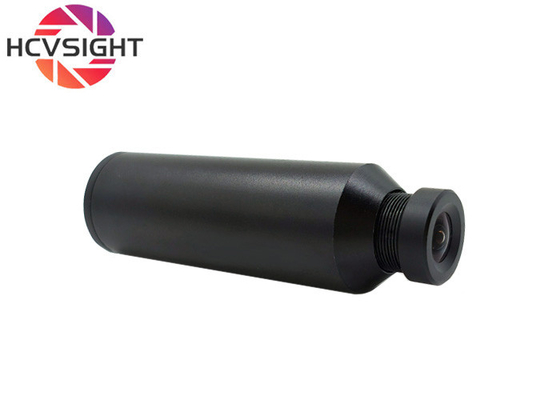

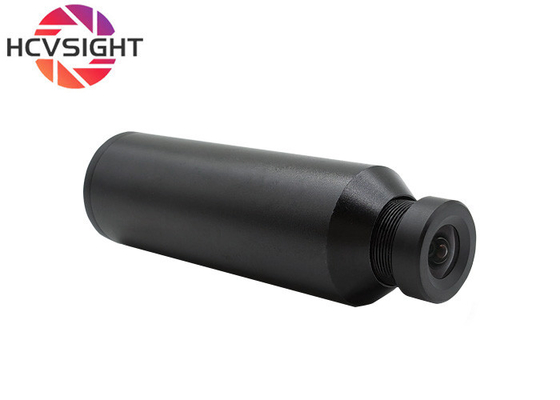

700TVL Sony CCD Mini Bullet Camera CVBS Analog Signal CCTV Camera

Name: 700TVL Sony CCD Mini Bullet Camera CVBS Analog Signal CCTV Camera
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCC-ZDT20D
Price: 28.59 USD
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCC-ZDT20D
MOQ:	50 pieces
Price:	US$31.19/50~199 pieces US$30.59/200~499 pieces US$27.59/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Dimensions:

20mmx65mm

Pixel:

700000

Frame Rate:

50fps

Sensor Type:

CCD

Chip Model:

NVP2090+811

Sensor Size:

1/3''

Colour:

Black

Working Voltage:

DC 12V

Agreement:

UTC

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

700000 Pixel bullet surveillance camera

CVBS bullet surveillance camera

Sony CCD811 bullet cameras

Product Description

700TVL Sony CCD Mini Bullet Camera CVBS Analog Signal CCTV Camera

This 700 line Sony CCD mini camera is a high-performance closed-circuit television camera designed specifically for traditional analog monitoring systems. It features a high-quality metal casing and a classic bullet head design, combining durability and sophistication (with a size of only 20x65mm). The core is equipped with the highly acclaimed Sony CCD image sensor, coupled with a 3.6mm distortion free lens, which can output ultra clear analog (CVBS) signals of up to 700 TV lines, with transparent images, realistic colors, and excellent low light performance. The standard BNC interface ensures plug and play compatibility with existing DVR recorders and other devices, making it a reliable choice for upgrading security systems or adding new locations.

Technical Parameters

Sensor	1/3"
Pixel	0.7MP
Signal	CVBS
Frame rate	1020X596 50fps
Audio	Nonsupport
Operating voltage	DC 12v
Product dimensions	20mmx65mm
White balance	Automatic
Operating temperature	<70°
Power consumption	0.25w
Model No	HCC-ZDT20D
Interface type	BNC
Cable length	Default
Lens	EFL:3mm F.ON:2.2 Distortion: <-1.0% Element:4E+IR Angle:D=95° H=83° V=55°
Chip Type	COMS
Standard	PAL/NTSC(Default PAL)

Key Advantages

High definition imaging: using Sony CCD chip, providing high resolution of 700 TV lines, with better picture quality than ordinary cameras.
Exquisite metal body: The all metal shell design is sturdy, durable, and conducive to heat dissipation, with a small size and easy installation.
Distortion free wide-angle field of view: equipped with a 3.6mm lens, providing a 95 ° wide viewing angle and effectively controlling image edge distortion.
Excellent low light performance: CCD sensors are more sensitive to low light environments and have better night monitoring effects.
Standard BNC interface: CVBS analog signal output, seamlessly connecting various DVR devices through BNC connectors.
Strong anti-interference ability: Stable analog signal transmission, strong resistance to electromagnetic interference, suitable for complex environments.

Application Scenarios

Ideal for various machine vision and equipment monitoring applications including: ATM systems, banking operations, hospital equipment, vending machines, advertising displays, robotics, industrial machinery, fire monitoring systems, law enforcement equipment, mobile device attachments, and security surveillance.

Customization Options

Brand: HCVsight

Model: HCC-ZDT20D

Origin: Shenzhen, China

Minimum Order: Negotiable

Packaging: Anti-static carton bag (110mmx93mmx41mm)

Delivery: 2-3 weeks

Payment: T/T

Capacity: 100,000 units/port

Color: Black

We offer comprehensive OEM/ODM customization services to meet unique visual requirements:

Lens customization: Specific focal length, field of view angle, and distortion control
Casing customization: Specialized casings, brackets, or mounting solutions
Cable length customization: Tailored cable lengths for specific installations

Support & Services

Installation assistance and troubleshooting
Driver and firmware updates
Compatibility testing
Product customization and development

Lens specification sheet:Specification for 3.6mm undistorted lens.pdf
About our more products:Huachuang Finished Product List.xls
