2.1mm Wide Angle Lens Mini USB2.0 Type C /OTG Micro USB CCTV Security Webcam

Name: 2.1mm Wide Angle Lens Mini USB2.0 Type C /OTG Micro USB CCTV Security Webcam
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCU-FK252TPC
Price: 30.06 USD
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCU-FK252TPC
MOQ:	50 pieces
Price:	US$33.99/50~199 pieces US$32.29/200~499 pieces US$29.06/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

2mp

Frame Rate:

30fps

Lens Type:

Customizable

Interface Type:

Type-c

Product Dimensions:

25mmX25mm

Compatibility:

Windows/Mac/Linux/Andriod

Color:

Black

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

Wide Angle industrial surveillance camera

2.1mm industrial surveillance camera

2MP industrial surveillance cameras

Product Description

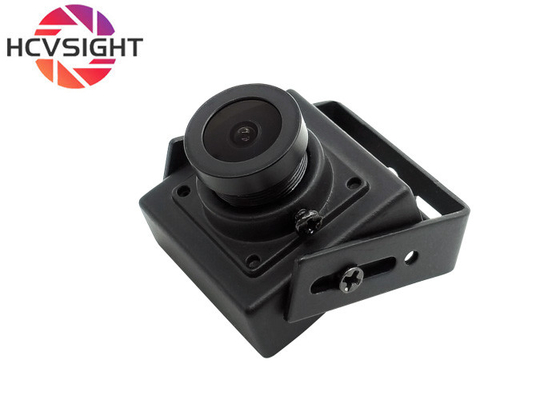

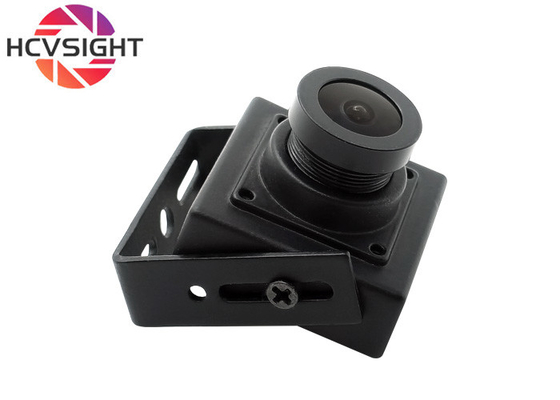

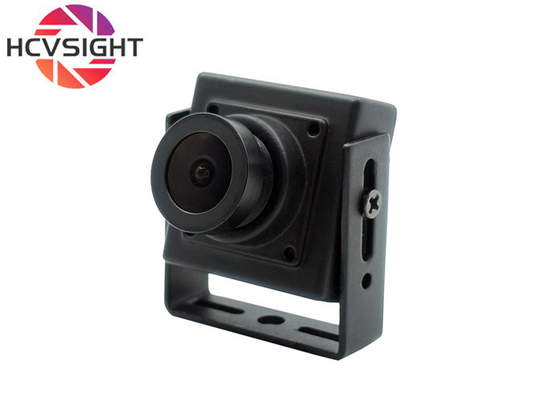

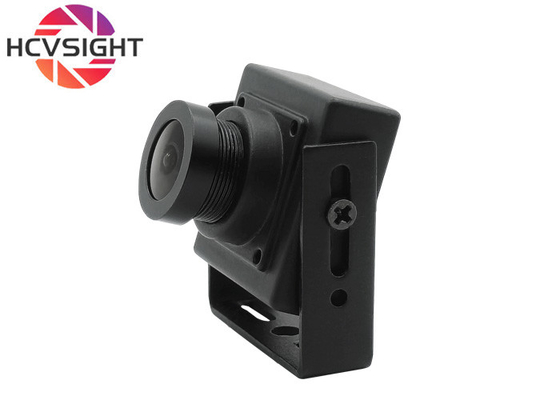

2.1mm Wide Angle Lens Mini USB2.0 Type C /OTG Micro USB CCTV Security Webcam

This 2.1mm wide-angle mini box USB network camera is a plug and play camera solution that combines high performance, durability, and ultimate portability. It adopts a high-quality metal shell, equipped with a 2-megapixel high-definition sensor and a 150 ° ultra wide angle lens, and can be directly connected to various smart devices such as smartphones, tablets, and computers through the mainstream Type-C interface. No need for drivers, plug and play, it is an ideal choice for personal security, mobile office, content creation and other scenarios.

Key Features

1080P high-definition image quality: 2 million pixel high-definition output, presenting delicate images with a resolution of 1920x1080.
150 ° ultra wide angle field of view: The 2.1mm lens easily covers a wide area, effectively reducing visual blind spots.
Sturdy metal body: 25x25mm miniature metal shell, good heat dissipation, more durable, showcasing quality.
Plug and play: Standard UVC protocol, compatible with Android devices, no drive installation, easy to use.
Wide compatibility: Supports OTG on Android phones/tablets, Windows, macOS, Linux, and other systems.
Multi functional application: With different software, it can achieve functions such as video recording, live streaming, video calling, security monitoring, etc.

Technical Specifications

Parameter	Value
Sensor	1/2.9"
Resolution	2MP (1920×1080 @ 30fps)
Compression Format	MJPG/YUV2
Power Supply	DC 5V
Dimensions	25mm × 25mm
Working Temperature	<70°C
Power Consumption	0.25W
Interface	Type-C
Lens Specifications	Effective length: 2.8mm Focal length: 2.1mm Distortion: <-1.0% Viewing Angle: D=150° H=120°
Supported OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Applications

This versatile camera is suitable for:

Home security and door monitoring systems
Industrial equipment monitoring (production lines, machinery status)
ATM and banking systems
Medical equipment and hospital systems
Vending machines and digital signage
Robotics and automated welding equipment
Flame monitoring in industrial boilers
Law enforcement and surveillance systems

Customization Options

Brand: HCVsight (Model: HCU-FK252TPC)
Origin: Shenzhen, China
MOQ: Negotiable
Packaging: Anti-static carton bag (110×93×41mm)
Lead Time: 2-3 weeks
Available Colors: Black

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type (such as USB and Android).
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Support & Service

Comprehensive technical support including installation assistance, software updates, and maintenance services to ensure optimal product performance and customer satisfaction.

Lens specification sheet:2.1mm Wide Angle Lens Specification.pdf

About our more products:Huachuang Finished Product List.xls
