USB Bullet Camera USB-C OTG 720p Security Camera For Industrial Inspection

Brand Name:	HCVsight
Model Number:	HCU-ZDT201TPC
MOQ:	50 pieces
Price:	US$34.69/50~199 pieces US$32.99/200~499 pieces US$31.39/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Interface:

Type-c

Pixel:

1mp

Compatibility:

Windows/Mac OS/Linux /Andriod

Lens Type:

Customizable

Color:

Black

Sensor Type:

CMOS

Frame Rate:

30fps

Product Size:

20mmX65mm(Base Size Is Not Included)

Agreement:

UVC

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

Bullet industrial surveillance camera

720p industrial surveillance camera

1mp industrial security cameras

Product Description

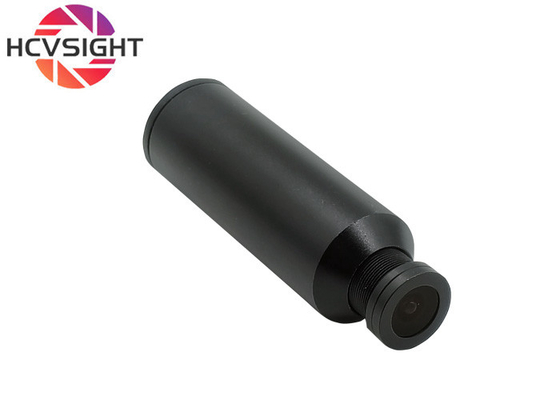

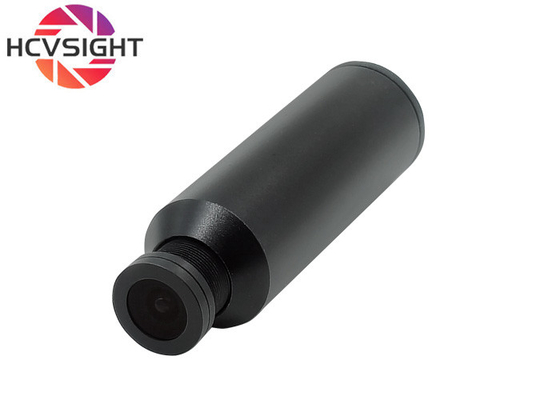

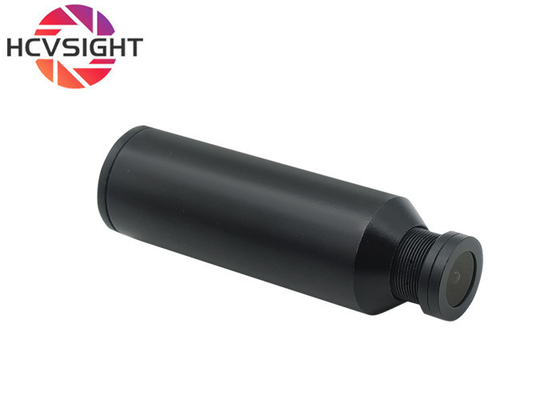

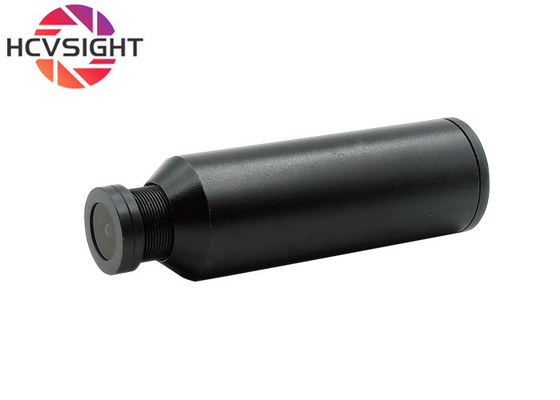

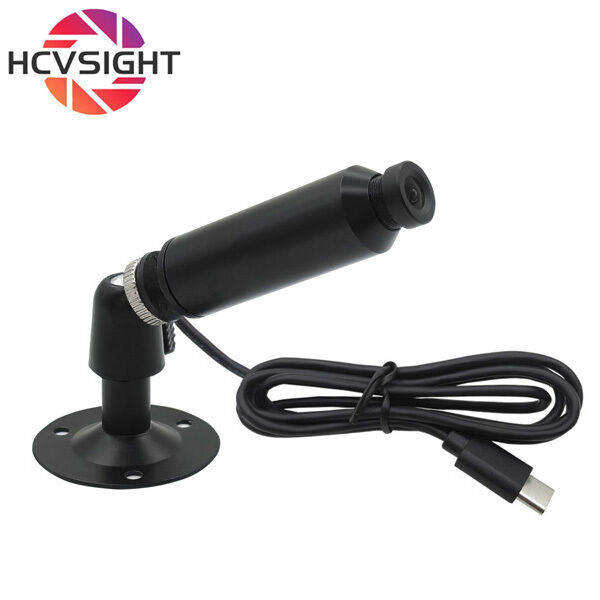

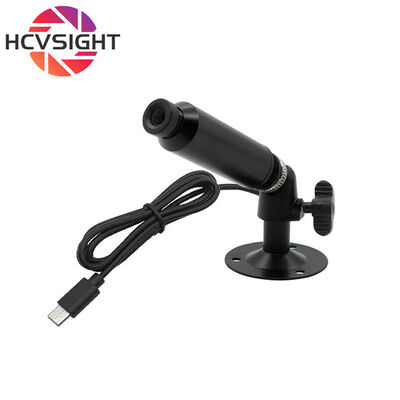

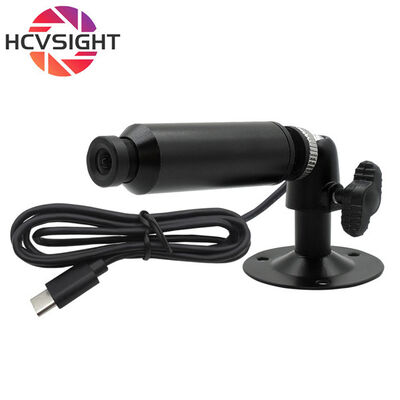

USB Bullet Camera USB-C OTG 720p Security Camera For Industrial Inspection

This product is an ultra small high-definition USB camera designed specifically for the industrial inspection field. It adopts a sturdy metal bullet head design, integrates a 1 million pixel sensor and a professional 3.6mm distortion free lens, and can be directly connected to computers, industrial computers or mobile devices that support OTG through a USB-C interface. Its slender body (with a diameter of only 20mm) can easily penetrate into areas that are difficult for traditional tools to reach, such as the interior of equipment and narrow gaps, and transmit high-definition video images in real time to display terminals. It is an ideal "electronic eye" for industrial visual inspection, equipment maintenance, and quality control.

Specifications

Attribute	Value
sensor	1/4" cmos
Interface	Type-C
Pixel	1MP
compression format	MJPG/YUV2
Compatibility	Windows/Mac OS/Linux/Android
Lens Type	Customizable
FOV	90°
Color	Black
Sensor Type	CMOS
resolution	1280x720p@30fps
power consumption	0.25W
working temperature	<70°C
Product Model	HCU-ZDT201TPC
Product Size	20mmx 65mm (Base size not included)
Agreement	UVC

Key Features

720P HD Distortion free image quality: 1 million pixels, paired with a professional grade 3.6mm distortion free lens, providing a 90 ° realistic viewing angle. The imaging is sharp and the edges remain unchanged, providing a precise image foundation for measurement and recognition.

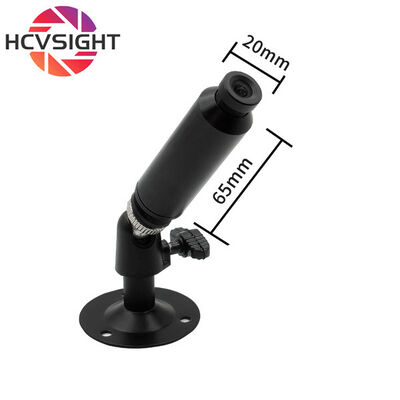

Industrial grade slim design: A 20mm x 65mm ultra mini body made of metal material, sturdy and durable. It can easily explore narrow spaces such as the interior of machines, pipelines, and precision molds.
Plug and play, widely compatible: standard USB-C interface, compatible with USB Video Class (UVC), can connect to Windows, macOS, Linux system computers and Android OTG devices without installing additional drivers.
Accurate visual assistance: optimized for industrial inspection, with low image latency and realistic color reproduction, it is a powerful assistant for PCB board inspection, part defect detection, and internal equipment status monitoring.

Application Scenarios

Ideal for machine vision and equipment monitoring applications including:

ATM machines and banking systems
Medical equipment and hospital systems
Vending machines and kiosks
Industrial automation (welding equipment, pick-and-place machines)
Security surveillance systems
Embedded systems and IoT devices

Customization Options

We understand the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to create differentiated products.

Lens customization: Specific focal length, field of view angle, distortion control.
Customized casing: Design dedicated casing, bracket, or fixing method based on your device structure.
Cable and Interface: Customize cable length and interface type.
Pixel customization: Different resolution and frame rate models available.

Why Choose Us?

Reduced R&D Costs: The USB plug-and-play interface and high compatibility simplify driver development and system integration.
Improved Productivity: High frame rates and high-definition images ensure accurate and efficient industrial inspection and machine vision systems.
Customizable Development Support: Compact modules allow OEM/ODM customers to customize dimensions, lenses.
Stability and Reliability: Industrial-grade housings and low-power design ensure reliable long-term operation and reduce maintenance costs.
Multi-Scenario Applications: From security monitoring to machine vision and embedded devices, the modules can be used across industries, helping customers quickly implement solutions.

Lens specification sheet:Specification for 3.6mm undistorted lens.pdf

About our more products:Huachuang Finished Product List.xls
