UVC Non Drive Mini Bullet USB Camera 720P 30fps Industrial Security Camera

Brand Name:	HCVsight
Model Number:	HCU-ZDT181TPC
MOQ:	50 pieces
Price:	US$29.59/50~199 pieces US$28.19/200~499 pieces US$26.79/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

1mp

Compatibility:

Windows/Mac OS/Linux/Andriod

Frame Rate:

30fps

Color:

Black

Product Dimensions:

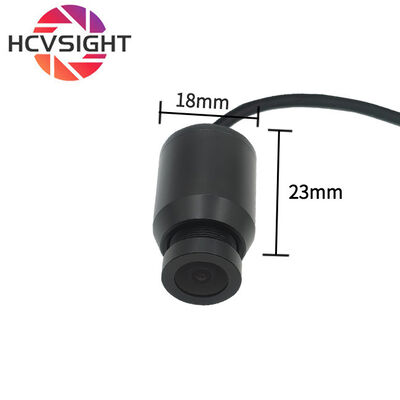

19mmx23mm(Base Size Is Not Included)

Sensor Type:

CMOS

Interface:

Type-c

Protocol:

UVC

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

1MP USB Camera

150° Wide Angle UVC Camera

CMOS Sensor Industrial Security Camera

Product Description

UVC Non Drive Mini Bullet USB Camera 720P 30fps Industrial Security Camera

This UVC driver free mini bullet USB camera is a high-definition industrial grade security camera solution that truly achieves "zero settings". It adopts advanced UVC protocol and does not require the installation of any drivers. After connecting to a computer or smart device, it can be automatically recognized as a standard video device. Integrated with a 1 million pixel high-definition sensor, a 150 ° ultra wide angle lens, and an extremely mini body (19mm × 23mm), and transmitted through a modern Type-C interface. Whether used for industrial testing, security monitoring, or online communication, it can provide stable, convenient, plug and play high-definition video streams, greatly improving deployment efficiency and user experience.

Technical Specifications

Sensor	1/4"
Resolution	1MP (1280×720)
Frame Rate	30fps
Compression Format	MJPG/YUV2
Lens Specifications	Effective length: 2.8mm F.NO: 2.1 Distortion: <-89% Component: 4G+IR Angle: D=150° H=120° V=60°
Power Requirements	DC 5V, 0.25W
Operating Temperature	<70°C
Interface	Type-C (USB 2.0)
Supported OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android
Model	HCU-ZDT181TPC

Key Features

Plug-and-play operation - No driver installation required with UVC protocol
Versatile compatibility - Works with computers, smart terminals, and security systems
Compact design - Minimal footprint for easy integration (19×23mm)
Wide-angle lens - 150° field of view for comprehensive coverage
Industrial-grade - Suitable for harsh environments and continuous operation

Application Scenarios

This industrial USB camera is ideal for:

ATM machines and banking equipment
Medical diagnostic and reporting systems
Vending machines and kiosks
Advertising displays and digital signage
Industrial automation and machine vision
Security and surveillance systems
Robotics and automated equipment

Customization Options

Available customization includes:

Resolution options from 1MP to 12MP
Various size configurations (6×6mm to 38×38mm)
Multiple interface types (USB, AHD, CVBS, network)
Focus options (fixed or autofocus)
Cable length customization (1-5 meters)

Support & Services

Our comprehensive support includes:

Detailed product documentation
Email and phone technical support
Remote desktop assistance
Product training and education
Customized solutions for specific requirements

For order inquiries, customization requests, or technical support, please contact our customer service team.

About our more products:Huachuang Finished Product List.xls

Lens specification sheet:2.1mm Wide Angle Lens Specification.pdf
