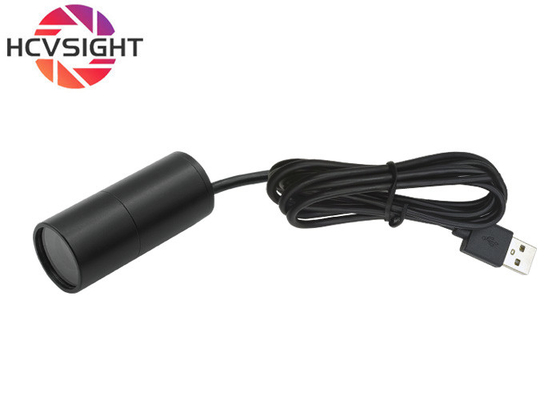

Mini Bullet USB Camera 720p UVC/OTG Driver-free Plug And Play Camera

Mini Bullet USB Camera 720p UVC/OTG Driver-free Plug And Play Camera

Brand Name: HCVsight
Model Number: HCU-BT181
MOQ: 50 pieces
Price: US$32.69/50~199 pieces US$31.09/200~499 pieces US$29.59/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Place of Origin:
ShenZhen,China
Pixel:
1mp
Compatibility:
Windows/Mac OS/Linux/Andriod
Frame Rate:
30fps
Color:
Black
Product Dimensions:
19mmx43mm(Do Not Contain Base Size)
Sensor Type:
CMOS
Interface:
USB 2.0
Lens Type:
Customizable
Protocol:
UVC
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/mouth
Highlight:

UVC/OTG Driver-free USB Camera

,

720p Mini Bullet Camera

,

30fps Webcam

Product Description
Mini Bullet USB Camera 720p UVC/OTG Driver-free Plug And Play Camera
Product Overview
This mini bullet shaped USB camera is a UVC driver free high-definition camera that truly achieves "zero settings". It adopts the classic bullet shaped design, with a body size of only 19mm × 43mm, compact and exquisite, yet with a 720P high-definition picture quality of 1 million pixels. By connecting to mainstream systems such as Windows, macOS, Linux, and other computers or smart devices through the standard USB 2.0 interface, they can be instantly recognized as video devices without the need to install any drivers. Whether it's video calls, content creation, or security monitoring, it's a reliable plug and play option for you.
Product functions and features

UVC driver free: Following the UVC protocol, it has extremely wide compatibility. In Windows XP and above versions macOS,Linux, There is no need to install additional drivers in Android (with OTG support) and other systems. Simply plug in the USB interface and use it immediately, saving time and effort.
720P high-definition picture quality: equipped with a 1 million pixel high-definition CMOS sensor, supporting 1280x720 resolution, providing clear and smooth video images, meeting the clarity requirements of daily communication, recording, and monitoring.
Mini concealed design: With an ultra small size of 19mm × 43mm, the appearance is low-key and not abrupt. The classic black bullet design is easy to install and hide, and can easily blend into various environments, suitable for scenes with concealment requirements.
High compatibility and convenience: Standard USB 2.0 interface, strong universality, stable connection. Widely compatible with various video conferencing, live streaming, and recording software such as Zoom, Skype, WeChat, OBS, etc., easily meeting various application needs.

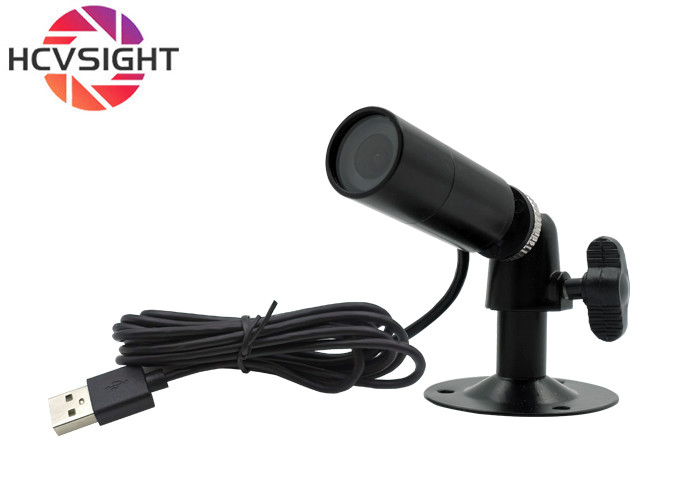

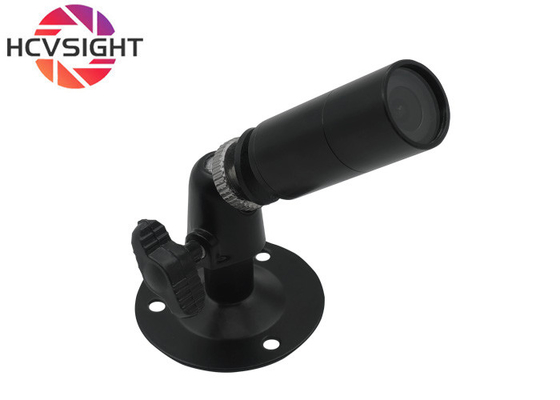

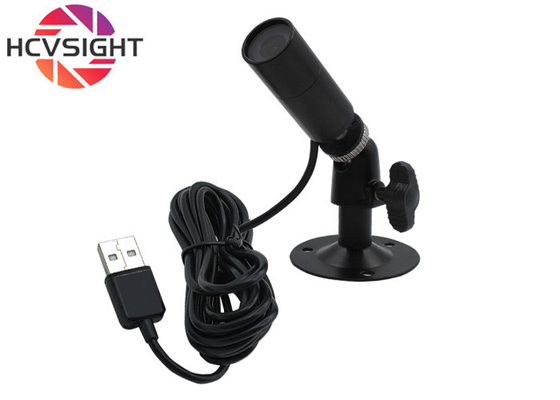

Optional fixed bracket, flexible installation: Special fixed brackets can be selected as needed to achieve flexible installation in various ways such as desktop and wall, meeting your personalized placement needs.

Technical Specifications
Sensor 1/4"
Resolution 1MP (1280×720)
Frame Rate 30fps at 720p
Compression Format MJPG/YUV2
Lens Specifications EFL: 3mm
F/NO: 2.2
Distortion: <1.0%
Element: 4E+IR
Angle: D=95° H=83° V=55°
Operating Voltage DC 5V
Power Consumption 0.25W
Operating Temperature <70°C
Model Number HCU-BT181
Ordering Information
Place of Origin Shenzhen, China
Minimum Order Quantity 50 pieces
Price US$32.69/50~199 pieces US$31.09/200~499 pieces US$29.59/500~999 pieces
Packaging Anti-static bag in paper box (110×93×41mm)
Delivery Time 2-3 weeks
Payment Terms T/T
Supply Capacity 100,000 pieces/month
Customization Options
  • Lens type selection for specific applications
  • Standard black color finish
  • 30fps frame rate for smooth video
  • Compact dimensions: 19×43mm (excluding base)
  • USB 2.0 interface for universal connectivity
  • We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

    1. Lens customization: specific focal length, field of view angle, distortion control.
    2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
    3. Cable and Interface: Customize cable length and interface type (such as type-c and Android).
    4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Product application scenarios


This camera, with its excellent compatibility and plug and play features, is an ideal solution for the following scenarios:
Remote work and video conferencing: As an external camera for a computer or monitor, it enhances the quality of video calls and makes online meetings clearer and more professional.
Online teaching and online courses: Provide stable video sources for teachers or students to ensure smooth online teaching.
Live streaming and content creation: As an auxiliary camera or entry-level live streaming camera, used for game live streaming, handicraft display, small video recording, etc.
Computer security monitoring: In conjunction with monitoring software on the computer, the computer is transformed into a simple monitoring host for local video recording and motion detection in homes, offices, and shops.
Industrial inspection and visual applications: integrated into small machine vision, document scanning, and other projects as the basic image acquisition unit.
Intelligent device expansion: Provide "eyes" for development boards such as Raspberry Pi, for the development and experimentation of projects such as the Internet of Things and artificial intelligence.

Support & Services
Our product comes with comprehensive technical support including installation assistance, configuration guidance, and troubleshooting. Services include remote assistance, on-site support, and product training with 24/7 availability.
Lens specification sheet:Specification for 3.6mm lens.pdf
About our more products:Huachuang Finished Product List.xls
