30 * 30MM 2MP 1920 * 1080 Mini C-type Camera UVC Driver Free Safe CCTV ATM Booth

Name: 30 * 30MM 2MP 1920 * 1080 Mini C-type Camera UVC Driver Free Safe CCTV ATM Booth
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCU-FK302AZ
Price: 32.69 USD
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCU-FK302AZ
MOQ:	50 pieces
Price:	US$36.99/50~199 pieces US$35.19/200~499 pieces US$31.69/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

2mp

Frame Rate:

30fps

Lens Type:

Customizable

Interface Type:

Type-c

Product Dimensions:

30mmX30mm

Compatibility:

Windows/Mac OS/Linux/Andriod

Color:

Black

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

2MP USB camera with Type-C

30fps USB camera for Windows Mac Linux

30mmX30mm USB camera with warranty

Product Description

30 * 30MM 2MP 1920 * 1080 Mini C-type Camera UVC Driver Free Safe CCTV ATM Booth

Product Overview

This high-performance USB camera features a CMOS sensor for excellent video quality, delivering 1080p Full HD resolution at 30fps. With plug-and-play Type-C connectivity, it requires no additional drivers and works seamlessly with computers, phones, and tablets. Ideal for machine vision, equipment monitoring, and various industrial applications.

Key Features

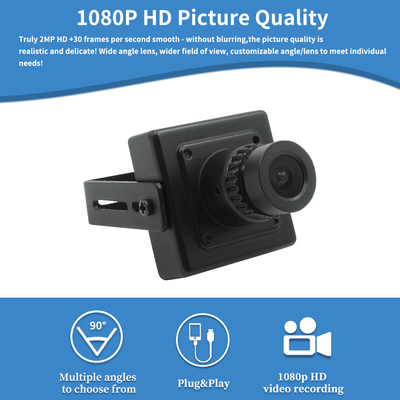

1080p Full HD resolution at 30fps for crisp, clear video

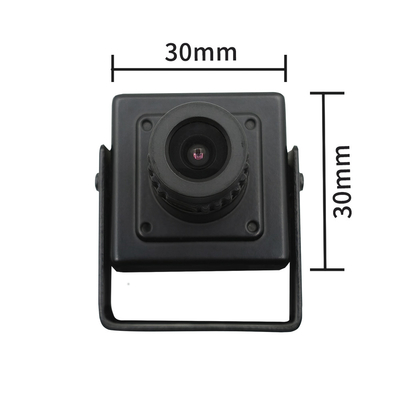

Compact 30mm*30mm design with 3.6mm lens

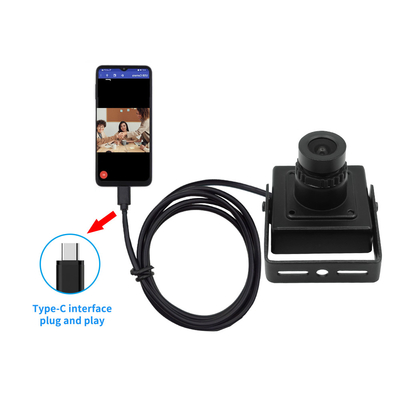

Plug-and-play Type-C interface - no drivers required
Wide compatibility with Windows, Mac OS, Linux, and Android systems
Advanced color reproduction technology for accurate imaging
Low power consumption (0.25 watts) with 5V DC operation
Wide 95° viewing angle for comprehensive coverage

Technical Specifications

Sensor	1/2.9" CMOS
Resolution	2MP (1920x1080)
Frame Rate	30fps at 1080p
Compression Format	MJPG/YUV2
Interface	Type-C USB
Power Requirements	DC 5V, 0.25W
Operating Temperature	<70°C
Lens Specifications	Effective length: 3mm Focal length: 2.2 Distortion: <-1.0% Component: 4E+IR Angle: D=95° H=83° V=55°
Supported OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Applications

This versatile camera module is suitable for various industrial and commercial applications including:

ATM and banking systems
Medical equipment and hospital inspection reports
Vending machines and digital signage
Industrial automation (robots, cranes, placement machines)
Welding equipment and flame monitoring
Law enforcement equipment
Security surveillance systems
Embedded device integration

Product Images

Customization Options

Model: HCU-FK302AZ
Place of Origin: Shenzhen, China
Minimum Order Quantity: Negotiable
Delivery Time: 2-3 weeks
Supply Capacity: 100,000 units/month
Packaging: Anti-static carton bag (110mm*93mm*41mm)

We offer various customization options including different resolutions (1MP to 12MP), focus types (fixed or auto), and product sizes. Additional module types available: AHD, CVBS, wired network, and wireless wifi camera modules.

Support & Service

Our products come with comprehensive technical support including installation assistance, software updates, and maintenance services. Our experienced engineering team is available to help with any technical questions or integration challenges.
