5MP IP Camera With Infrared Night Vision Suitable For Elevator Installation

Brand Name:	HCVsight
Model Number:	HCW-DT305
MOQ:	50 pieces
Price:	US$81.59/50~199 pieces US$79.99/200~499 pieces US$75.99/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Pixel:

5MP

Frame Rate:

2592x1944@30fps

Intenface Type:

Network RJ45

Microphone:

Built-in/External

Sensor:

1/2.9" CMOS

Night Vision:

Support

Compression Format:

H.265

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

5MP IP Camera

2.1mm IP Camera

Audio IP Camera

Product Description

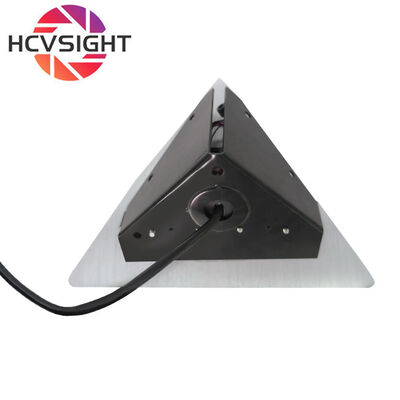

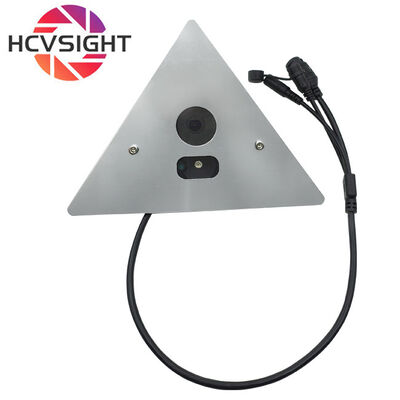

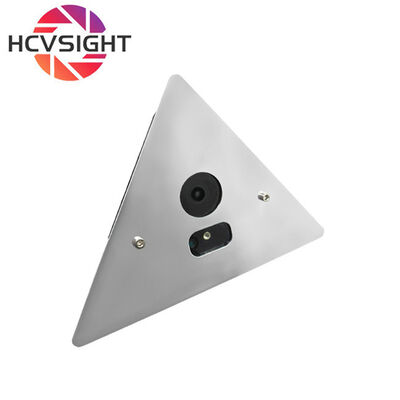

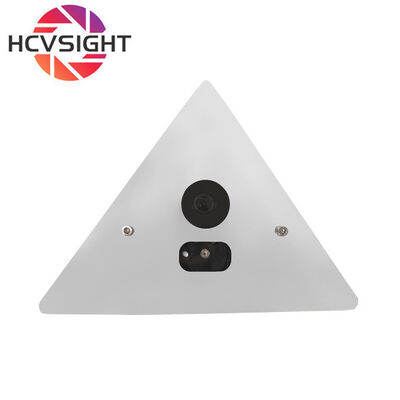

5MP IP Camera With Infrared Night Vision Suitable For Elevator Installation

This 5-megapixel high-definition infrared night vision network camera, with its 100 ° wide angle lens, excellent low light imaging capability, and flexible audio support, is an ideal choice for monitoring compact spaces such as elevator cars and indoor corners. It provides stable and reliable network connection through RJ45 Ethernet cable, outputs sharp and clear high-resolution images, ensures 24-hour blind spot monitoring of key areas, and safeguards business and home security.

Technical Specifications

Parameter	Value
Sensor	1/2.9" CMOS
Resolution	5MP
Compression Format	H.265
Frame Rate	2592x1944@ 30fps
Audio	Support
Operating Voltage	DC 12V
White Balance	Automatic
Operating Temperature	<70°C
Storage	Support Cloud Storage/TF Card( Max 128GB)
Model Number	HCW-DT305
Interface	Network Interface
Network	2.4G WIFI + RJ45 Network Port
Night Vision	Infrared
Lens	EFL: 2.8mm F.ON: 2.0
FOV	100°

Key Features & Applications

5 million ultra clear image quality: resolution up to 2592x1944@30fps Present clear images with rich details.
100 ° wide-angle field of view: The 2.8mm lens can easily cover narrow spaces such as elevators and small rooms.
Full color infrared night vision: Equipped with built-in infrared light, it can present clear black and white images even in low light environments.
Built in microphone: supports environmental audio capture, enabling synchronous recording of audio and video.
RJ45 wired connection: Provides stable and efficient network transmission, avoiding wireless signal interference.
Professional elevator specific design: The compact body perfectly adapts to the installation of elevator corners without affecting normal operation.
Easy to install and configure: Supports ONVIF protocol, making it easy to connect to mainstream NVRs and monitoring platforms.

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Why Choose our IP Camera?

OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

Lens specification sheet:2.1mm Wide Angle Lens Specification.pdf
About our more products:Huachuang Finished Product List.xls
