T-shaped 3MP Mini WiFi Camera Module, 1080P Wireless IP Surveillance Camera

Brand Name:	HCVsight
Model Number:	HCW-CM183
MOQ:	50 pieces
Price:	US$43.99/50~199 pieces US$41.79/200~499 pieces US$37.69/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE、RoHS、FCC

Pixel:

3MP

Sensor:

1/2.8" CMOS

Product Size:

18mmx42mm

Lens:

90°（customizable）

Frequency Operating Voltage:

DC 12v

Network:

Wifi 2.4Ghz

Microphone:

Support

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

1080P WIFI Camera Module

90° Lens Angle IP Camera Module

12V Operating Voltage Wireless Camera Module

Product Description

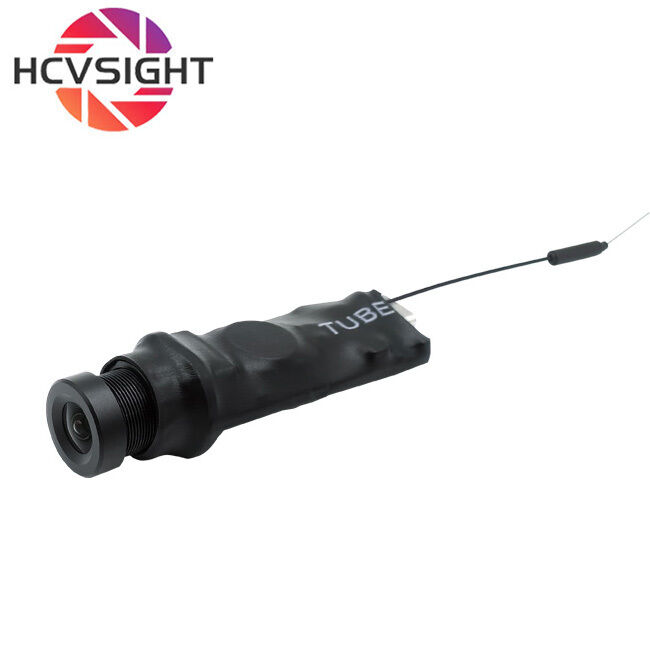

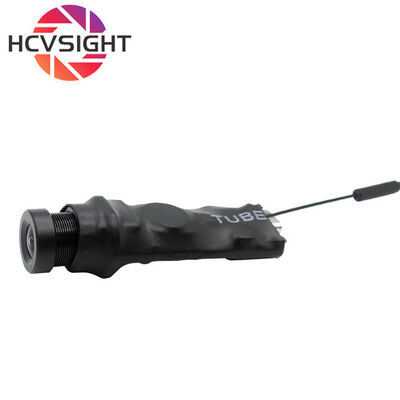

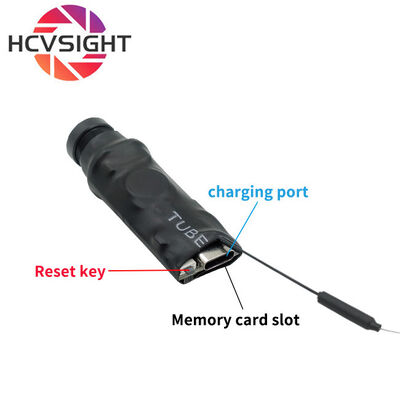

T-shaped 3MP Mini WiFi Camera Module, 1080P Wireless IP Surveillance Camera

The T-Shape 3MP Mini WiFi Camera Module is a high-performance, ultra-compact wireless IP camera module designed for industrial automation, smart homes, embedded systems, drones, and security monitoring. It supports 1080P high-definition video output and utilizes an advanced CMOS image sensor combined with a 90° distortion-free lens technology to ensure clear and stable video even in complex environments. It supports wuxWiFi connectivity for remote monitoring, real-time transmission, and access from mobile devices. Its compact size allows for easy embedding into various devices and systems, providing flexible installation solutions. Whether for smart security systems, industrial automation control, or drone monitoring, this camera module meets professional needs.

Key Features

1080P Full HD resolution: 3 megapixels deliver clear images and excellent detail.

Compact T-shaped design: Mini modular structure for easy embedding and installation.

3.6mm distortion-free lens: Provides a 90° field of view, covering a wider area without image edge distortion.

WiFi wireless connectivity: Supports H.265 encoding, eliminating the hassle of wiring.

Remote real-time monitoring: View live video streams anytime, anywhere via a mobile app.

Built-in microphone: Supports ambient sound capture, enabling simultaneous audio and video recording and monitoring.

Technical Specifications

Sensor	1/2.9"CMOS
Pixel	3MP
Compression Format	H.265
Frame Rate	1920×1080@25fps
Audio	Support
APP	V380 Pro App
Storage	Cloud / TF Card (Max 128GB)
Network	Wifi 2.4Ghz
Working Voltage	DC 12V

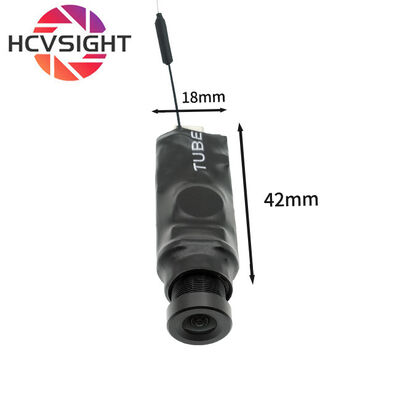

Product Size	18mmx42mm
Working Temperature	<70°C
Power Consumption	0.25W
Model	HCW-CM183
Lens Specifications	F.NO: 3.0mm Focal length: 2.2 Distortion: <-1.0% Component: 4E+IR
FOV	90°
Support	Android 4.0/iOS 8.0above

Professional Customization Services

We offer comprehensive OEM/ODM customization services to meet unique visual requirements:

Lens customization: Specific focal length, field of view angle, distortion control.
Customized casing: Dedicated casing, bracket, or fixing method based on device structure.
Cable and interface: Custom cable length and interface types.
Camera type customization: USB, AHD, CVBS, wired network, wireless WiFi cameras.

Application Fields

Machine vision, precision equipment monitoring, security systems, embedded access control, concealed monitoring, vehicle monitoring, smart home security, endoscopic imaging, laboratory monitoring, traffic monitoring, retail terminals, drone/robot vision, education/conference systems, and various embedded devices that require compact vision solutions.

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

Lens specification sheet:Specification for 3.6mm undistorted lens.pdf
About our more products:Huachuang Finished Product List.xls
