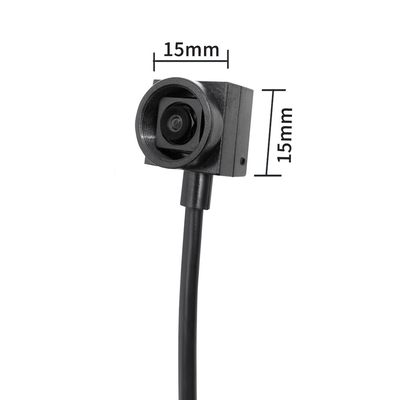

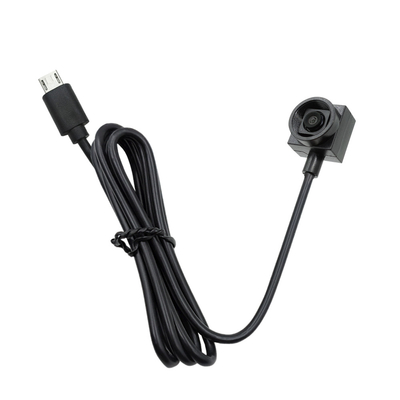

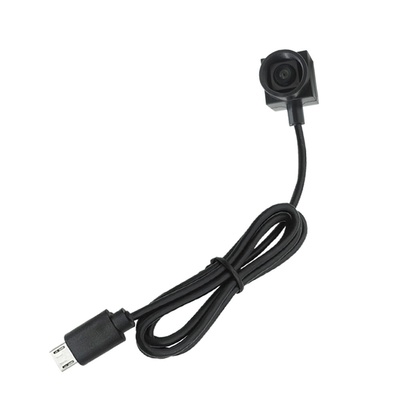

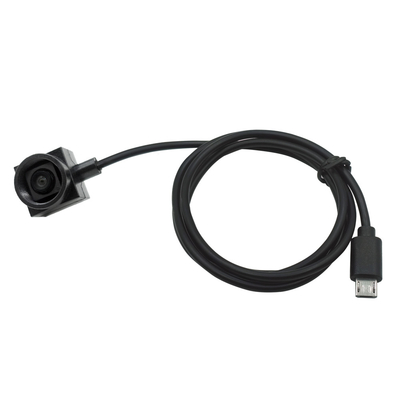

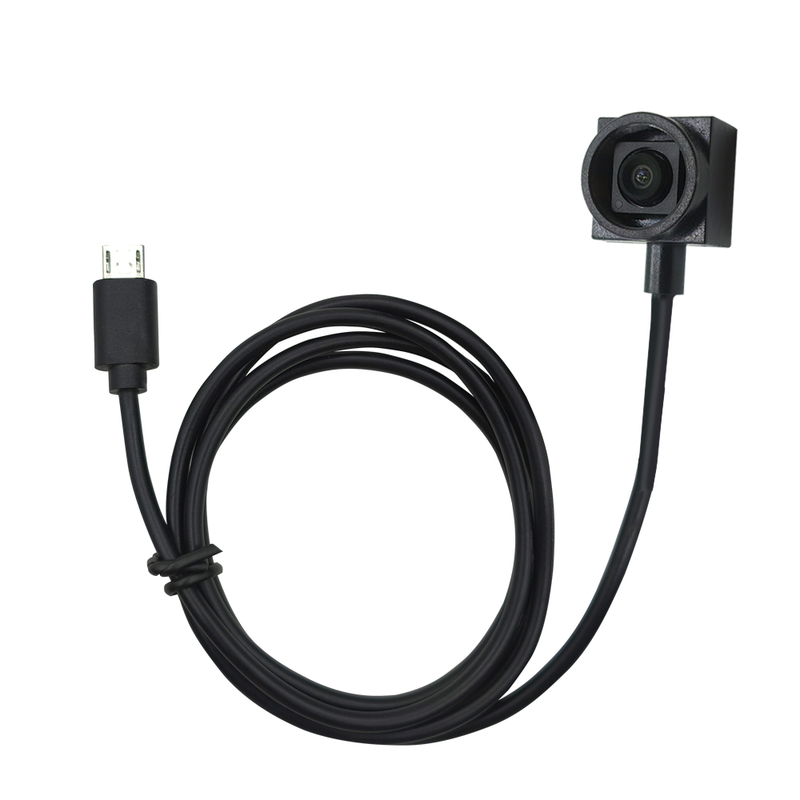

15*15mm HD 5MP Mini USB Camera With Fixed Focus And Wide Angle Driver-Free PC Webcam

Brand Name:	HCVsight
Model Number:	HCU-GJ155(AZ)
MOQ:	50 pieces
Price:	US$34.39/50~199 pieces US$32.69/200~499 pieces US$29.59/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/ pieces/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Product Type:

USB Camera

Pixel:

5MP

Product Size:

15mmx15mm

Lens Angle:

123°(customizable)

Audio:

Support

Interface Type:

Android Interface

Colour:

Black

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/ pieces/month

Highlight:

5MP USB camera with wide angle

15mmx15mm USB camera

123° wide angle USB camera

Product Description

15*15mm HD 5MP Mini USB Camera With Fixed Focus And Wide Angle Driver-Free PC Webcam

This is an extremely mini 5 million high-definition USB fixed focus camera, with a size of only 15x15mm, making it a compact invisible master in the industry. It adopts advanced 1/4 inch chips, combined with a 120 ° wide-angle lens, without the need to install any drivers, plug and play. The specially designed Android interface (Micro USB) can easily connect to PCs, laptops, smart TVs, and Android devices through an adapter cable, making it perfect for various scenarios such as video conferencing, online teaching, and security monitoring.

Specifications

Sensor	1/4"
Pixel	5MP
Compression format	MJPG/YUV2
Frame rate	2560X1440 @30fps
Audio	support
Power frequency working voltage	DC 5V
Product size	15mmx15mm
White balance	automatic
Working temperature	<70°
Power consumption	0.25w
Model	HCU-GJ155(AZ)
Interface type	Android interface
USB cable length	Default 1.2m
Lens	F.NO: 2.2 EFL: 1.9 Distortion: <-8.7% Component: 4E+IR Angle: 123°
Chip type	COMS
Support OS	Windows/Mac OS/Linux/Android

Core functions of the product

High definition imaging: 5-megapixel high-definition resolution (2560X1440@30fps) provides exquisite image quality and accurately captures details.
Exquisite body: 15x15mm size, easy to install and carry.
Plug and play: Android interface (or optional USB 2.0, TYPE-C), compatible with operating systems (Windows, Mac, Linux, Android, etc.), no need to install drivers, easy to develop and integrate.
Adjustable image parameters: Support adjusting exposure, white balance, gain, contrast, saturation and other parameters through software to adapt to complex lighting scenes.
Industrial grade wide-angle lens: focal length 1.9mm, fixed focus wide-angle 123°, wide field of view.
Audio: Built-in microphone, supports synchronous compression and transmission of audio and video.

Professional customized services

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

Lens customization: specific focal length, field of view angle, distortion control.
Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
Cable and Interface: Customize cable length and interface type (such as USB and type-c).
Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP).

Camera application field

Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring, vehicle driving recorder (DVR), small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, Advertising machine, all-in-one machine, intelligent electronic scale, automatic welding equipment, fire water gun, external law enforcement instrument, external camera for Android phone, computer camera, high-speed camera etc.
