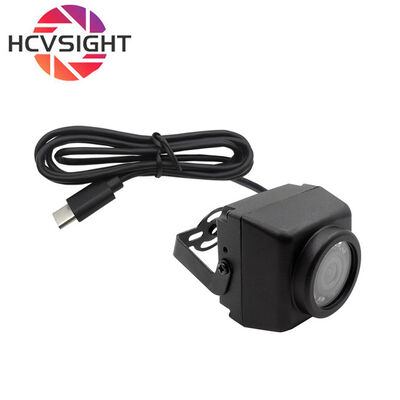

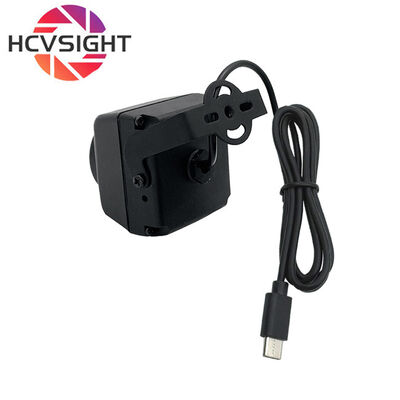

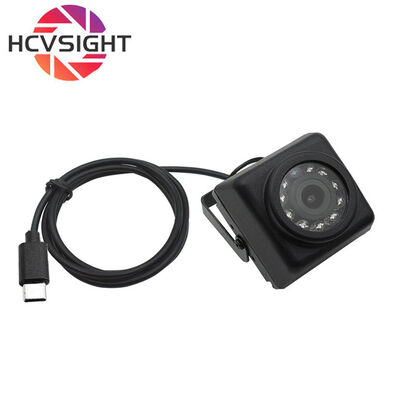

2MP HD IR Night Vision Vehicle Monitoring Camera Suitable For Fleet Management

2MP HD IR Night Vision Vehicle Monitoring Camera Suitable For Fleet Management

Brand Name: HCVsight
Model Number: HCU-CZ482TC
MOQ: 50 pieces
Price: US$41.29/50~199 pieces US$39.22/200~499 pieces US$35.29/500~999 pieces
Payment Terms: T/T
Supply Ability: 100,000 pieces per month
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE、RoHS、FCC
Product Type:
USB Camera
Pixel:
2MP
Product Size:
48mmx48mm
Lens Angle:
90°(customizable)
Interface Type:
Type-C
Night Vision:
Support(940 IR LED)
Power:
DC 5V
Warranty Period:
1 Year Warranty
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100,000 pieces per month
Highlight:

850nm Infrared LEDs USB Camera

,

HD Car Surveillance Camera

,

Square Metal Shell Infrared Night Vision Camera

Product Description
2MP HD IR Night Vision Vehicle Monitoring Camera Suitable For Fleet Management
This 2-megapixel high-definition infrared night vision vehicle surveillance camera features 2-megapixel high-definition image quality and is equipped with 10 940nm infrared LEDs, enabling it to clearly capture details even in complete darkness. The camera utilizes a rugged metal housing, providing exceptional durability, clear image quality, and reliable low-light performance even in harsh environments. It is suitable for vehicle security, fleet management, parking systems, taxi monitoring, in-vehicle DVRs, and industrial transportation solutions.
Specifications
Sensor 1/2.9"CMOS
Pixel 2MP
Compression format MJPG/YUV2
Frame rate 1920X1080@30fps
Audio optional
Power frequency working voltage DC 5V

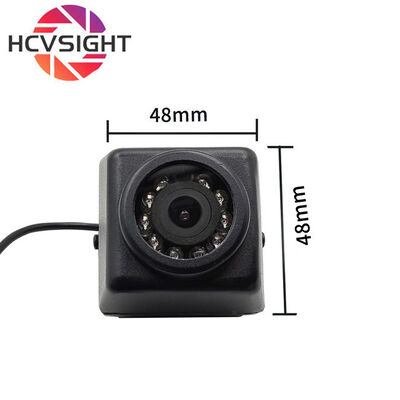

Product size 48mmx48mm
White balance automatic
Working temperature <70°
Power consumption 0.25w
Model HCU-CZ482TC
Interface type Type-C
Lens F.NO: 3.6mm
Focal length:3
MOD:0.2m
Component:6E
FOV 90°
Night Vision support(940 IR LED)
Support OS Windows/Mac OS/Linux/Android
Core Features

High-definition imaging: 2-megapixel high-definition resolution of 1920x1080@30fps delivers exquisite image quality and accurately captures details.

Industrial-grade protection: The 48x48mm square metal housing provides superior shock, dust, and impact protection, ensuring durability.

Plug and play: Plug and play via Type-C interface (or optional USB 2.0, Type-C, OTG), compatible with multiple operating systems.

Flexible lens options: Supports various lens options to meet different working distances and field-of-view requirements.

Adjustable image parameters: Supports software adjustment of exposure, white balance, gain, contrast, and saturation.

Night vision function: Built-in 10 940nm infrared LEDs enable clear nighttime recording through intelligent night vision.

Application Fields

This infrared car surveillance camera is widely adopted in:

  • Smart transportation projects

  • Fleet management companies

  • Ride-hailing and taxi compliance monitoring

  • Logistics trucks and cold-chain vehicles

  • School buses and passenger transport

  • Industrial machinery monitoring

  • Parking lot security systems

  • Police vehicle DVR solutions

  • OEM automotive manufacturing

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
  • Lens customization: specific focal length, field of view angle, distortion control.
  • Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
  • Cable and Interface: Customize cable length and interface type.
  • Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP,16MP).

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
