Mini 1080P AHD CMOS Infrared Camera With 850nm Night Vision For Security

Brand Name:	HCVsight
Model Number:	HC-ACZ482
MOQ:	50 pieces
Price:	US$36.99/50~199 pieces US$35.19/200~499 pieces US$33.39/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Pixel:

2MP

Working Voltage:

DC 12V

Power System Requirements:

1920X1080P@25fps

Sensor:

1/2.8" CMOS

Signalic Range:

AHD

Dimensions:

48mmX48mm

Warranty Period:

1 Year Warranty

Night Vision:

10 850nm Infrared LEDs

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

Mini 1080P AHD security camera

AHD CMOS infrared camera

850nm night vision camera

Product Description

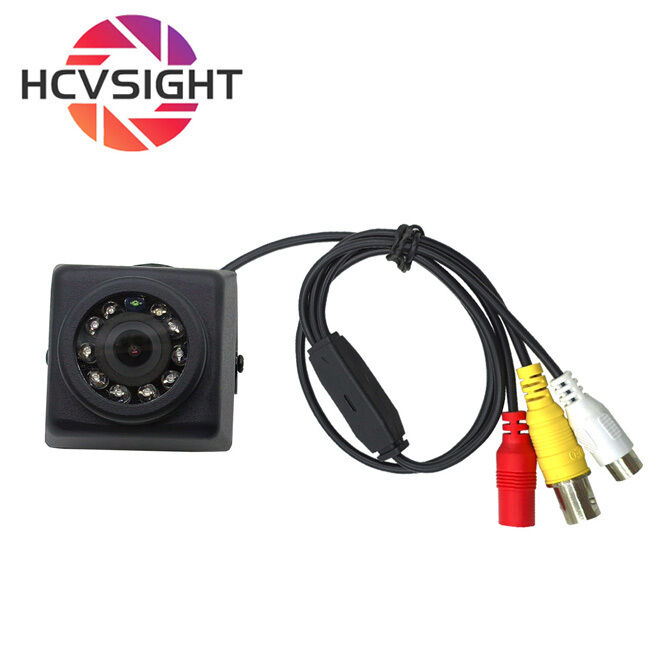

Mini 1080P AHD CMOS Infrared Camera With 850nm Night Vision For Security

This mini 1080P AHD CMOS infrared camera features a high-sensitivity CMOS camera module that captures clear images in both bright and low-light conditions, while its 850nm infrared night vision ensures excellent visibility at night without producing glare. Designed for OEMs, security integrators, and industrial solution providers, it meets their needs for compact, reliable, and easy-to-integrate analog HD cameras in professional surveillance applications. Unlike consumer-grade products, this camera offers stable performance, durability, and consistent image quality, making it ideal for factory monitoring, warehouse security, ATM terminals, vehicle systems, machine vision support, and retail surveillance environments.

Key Features

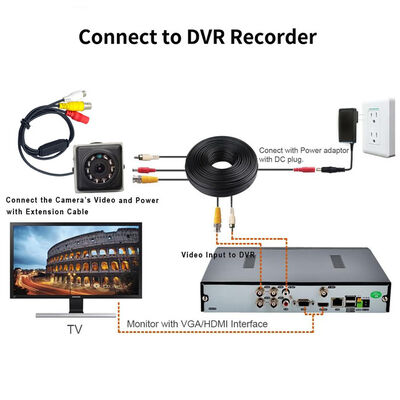

1080p Analog HD Performance: This 1080p AHD camera transmits clear, low-noise video via coaxial cable, is easy to install, and is compatible with standard DVR camera systems.
Powerful 850nm Infrared Night Vision: Its advanced 850nm infrared camera design ensures it functions as a professional night vision and infrared surveillance camera, maintaining clear images even in near-total darkness.
Stable and Durable for Industrial Environments: Designed for continuous operation, this camera operates reliably even in high-temperature, dusty, and vibrating environments—an essential choice for industrial and factory surveillance camera applications.
Wide viewing angle (90° diagonal) for comprehensive coverage.

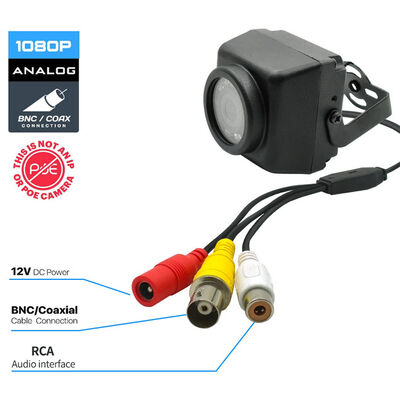

BNC video interface: standard composite video output, compatible with traditional monitoring systems.

Technical Specifications

Parameter	Specification
Sensor	1/2.8" CMOS
Resolution	2MP (1920*1080P@ 25fps)
Signal Type	AHD
Lens	EFL: 3mm F/NO: 2.2 Distortion: <1.0% Viewing Angle: D=90°
Material	Metal
Product Model	HC-ACZ482
Night Vision	10 850nm infrared LEDs
Interface	BNC

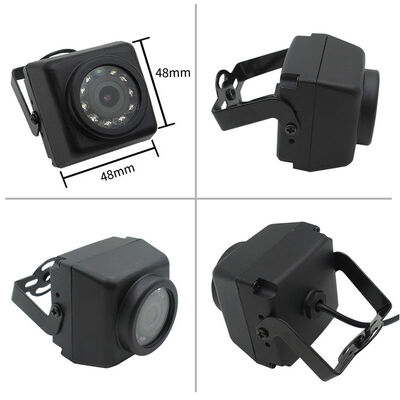

Dimensions	48mm×48mm
Power Supply	DC 12V

Applications

This industrial surveillance camera is ideal for various machine vision and equipment monitoring applications including:

Fire water cannon monitoring and positioning
Industrial automation (welding equipment, patch machines)
Financial equipment (ATMs, queuing systems)
Medical devices (inspection report systems)
Vending machines and digital signage
Robotics and crane systems
Flame monitoring in power plants

Frequently Asked Questions

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
- Embedded cameras for face/object/barcode recognition
- Industrial cameras for automated inspection and measurement
- Security vision cameras for surveillance and monitoring.

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A: In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

About our more products: Huachuang Finished Product List.xls
Lens specification sheet: Specification for 3.6mm lens.pdf
