4MP Industrial-grade Mini Square Wired Camera Suitable For Machine Vision

4MP Industrial-grade Mini Square Wired Camera Suitable For Machine Vision

Brand Name:	HCVsight
Model Number:	HC-IP4MP3.6-36
MOQ:	50 pieces
Price:	US$46.99/50~199 pieces US$44.59/200~499 pieces US$42.39/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Pixel:

4MP

Intenface:

RJ45

Lens:

90°（Customizable）

Sensor:

1/2.8”CMOS

Frame Rate:

25fps

Product Size:

36mmX36mm

Power Supply:

DC 12v

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

4MP industrial-grade wired camera

mini square machine vision camera

wired camera for machine vision

Product Description

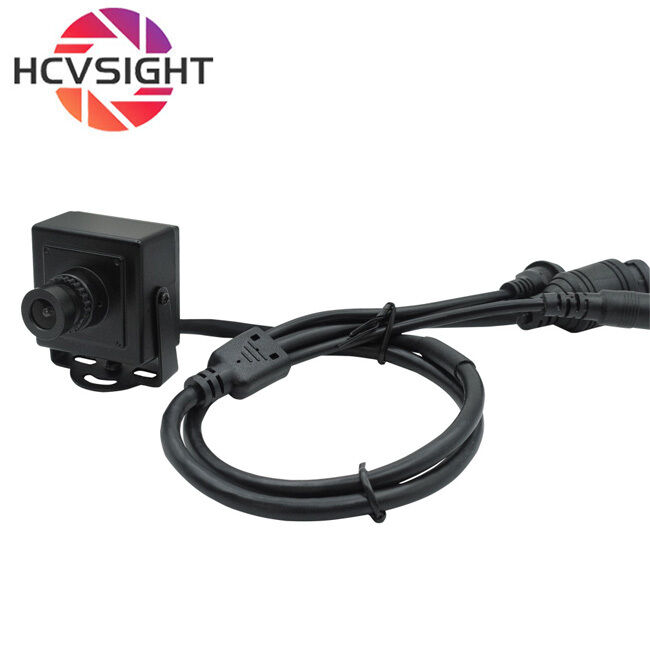

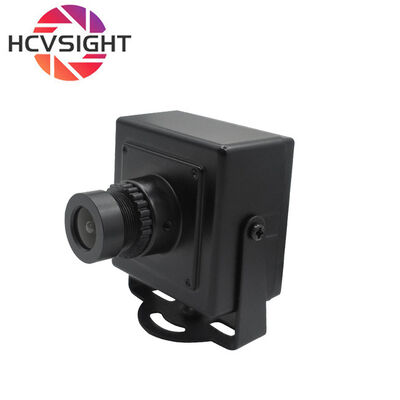

4MP Industrial-grade Mini Square Wired Camera Suitable For Machine Vision

This 4-megapixel industrial-grade mini square wired camera module is a compact, high-performance imaging solution designed for original equipment manufacturers (OEMs), system integrators, and industrial solution providers who require stable image quality, ease of integration, and long-term reliable supply.

Featuring a 4-megapixel CMOS image sensor, this mini square camera module delivers clear image output while maintaining a small form factor, making it ideal for machine vision systems, embedded devices, industrial inspection equipment, smart terminals, and security surveillance solutions.

Unlike consumer-grade cameras, this wired camera module is designed for continuous operation, customized integration, and industrial-grade stability, supporting both USB camera applications and on-board camera integration.

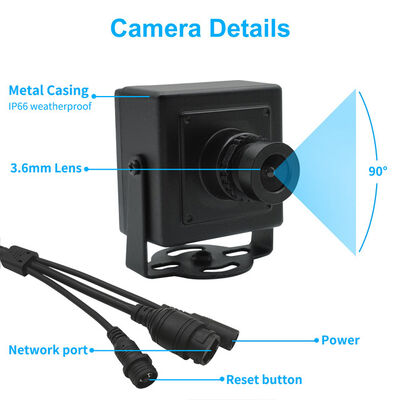

Technical Specifications

Parameter	Value
Sensor	1/2.8" CMOS
Pixel	4MP
Compression format	H.265
Frame rate	2560X1440P 25fps
Audio	Not supported
Operating voltage	DC 12v

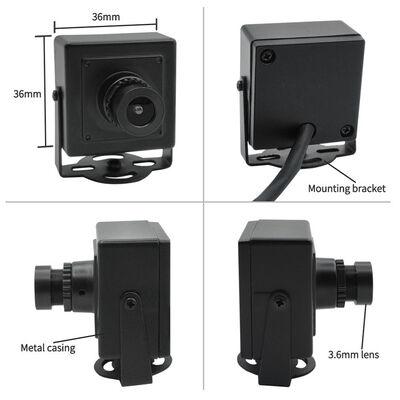

Product dimensions	36mm X 36mm
FOV	90°
Model No	HC-IP4MP3.6-36
Interface type	RJ45

Key Features

High-resolution imaging for industrial-grade precision: This module is equipped with a 4MP camera sensor, providing highly detailed images. The higher resolution significantly improves detection accuracy and system reliability compared to standard 2MP camera modules.
Compact, mini-square design for easy integration: The mini-square camera housing is optimized for space-constrained designs, reducing mechanical limitations and shortening product development cycles for OEM customers.
RJ45 interface for stable signal transmission: As a network industrial camera, it ensures stable data transmission, low latency, and strong anti-interference capabilities.

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

Lens customization: specific focal length, field of view angle, distortion control.
Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
Cable and Interface: Customize cable length and interface type.
Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP, 16MP).

Frequently Asked Questions

Q: Can we purchase samples?

A: Sure, we offer flexible procurement and samples: sample procurement (1-50 pieces) supports rapid testing and reduces development risks. Bulk purchases can enjoy price tiered discounts and support long-term cooperation.

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including: Embedded cameras for face/object/barcode recognition, Industrial cameras for automated inspection and measurement, Security vision cameras for surveillance and monitoring.

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize: Resolution (1MP ~ 12MP+), Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.), Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.), SDK Support (Provides software support for secondary development and system integration), Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs), Module Solutions (Customizable embedded camera modules suitable for different application scenarios).

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A: In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
